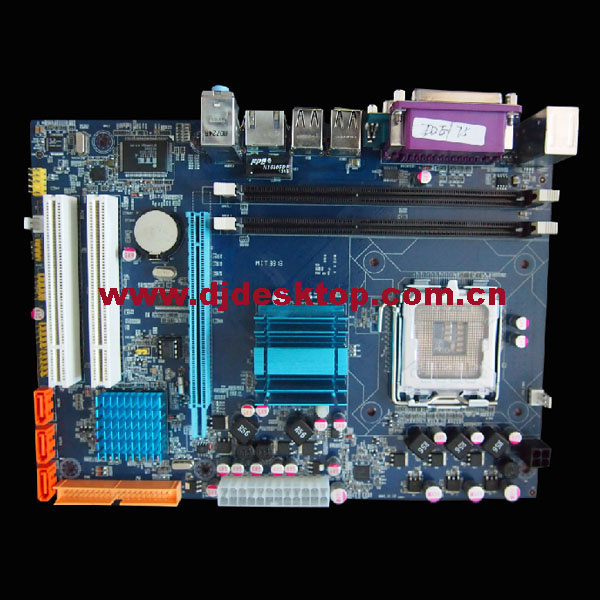

945gm-775 with 533MHz/800MHz/1066MHz Host Bus Frequency Tested E2200 Serial CPU Motherboard

Product Specifications

Prod Model:	945GM-775
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	945gm-775
Northbridge:	Intel 945gm Chipset
Southbridge:	Intel+Ich6
BIOS:	8m Flash ROM
Size:	240mm X185mm
Shipping Way:	DHL /UPS / FedEx
Shipping Time:	2-4 Working Days
Payment:	Paypal/ T/T/ Wester Union
Products Logo:	Shenzhen, China
Origin Of Place:	Shenzhen, China
Main Chipset:	Intel
Structure:	ATX
Memory:	DDR2
CPU Socket:	LGA 775

Product Description

945GM-775 with 533MHz/800MHz/1066MHZ HOST BUS Frequency tested E2200 SERIAL CPU

Supports Intel Celeron D  SOCKET 775 CPU

Supports 533MHz/800MHz/1066MHZ HOST BUS Frequency tested E2200 SERIAL CPU

Supports Intel Pentium HT (Hyper Threading Technology) CPU

Chipset

Northbridge: Intel 945GM Chipset

Southbridge: Intel+ICH6

Memory

Provides Two 240 pin DDRII slots

Supports 2*DDRII 800/667/533 Memory(MAXIMUM 2GB RAM MEMORY)

Graphics

Intel Graphics Media Accelerator 950

Expansion Slot

1*PCI Express X16 slot

2*32-bit PCI slots 2.2 specification compliant

LAN

Onboard RTL8105 LAN Card

Sound Card

Onboard HD AUDIO Specification compliant

IDE

Provides 1 channel connecting for IDE drives

Supports Ultra ATA66/100/133 synchronous DMA modes

SATA

2*SATA2 ports

I/O Ports

1*serial port

1*parallel port, supports EPP/ECP/SPP transfers

4*USB ports

1*PS/2 Keyboard port

1*PS/2 Mouse port

1*VGA PORT

1*Multiple stereo( Mic In,Line In,Line Out jack)

1*RJ45 PORT

Onboard Ports

20 PIN ATX POWER PORT

4 PIN ATX 12V POWER PORT

4*USB 2.0 PORTS

1*CPU fan connector

1*SYS_FAN CONNECTOR

1*J_COM

1*F_AUDIO PORT

BIOS

8M FLASH ROM

SIZE

240mm x185mm

PACKING

20PCS IN ONE CARTON
