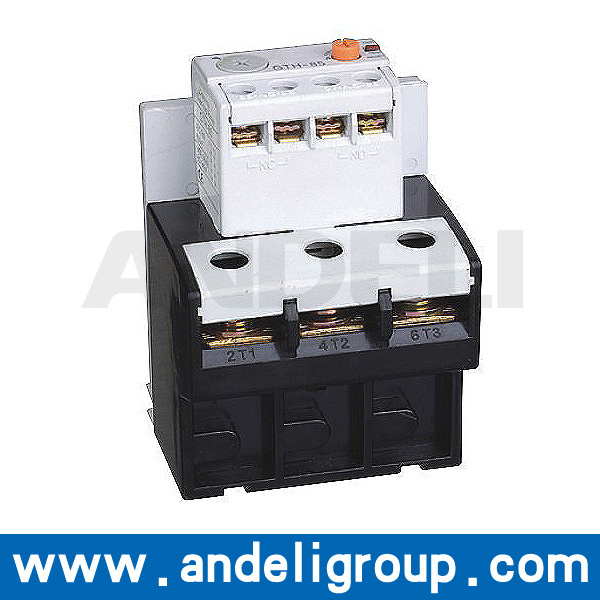

Andeli Group Co., Ltd. >> a. C. Thermal Relay Control Relay (JR30-85)

a. C. Thermal Relay Control Relay (JR30-85)

Name: a. C. Thermal Relay Control Relay (JR30-85)
Brand: China-Manufacturer-Directory.com
SKU: 739329095
Availability: InStock
Rating: 4.5 (46 reviews)

Supplier:	Andeli Group Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	JR30-85
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current:	0.1-85A

Product Description

Why choose us?

1. 20 years - Andeli Group Co.,Ltd is founded in 1993.
2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3. 300 cooperating companies - We have over 300 cooperating companies.
4. 3000 workers - We have over 3000 workers.
5. USD150,000,000 - The total assets is USD150,000,000.
6. 235,000 square meters - The area of Andeli is 235,000 square meters.
7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...

Application

JR30 series thermal relay is used in the circuit of 50/60Hz, rated insulation voltage 660V, rated current 0.1-85A for protecting the phase break when the electric motor is overloaded. Therelay has different mechanism and temperature compensation. It can be plugged in CJX5 seriesAC contactor. The product conforms to IEC60947-4-1.

Dimension

About us

Ratings	Type	(JR30-22)Ranges			(JR30-40)Ranges			(JR30-85)Ranges
Ratings	Nominal current	Min.	Mid.	Max.	Min.	Mid.	Max.	Min.	Mid.	Max.
Rated current(A)	0.14	0.1	0.14	0.16
	0.21	0.16	0.21	0.25
	0.33	0.25	0.33	0.4
	0.52	0.4	0.52	0.63
	0.82	0.63	0.82	1
	1.3	1	1.3	1.6
	2.1	1.6	2.1	2.5
	3.3	2.5	3.3	4
	5	4	5	6	4	5	6
	6.5	5	6.5	8	5	6.5	8
	7.5	6	7.5	9	6	7.5	9
	8.5	7	8.5	10	7	8.5	10	7	8.5	10
	11	9	11	13	9	11	13	9	11	13
	15	12	15	18	12	15	18	12	15	18
	19	16	19	22	16	19	22	16	19	22
	22				18	22	26	18	22	26
	30				24	30	36	24	30	36
	34				28	34	40	28	34	40
	42							34	42	50
	55							45	55	65
	65							54	65	75
	74							63	74	85
Element No.	2 heaters	Standard			Standard			Standard
Element No.	3 heaters	Option			Option			Option
Aux. Contact		1NO 1NC			1NO 1NC			1NO 1NC
Reset type		Auto/Manual			Auto/ Manual			Auto/Manual
Power consumption		1.8VA/heater			1.8VA/heater			1.8VA/heater
Separate mounting unit		AZ-22H			AZ-40H			AZ-85H
Other model		JR30-22/3			JR30-40/3			JR30-85/3
		JR30-22			JR30-40			JR30-85
		JR30-22/L			JR30-40/L			JR30-85/L
Applied contactors		CJX5-9, 12, 18, 22			CJX5-32, 40			CJX5-50, 65, 75, 85

Established in 1993, ANDELI Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment. ANDELI Group owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE and over 300 member enterprises. "ANDELI" trademark is identified as one of the Chinese well-known trademarks. ANDELI Group ranks among top 500 in electric industry in China and our products are granted the title of the national products exempt from inspection.

With a workshop covering more than 27, 000 square meters, we are able to supply various circuit breaker, MCB, MCCB, RCCB, contactors, relays, fuse, transformer, voltage stabilizer, switching power supply, meters, solar products, welder and other electric products.

Moreover, with over 60 series and more than 2, 000 specifications, the annual output volume has reached USD24, 000, 000 in 2013. ANDELI regards quality of products as life. Our company is certified with ISO9001 and we have obtained CCC (China Compulsory Certification), RoHS, CCEE, CE, CB, SIMKO and KEMA certificates.

Through outstanding performance and excellent reputation, ANDELI has won many national awards and been recognized as one of the distinguished brand name in its local market. In the future, ANDELI will continue ensuring that our products meet the expectation of our customers with respect to product quality, and pursuing advance to integrative value of enterprise and sustainable growth.

Providing quality products, excellent service, competitive price and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
