| Supplier: | Shanghai Hitech Instruments Co., Ltd. |
|---|---|
| Price: | US $ 3243/Set |
| Min Order: | 1/Set |
| Quantity:: | |
| Trade Terms: | FOB,EXW,CIF |
|
|
| Prod Model: | Master-S |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Source Water: | Tap Water |
| Outlet: | RO Water, up Water |
| Heavy Metal Ions(Ppb): | <0.1ppb |
| Total Organic Carbon(Toc): | <10ppb |
| Microbes/Bacteria: | <1cfu/Ml |
| Particulate(>0.22um): | <1/Ml |
| Dimension/Weight: | Lengthxwidthxheight:50X36X54cm/ About22kg |
| Power: | 100-250V, 50Hz/120W |
| Type: | Separating Plant |
| Object: | Water |
Performance characteristics
Automatic micro-computer system, multi-menu operating,
Super-large LCD display, the resolution is 240*128, animation mode display.
3 road on-line water monitoring, monitor the inlet water, RO water and ultra purification water quality
Automatic RO membrane antiscale flush program, prolong RO membrane life-span
Fault automatic detection, provide security guarantees
The system setting are protected by the password, prevent unauthorized change
can set pretreament, RO membrane, UV lights and ultra purified column life, show the with and remaining life of consumables
Various specifications storage barrels can be selected to meet diffierent needs
Integration plastic molding chassis, human body engineering design, accor with GLP standard
All lines have been NSF approval, new fast insert connector, replace and maitain the filter column conveniently
The KDF filter column can acheive 1 year without replacement, operation cost reduction.
The U. S. DOW DOW or fluid FCS produced, realized the the combination of RO membrane long life with high quality water.
The original import nuclear level resin, always guarantee top water quality
0.45+0.1µmimport PES polyether sulphone composite membrane filter terminal aseptic filter, assuring water quality aseptic
Standard configuration Host(including i set of purification column)+15 liters pressure barrel+accessorry bag
After-sales
· The products customers buy from our company enjoy repair service since the day of purchase. In on year from the purchasing day, our company is obliged to replace components free of charge due to non-human-behavior factors except:
(1). Damage caused by maloperation or use in abnormal situations.
(2). Disassembly any part of the machine or human-behavior damage.
(3). Not repaired by our serviceman.
As a rich experience of pure water system manufacturer, Hitech uphold the common development concept with customers, and provide professional pre-sales support and after-sales service. We promise:
Main Market
Asia, The Middle East, Eastern Europe and South Africa

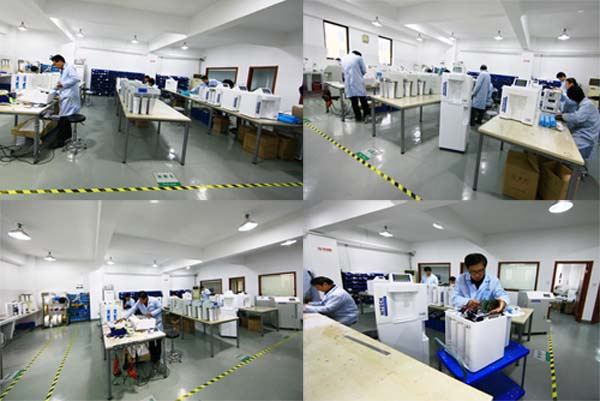

Production workshop
Package
Certificates
| Model | Standard | Eliminating endotoxin | Low TOC | Comprehensive | |||
| Master-S | Master-S UF | Master-S UV | Master-S UVF | ||||
| Master-S plus | Master-S plus UF | Master-S plus UV | Master-S plus UVF | ||||
| Flow procedure | PF+KDF+AC+RO+AC+DI+TF | PF+KDF+AC+RO+AC+DI+UF+TF | PF+KDF+AC+RO+UV+AC+DI+TF | PF+KDF+AC+RO+UV+AC+DI+UF+TF | |||
| Application |
GC,HPLC,IC,ICP PCR, weather analysis Amino acid analysis Reagent preparation |
Molecular biology Cell and tissue cultivation Life science, IVF electrophoresis |
HPLC,IC,ICP-MS TOC and organism analysis CF-AAS, toxicology study Environmental analysis |
HPLC,IC,ICP-MS,CF-AAS, Physics, electrochemistry, Molecular biology, Cell cultivation | |||
|
Ultrapure water quality |
Resistivity | 18.2MΩ.cm@25degrees celsius | |||||
| Heavy metal ions | < 0.1ppb | ||||||
| TOC | <10 ppb | <3 ppb | |||||
| Bacteria | <1CFU/ml | ||||||
| Endotoxin | - | <0.001EU/ml | - | <0.001EU/ml | |||
| Particle(>0.22μm) | <1/ml | ||||||
| RO water quality | < TDS(ppm, mg/l) of tap water×5% | ||||||
|
Technical specification |
Output(25 degrees celsius ) | 15 Liters/hour* (plus model:30 Liters/hour*) | |||||
| Flow rate | 2 liters/min(with pressure tank) | ||||||
| Pure water outlet | RO water, ultrapure water | ||||||
| Dimension/Weight | Length×Width×Height:50×36×54cm / 20-30Kg | ||||||
| Electric requirements | AC110-220V,50/60Hz,120W | ||||||
|
Control system |
Mode display | Power on, program, inlet rinse, producing, full, circle, regular outlet, disinfection, consumables replacing remind | |||||
| Safety | low pressure and full water alarm, password, auto-reset, outlet forbidden when alarm or disinfection | ||||||
| System monitor | Monitoring quality of feed water, RO water and ultrapure water, temperature, used and left time of consumables | ||||||
| Feed water requirement |
Tap water, inlet TDS<200 ppm,5-45degrees celsius, 1.0-4.0 kgf/cm 2 (if inlet TDS>200ppm, extra pretreatment is recommended) |
||||||
|
Purification system |
Pretreatment unit | 5μm spun fiber filter×1+Kinetic degradation fluxion filter×1+Granular active carbon filter×1 | |||||
| RO unit | 100 GPD RO membrane×1 ( Plus model:100 GPD RO membrane×2) | ||||||
| Subsequent unit |
Post active carbon filter×1+Ultrapure polishing resin cartridge× 4+(0.45+0.1) μm terminal filter×1 UV model:+Double wavelength(185&254)nm UV lamp cartridge×1 UF model:+5000 Doulton UF cartridge×1 UVFmodel:+Double wavelength(185&254)nm UV lamp cartridge×1+5000 Doulton UF cartridge×1 |
||||||
| Standard configuration | Main body(including:1 set cartridge)+4 gallon tank + accessory box | ||||||
