Product Specifications
| Prod Model: |
A-D6T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
a-D6t Series |
| Supply Voltage: |
+12~+32V |
| Power Consumption: |
+35+ Io Ma |
| Linearity: |
Less Than 0.5 |
| Response Time: |
Less Than 300ms |
| Galvanic Isolation: |
@ 50Hz,AC,1min 3kv |
| Courier: |
DHL, TNT, FedEx |
Product Description

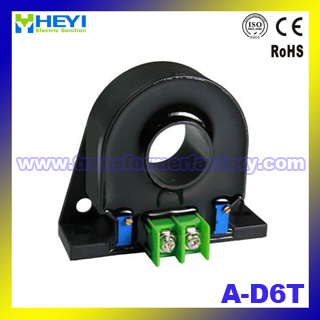

A-D6T series hall effect current Transmitter is an Closed loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of AC or pulsed currents.
| Electrical data (Ta=25ºC±5ºC) |
| Type | A-D6T-
100A | A-D6T-
200A | A-D6T-
300A | A-D6T-
400A | A-D6T-
500A | Unit |
| Rated current(Ipn AC) | 100 | 200 | 300 | 400 | 500 | A |
| Measure range(Ip AC) | 0-120 | 0-240 | 0-360 | 0-480 | 0-600 | A |
| Rated output | @Ip=±Ipn AC 4~20±1% | mA |
| Supply voltage | +12~+32V | V |
| Power Consumption | +35+ Io | mA |
| Zero current | @Ip=0 4±0.1 | mA |
| Offset drift | @ -40~+85ºC ≤±0.005 | mA /ºC |
| Output drift | @ -40~+85ºC ≤±0.005 | mA /ºC |
| Linearity | @Ip=0-±Ipn ≤0.5 | %FS |
| Response time | ≤300 | ms |
| Galvanic isolation | @ 50HZ,AC,1min 5 | KV |
| Bandwidth | 20~20000 | HZ |
·Variable speed drives
·Welding machine
·Battery supplied applications
·Uninterruptible Power Supplies (UPS)
·Electrochemical
Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.
1. When the current will be measured goes through a Transmitter, the current will be measured at the output end.(Note: The false wiring may result in the damage of the Transmitter)
2. The output amplitude of the transmitter can be adjusted according to users' requirements.
3. Custom design in the different rated input current and the output current are Transmitter.
·UL94-V0.
·EN60947-1:2004
·IEC60950-1:2001
·EN50178:1998
·SJ 20790-2000
| | Value | Unit |
| Operating temperature(TA) | -40 to +85 | ºC |
| Storage temperature (TS) | -40 to +125 | ºC |
| Mass(approx) (M) | 260 | g |
