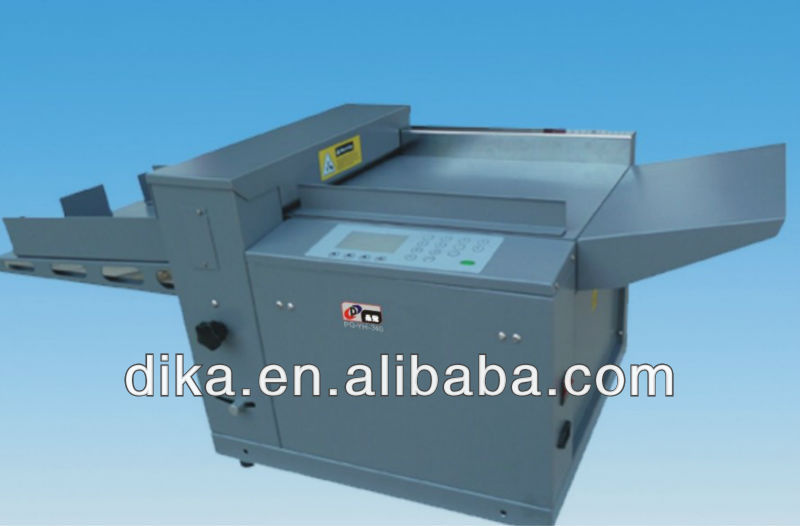

A3 Size Automatic Paper Creasing Machine

Product Specifications

Prod Model:	PG-YH-340
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Automation:	Automatic
Type For Fold-bending Machine:	CNC Fold-bend Machine
Application:	Machinery & Hardware
Type:	Coiling Bending Machine
Type For Cutting Machine:	Creasing Machine

Product Description

Model 340 480
Paper feed Hand feed Hand feed
Feed speed 35-50ppm (single line, A4 paper, horizontal) 35-50ppm (single line, A4 paper, horizontal)
Paper size
Width: 30-330mm;
Length: 300mm
Width: 30-470mm;
Length 300mm
Min. Creasing spacing 0.8mm 0.8mm
Creasing lines
From 1 line to 16 lines at one pass From 1 line to 16 lines at one pass
Available cutter blade type Single line, double line, dotted line, cutting (optional) Single line, double line, dotted line, cutting (optional)
Power 120w/ 100w 120w/100w
Machine size 1200*470&420mm 1200*610*420mm
G. W. 70kg 98kg
