Shanghai Pripack Machinery Co., Ltd. >> A4 Copier Paper Cutting Machine (DTCP-A4)

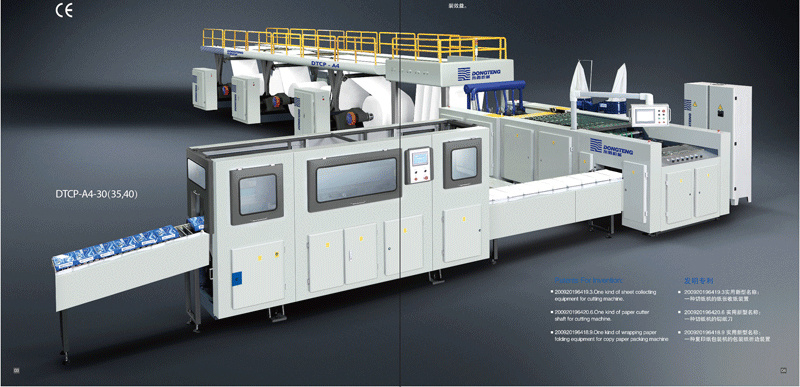

A4 Copier Paper Cutting Machine (DTCP-A4)

Name: A4 Copier Paper Cutting Machine (DTCP-A4)
Brand: China-Manufacturer-Directory.com
SKU: 728920265
Availability: InStock
Rating: 5 (122 reviews)

Supplier:	Shanghai Pripack Machinery Co., Ltd.
Price:	US $ 500000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	DTCP-A4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
White:	Fully Automatic
Process:	Paper Machine
Usage:	Office Paper Machine
Type:	Paper Cutting Machine
Automatic Grade:	Automatic
Certification:	CE
Computerized:	Yes

Product Description

A4 Cut Size Sheeting and Ream Wrapping Machine (DTCP-A4) is our fully new creation. Advance technology is adopted, enhancing production speed greatly. The cutting precision is highly accurate, and achieving international standards of full automatic production, the effect of saving labor and time are realized simultaneously.

Features and Structures:
It is a integration of electric automatization, PLC controlling system and mechanical automation. The whole process consists of paper roll unfolding, cutting, counting, transporting, reams exhausting, packaging, so that labor intensity is decreased

Main Technical Parameters

Model	DTCP-A4-5	DTCP-A4-10	DTCP-A4-20	DTCP-A4-30		DTCP-A4-35	DTCP-A4-40
Sheeting Unit
Unwinding Paper Reels	1	2	4	5		5	5
Number of Pocket	4	4	4	4		5	6
Max. Width of Paper Roll(mm)	846	846	846	846		1056	1266
Net Cutting Width(mm)	840	840	840	840		1050	1260
Diameter of Paper Roll(mm)	400-1200
Diameter of Core Chuck(mm)	3"(76.2mm) or 6"(152.4mm)
Paper GSM(gsm)	60-100
Length of Sheeted Paper (mm)	297
Paper Quantity per Ream (pcs)	0-500
Max. Ream Height(mm)	65
Working Speed of paper feeding(m/min)	180--220	180--220	180--220		200_260	200_260	200_260
Working Cutting Speed (times/min)	437	437	437		650	650	800--100
Ream Discharging speed (reams/min)	4--5	8_10	16--20		25_30	28_35	35--40
Max. Knife Loading(gsm)	400 (4×100)
Paper cutting accuracy(mm)	±0.2
Requirement for paper Reel	1.Stable Speed 2. Paper roll with no breakage 3. Qualified paper .
Transmission	AC Frequency conversion, stepless speed regulating
Main power source	380v/50Hz 3phase 4 wires
Control voltage	220V AC/22V DC
Total Power(Kw)	20	22	22		22	22	30
Overall dimension(m) (LxWx H)	13x2.75x2.1	16× 2.75× 2.1	16.5×2.75×2.1		18.5x2.75x2.1	20x2.96x2.1	20x2.96x2.1
Weight(T)	8	12	15		18	19	22
Wrapping Unit
Production Speed(reams/min)	4--5	8_10	16-20		25--30	28--35	35--40
Motor power(Kw)	6.5
Gluing power(Kw)	2.25	2.25	2.25		2.25	2.25	2.75
Compressed air(mpa)	0.6_0.8
Overwrapping Paper size(mm)(L ×W)	550-560×386
Overall dimension(m) (LxWx H)	3.4x3.3x1.6	3.4x3.3x1.6	4.53×3.05×1.5	4.53×3.05×1.5		4.53×3.05×1.5	4.53×3.05×1.5
Weight (T)	1.5	1.5	2	2		2	2

Founded in 2009, Shanghai Pripack Machinery Co., Ltd. Has continually focused on providing a wide variety of paper processing, printing and packaging machinery for customers around the world. Owning experienced professional employees and cooperating with many leading manufacturers in China, we are very familiar with international market of paper processing, printing and packaging and its trend of development. As a professional supplier, Pripack has always given great attention to quality control and personalized customer service. With high quality assurance, our products are popular in markets including Ukraine, Russia period, Chile, Brazil, Argentina, Mexico, Malawi, Pakistan, South Africa, to name a few. With products of high quality assurance and CE certificated, we are sure to provide our customers with the best products at competitive price.

Quality, considerate service and customer satisfaction are our goals. We always keep "Best Solutions & Professional Service" as our mission to offer customers support and solution. We will make you enjoy hi-efficiency and convenience during your purchasing and finally become your trustful business cooperator.

We are looking forward to doing business with you!

Main Products:

We provide a wide variety of paper processing, printing and packaging machinery for customers, to list some of them as follows.

If you need those kinds of machine, please feel free to contact us; We are looking forward to establish business relationship with you!
