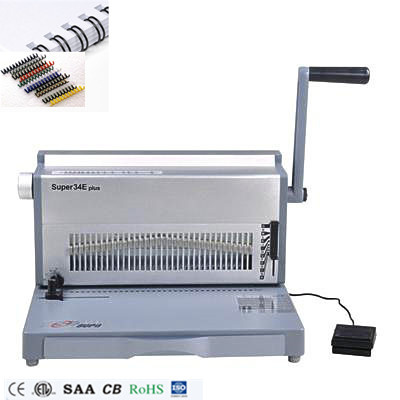

A4 paper size office Electric double wire and spiral binding machine(SUPER34E PLUS)Descreption:punch width:300mm( A4 paper)
Foot pedal operated electric punch
Die Disengagement Pins: For a clean and complete punching with different paper sizes.
Side Margin Control: Provides and evenly centered punch for all document sizes.
Diameter Scale: Measures document's thickness in order to select best wire size option.
Waste Drawer
Wire Closer Control: With continuous adjusting scale for an exact and secure closure every time.
Open Punching Throat & Continuous Punching Guide: For an easy alignment & punching of longer documents.
Punching Margin Control: Provides the correct punch margin depth for each coil size.
Heavy-Duty Punch Motor: Single punches up to 28 sheets of paper 80gsm28 Sheet Punch Heavy Duty Electric Wire Binding MachineSUPER34 PLUS is the ideal partner for commercial volume workloads.makes closing easy with its wire closer control that is continuously adjustable, Increase your punching speed with the electric foot pedal operated punch
Technology Date
|
|
| MaxBind Capacity (20# paper) | 148Sheets |
| Max Punch Capacity (20# paper) | 28Sheets |
| Binding Format | Wire |
| Punching Method | Electric |
| Binding Method | Manual |
| Punching Format (Vertical/Horizontal) | Horizontal |
| Punch and Bind Capability | Yes |
| Max Punch Length | 300mm |
| Max Binding Length | 300mm |
| Number of Punch Pins | 34 |
| Disengageable Die Pins | 34 |
| Waste Compartment | Yes |
| Side Margin Control | Yes |
| Motor | 110V,60HZ/120W 230V,60HZ/120W
|
Product DetailDcument masure:according to your files thickness to pick the right number of sheets to punch,don't exceed the maximum number of allowed Knob of wire size: can be adjustable according to your sheet thickness and wire size Selectable paper stop: according to you files' zise, select paper positon ,keeping sheet aligning Switch of foot pedal: punch easier and make your hands free Binding handle:ensure your sheets are on the same line and feed the sheet horizon ,push the binding handle Waste tray: large volume waste tray make you continuious work without empty punched times How to make a wire binding machine SUPER34 PLUS as a 2 in 1 machine ?
SUPER 34 PLUS is a manual wire punching and biniding machine normally .But how to make this machine more functionable ?
Today i would like to share Supu experience on it .
SUPER34 PLUS wire binding machine is for manual punch and manual wire--O binding machine .It can punch 3:1and binding cover for both 3:1 and :1 .So cutomer always buy this machine to make wire binding .

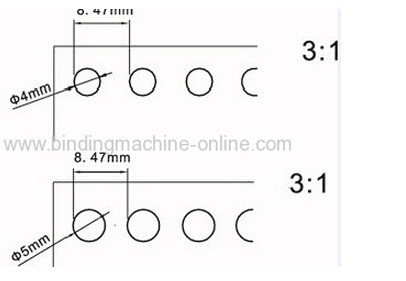

Normally customer will choose 3:1 4X4MM square hole for this kind of wire binding machine .But why not choose 3:1 4mm Round hole forwire binding machine ? Image that you are using 3:1 4MM round hole for this wire binding machine SUPER34 PLUS ,then you can binding doulble wire book biniding as usual ,but you can also bind single coiltoo ...
Then you can make manual coil punching and manual coil binding ..
Or You can make Manual punching and electric coil inserter by SUPU smart coil inserter &manual crimpers HD300
With this machine ,you can do electric coil inserter and manual crimper easily .
