Product Specifications
| Prod Model: |
Full Auto |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Method: |
Autoclaved Aerated Concrete |
| Capacity: |
50000-300000m³ Per Year |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Raw Material: |
Fly Ash, Sand, Lime, Gypsum |
| Body Material: |
High Grade Steel |
| Condition: |
New |
| Certification: |
ISO9001: 2000, CE |
| Type: |
AAC Block Making Line |
Product Description
ShanDong SUNITE Machinery Group Co., Ltd. Is a Chinese manufacturer of dedicated machinery for construction blocks and panels. Our company offers complete production lines for premium building components such as the autoclaved sand-lime brick, autoclaved aerated concrete block, and autoclaved aerated concrete / autoclaved lightweight concrete panel. Additionally, we provide various types of pressure vessels and block-making machines. By choosing SUNITE, customers can enjoy professional benefits with our dedicated services for design, installation, layout planning, technology transfer, and production guidance
Best Selling AAC Block Making Machine
Equipment list:
The equipment will be divided into two parts: Specialized equipment and universal equipment.
Specialized equipment includes:
1. Cutting equipment: Tilting crane, cutter...
2. Proportioning equipment: Electronic measuring scale, slurry beating machine, slurry storage tank, slurry mixer.
3. Pouring and autoclave equipment: Aluminum powder mixer. Pouring mixer, mould, side plate, autoclave truck, carrier car.
4. Conveying equipment: Semi-product crane, end product crane.
Universal equipment includes:
1. Pressure vessel equipment: Boiler, autoclave.
2. Crushing equipment: Ball miller, crusher.
3. Transportation equipment: Crane, lifting machine, feeder, belt conveyor, slurry pump, screw conveyor.
4. Enviornment protect equpment: Dust remover.
Other relative equipment as follows:
(1) cutting machine:
(2) tilting hanger, mould, side plate, hardening cart, mould frame, mould bottom, casting machine, hoist,

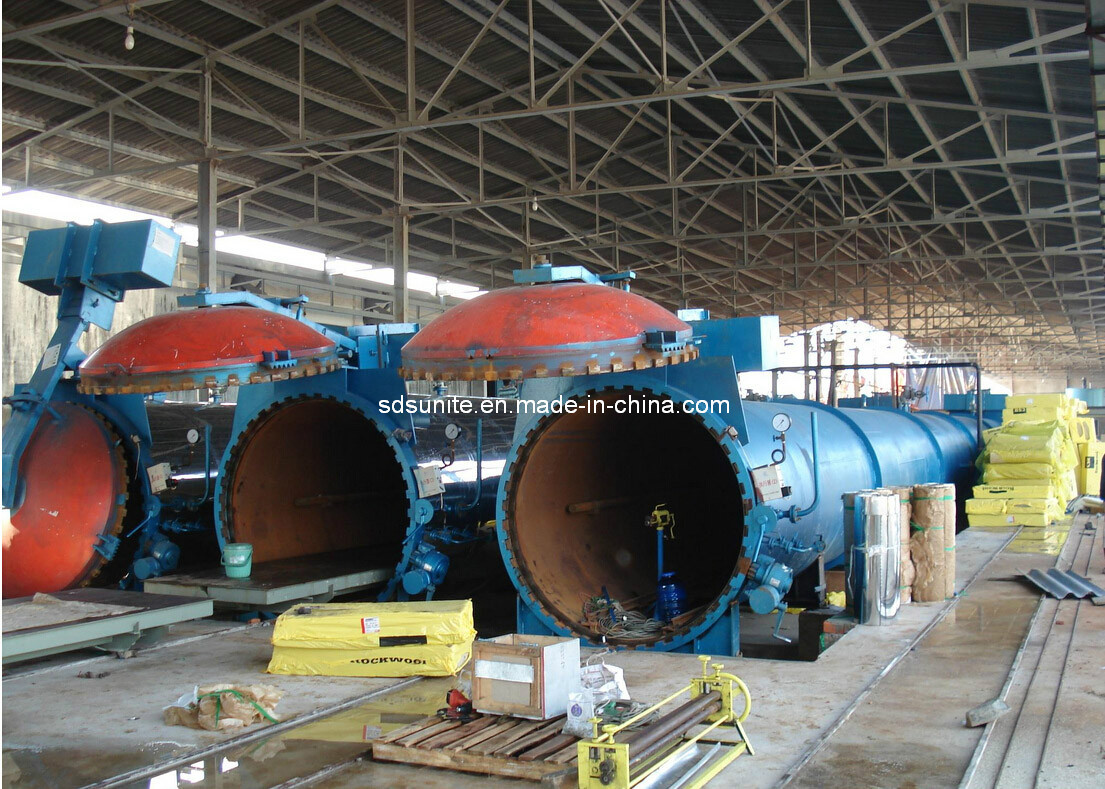

(3) autoclave, horizontal installation steam boiler
Main Process Flow of AAC Production line/AAC block
1. Raw material: Store the fly-ash (tailings etc), lime and gypsum after milling to the needed fineness (200 mesh)
2. Mixing the fly-ash, cement, lime, gypsum and water in the pot after batching.
3. Promote the slurry temperature to 40-50 degree by steam, and mill with aluminum powder for 1min.
4. Pour the slurry into the mould, and still in the curing room for frothing in 2-2.5h.
5. Cut it in to needed size by the cutter after the slurry approach the cutting intensity, and place the block on the trolley.
6. Autoclaved curing after the trolley enter into the autoclave (vacuum, rise the pressure, keep the pressure, reduce the pressure), keeping the constant pressure 1.2MPa. The whole process needs about 8 hours.
7. The products out of the autoclave are placed in a stack. We can recycle the scrap and the waste water from the whole production.
Dean
SHANDONG SUNITE MACHINERY Co., Ltd
*Tel: +86-539-3220858
*Mobile: 15963483923
*Web: Www. YGZT, net
|
Parameter Name |
Parameter Value |
|
Sand |
55-65% |
|
Cement |
10-20% |
|
Lime |
20-30% |
|
Gypsum |
2-3% |
|
Aluminum powder paste |
8(1/10000) |
|
Water & material rate |
0.65-0.75 |
|
Casting temperature |
35-38°C |
|
Aluminum mixing time |
30-40s |
Founded in October 1998, Shandong Sunite Machinery Co., Ltd. is a professional manufacturer of aerated concrete block equipment, aerated concrete wallboard equipment and autoclaved brick equipment in Shandong province.
With the full implementation of ISO9001: 2008 Quality Management System, Shandong Sunite Machinery was awarded with the title of Chinese Top Brand and Chinese Famous Brand and High-Quality Product in 2013. Besides, our company has also won several product patent awards.
Organizing technical personnel to study and absorb the knowledge and experience of the domestic and international advanced equipment as well as overcoming technical problems, Shandong Sunite Machinery Co., Ltd. Becomes the first professional manufacturer with the R&D, design and manufacturing abilities of aerated concrete equipment. Our company also establishes complete equipment inspection and detection systems and owns a total analysis laboratory, a physical detection laboratory and a simulation laboratory.
Our company has a professional customer service team to provide complete pre-sales, sales and after-sales services in terms of raw material test, site planning, equipment selection, design and installation of the production line, production guidance and so on.
Since the establishment, our company has been following the guiding ideology of Superior Quality and Efficiency, Pioneering Innovation and the operation principle of Customer-oriented, Quality and Service First. Shandong Sunite Machinery Co., Ltd. Has won unanimous praise from the users. Our equipment can be found everywhere in China and is exported to such countries and regions as Europe and America, Oceania, Southeast Asia, Africa, South America, the Middle East and so on.
Shandong Sunite Machinery Co., Ltd. Sincerely looks forward to cooperating with new and old customers and friends from all works of life for a better tomorrow.
