Product Specifications
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Type: |
Brick Making Machine |
Product Description
Working Principle:

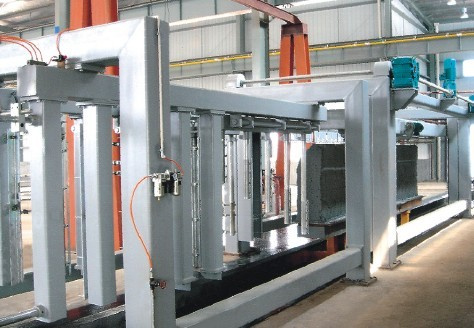

The tilting hanger turns the mould 90 in the air, demoulds the blank and puts it on the cutting table together with the siade plate. The cutting cart driven by the motor runs slowly through the vertical cutting device, and run to the horizontal cross cutting device after vertical cutting is finished When the cart is stopped, the cross cutting device starts and the cross cutting support falls down from the top to make horizontal cutting until the reset upward.
Advantages:
1. Simple and practical structure, easy installation and maintenance;
2. The blank stands vertically with the width of 600mm and the height of 1200m after tilting, thus the cutting wire can be shorter and not easy to be broken and drifted, besides, the cutting precision can be more exactly to cut;
3. As the blank stands vertically, the grooves on both sides of the blank (within width of 600mm) can be milled at the time when the blank is cut vertically, no groove processing device is needed;
4. The machine can process both building blocks and plates, and the blank can be cut in 6 sides therefore the quality of product is free from affection of mould oil and the deformation of the mould;
5. The machine has simple operation and cutting processes (titling, vertical cutting and cross cutting) can be finished in different positions plus that cutting and running are controlled in the same device, therefore, operating is simplified and maintenance is convenient.
|
No. |
Parameter Name |
Index |
Remark |
|
1 |
Capacity (m³ /year) |
5-30 |
Annual production |
|
2 |
Size of blank (mm) |
4200X1200X600 |
Net |
|
3 |
Mould number of cutting |
5/10 |
Vertical cutting/Cross cutting |
|
4 |
Precision of cutting (mm) |
± 3 ± 1.5 ± 1.5 |
Length/Width/Height |
|
5 |
Circle time of production (min/mould) |
5 |
|
|
6 |
Weight (t) |
18 |
Vertical cutting/Cross cutting |
|
7 |
Power (kw) |
11.4 |
Including hydraulic station |
Zhengzhou Kehai Heavy Industrial Machinery Co., Ltd is a professional manufacturer of series Autoclaved Aerated Concrete equipment, one corporate enterprise which has the developing and researching ability.
The company is located in the new city Gongyi which between Zhengzhou (the capital of Henan) and Luoyang (the ancient capital of nine feudal dynasties). With the good geographical position, the surrounding is beautiful and the transportation is very convenient.
Established in 1986, the company Kehai covers an area of 39, 000 square meter, 16, 000 square meter for work shop. It has an asset of 80, 000, 000RMB with more than 100 sets of equipment and 390 staff. Kehai has four subsidiary, one sale company, six sale department, financial department, quality control department and after-sale department etc.
By transforming the mechanism, employing the talented persons, investing in equipment and cooperating with the research agencies, we devote ourselves to researching and developing new wall material. Now the company has become a modern enterprise with advanced technology, excellent equipment, standard management, high quality, good service and become the member of AAC Association and China Building Material Association. Also passed ISO90001 quality system authentication.
Approaching Kehai, success is coming, Our company's marketing and service concept is to create a platform for customers and help them to make achievements in business. We will try our best to win the confidence of the market both domestic and overseas. Welcome all the customers to visit and negotiate with us.
We always take the good faith as the concept, establish sincere cooperation and mutual development with all new and old customers. Making contribution and development for the building material industry as well as the equipment.
