Product Specifications
| Prod Model: |
ISOEM U(A)-P-O-O Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input: |
0-75mv/0-5V/0-10V/0-+/-100mv/0-10mA/4-20mA,etc |
| Output: |
4-20mA/0-20mA/0-5V/0-10V/0- +/-20mA,etc |
| Isolation Mothod: |
Magneto-Electric Isolation |
| Isolation Voltage: |
3000VDC |
| Auxiliary Power Supply: |
5V,12V,15V,24VDC etc |
| Package: |
SIP16pin |
| Operating Temperature Range: |
-45~+85 Centigrade |
Product Description
0~10V output Converter with One Signal Input Two Signal Output

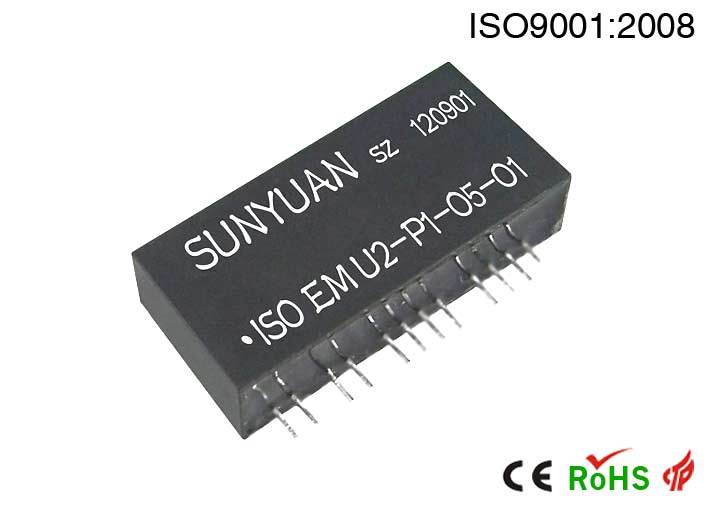

ISOEM U(A)-P-O-O Series General characteristic:
Low cost, small size. Directly soldered on the PCB board mounted. SIP 16 anti- fire UL94V-0 package
Easy to use, no zero adjustment except external gain adjustment.
Full range with high linearity. (Non-linearity <0.2%)
Power / signal input / two-way signal output, isolation 3000VDC, four-port isolated.
Auxiliary power supply: 5V, 12V, 15V, 24V.
SIP-16 meets UL94V-0 flame retardant package.
0-75mV/0-5V/0-10V/0-± 100mV/0-± 10Vvoltage signal or 0-10mA/4-20mA/0-± 20mA current signal isolation, amplifier and converter
Temperature range: -45~+85 º C
Applications:
Divid and monitor the senor signal
Industrial area signal isolation, conversion, amplification and long-term transmission
4-20mA signal one in two out ground interference suppression
Analog signal ground interference suppression, isolation and collected of data.
Power monitoring, medical device isolation monitoring barrier
Detection of instrument, meter and sensor's signal transceiver
4-20mA/0-5V etc. Signal isolation, distribution and transformation
Industrial site analog and digital signal to coexist monitoring and transmission
Brief Introduction:
SunYuan ISO EM-U-P-O-O voltage input series and ISO EM A-P-O-O current input series analog signal dual output isolation transmitter, a (sensor output) single-channel analog voltage or current signal through the isolation, distribution, converted into a two-way precision, linearity match the hybrid integrated circuit of the standard analog signals. Analog signal isolation amplifier, the IC integrated on the same chip, high isolation DC / DC distribution power and magneto electric coupling magnetoelectric coupling low-cost program, mainly used no special requirements for EMC (Electro Magnetic Interference) occasions. Wide input and output side creepage distances and internal isolation measures so that the
Chip can achieve power, signal input, signal output of the two 3KVDC, four-port isolation. ISO EM series single signal input dual-output isolation transmitter IC products use very convenient, free zero-point adjustment, just an external gain adjustment potentiometer, can achieve the industrial field various sensor signal isolation, allocation, conversion functions, and can meet the industrial grade temperature, humidity, vibration and other adverse work environment requirements
Model Sellection and description:
ISOEM U(A)_-P_-O_-O_
Input signal:
U1: 0-5V A1: 0-1mA
U2: 0-10V A2: 0-10mA
U3: 0-75mV A3: 0-20mA
U4: 0-2.5V A4: 4-20mA
U5: 0-± 5V A5: 0-± 1mA
U6: 0-± 10V A6: 0-± 10mA
U7: 0-± 100mV A7: 0-± 20mA
U8: User Define A8: User Define
Power Supply:
P1: DC24V
P2: DC12V
P3: DC5V
P4: DC15V
P8: User Define
Output signal:
O1: 4-20mA
O2: 0-20mA
O4: 0-5V
O5: 0-10V
O6: 1-5V
O7: 0-± 5V
O8: User-Define
O9: -20- +20mA
O10: 0-± 10V
Examples:
(1)Input: 0-5VDC Output 1: 0-5VDC Output 2: 4-20mA Power: 24VDC
Model: ISO EM-U1-P1-O4-O1
(2)Input: 4-20mA Output1: 0-5V Output2: 4-20mA Power: 24VDC
Model: ISO EM-A4-P1-O4-O1
|
Parameter |
Test Condition |
Min |
Type |
Max |
Unit |
|
Isolated voltage |
AC,50Hz,1min |
3000 |
|
|
V(rms) |
G.Adj
|
|
|
1 |
|
V/V |
|
G.Adj temperature drift |
|
|
25 |
|
ppm/ºC |
|
Non-linearity |
|
|
0.1 |
0.2 |
%FSR |
|
Input signal |
Voltage |
|
0 |
|
15 |
V |
|
Current |
|
0 |
|
30 |
mA |
|
Input maladjusted voltage |
|
|
2 |
5 |
mV |
|
Input impedance |
Voltage |
|
|
1 |
|
M |
|
Current |
|
|
|
50 |
Ω |
|
Output signal |
Voltage |
|
0 |
|
15 |
V |
|
Current |
|
0 |
|
20 |
mA |
|
Load capability |
Voltage |
Vout=10V |
|
2 |
|
kΩ |
|
Current |
|
0 |
250 |
350 |
Ω |
|
Frequency response |
|
|
10 |
|
KHz |
|
Signal output ripple |
No-filter |
|
10 |
20 |
mVRMS |
|
Signal voltage temperature drift |
|
|
|
1 |
mV/ºC |
|
Assistant power |
Voltage |
User-defined |
3.3 |
12 |
24 |
VDC |
|
Power loss |
|
|
0.5 |
1 |
W |
|
Operating temperature |
|
-45 |
|
85 |
ºC |
|
Storage temperature |
|
-55 |
|
105 |
ºC |
