Product Specifications
| Prod Model: |
STSM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
ABS Box |
| Protection Class: |
IP65 |
| Materials: |
ABS |
| UV: |
10 Years |
| Quality Assurance: |
2 Years |
| Features: |
Waterproof, Protection |
| Way: |
1~36ways |
| Weight: |
18kg/Box |
| Brand: |
Suntree |
| Model: |
ABS |
| Usage: |
Wine Box |
| Size: |
Small |
| Material: |
ABS |
Product Description

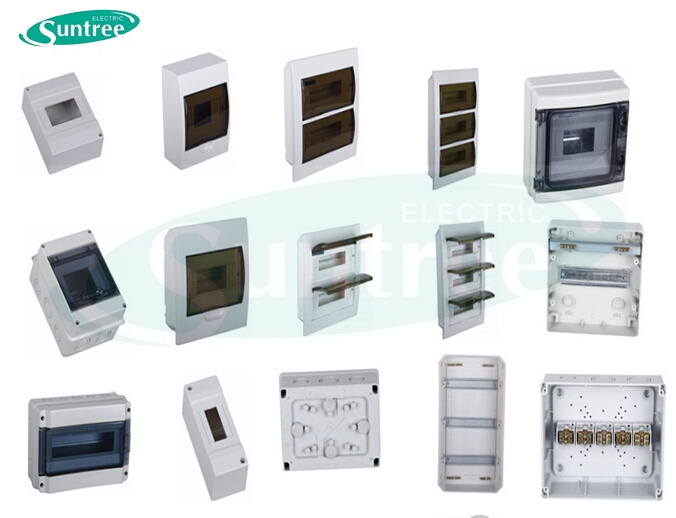

ABS power distribution box electrical distribution box
Distribution box specifications:
1. Hihg quality
2. Comtetitive price
3. Best service
4. Easy for installation
5. Fast delivery
Technical Data of distribution box:
1. Complete with earth and neutral bars together with neutral link wire
2. Rated current: Max. 125A
3. Material: Fire-resistant/ABS
4. Protection degree: IP65
Product Features for distribution box:
- Distribution box high-quality plastic raw materials (by no means turn copied material, environmental protection and quality assurance, there will never be black spots)
- 7X9 pure brass (copper is by no means, good conductivity) Ø panel using advanced plastic.
- boxes integrated molding, a variety of sizes to choose size, beautiful appearance, simple.
- earth leakage circuit breaker panel with sufficient distance, performance and more secure.
Distribution box dimensions:
| TYPE | L | W | D |
| 2ways | 90 | 140 | 60 |
| 4ways | 112 | 210 | 100 |
| 6ways | 148 | 210 | 100 |
| 8ways | 184 | 210 | 100 |
| 10ways | 222 | 210 | 100 |
| 12ways | 256 | 210 | 100 |
| 15ways | 312 | 210 | 100 |
| 18ways | 364 | 222 | 100 |
| 24ways | 270 | 325 | 100 |
| 36ways | 305 | 473 | 100 |
Waterproof junction box with terminal strip for electronic connections in areas subject to spray, washdowns, etc.
Rugged, non-corrosive polypropylene housing
"Universal" cut-to-fit cable entries, diameter range: .14 -.81"
Brass compression screw terminals
Use :Indoor and outdoor electrical , Communicate and fire equipment, Ironmaking & Steelmaking , Stone oil chemical, electronic plants......
Better material: High quality thermoplastic ABS or polycarbonate (PC) or choose materials that subject to customers' preferance.( No corrosive, antistatic, better insulation )
Thickness of the box: the thinnest part has an average thickness of 3 mm
Identification: CE ,IP66
Installment: Inner install and outer install
Access hole: the position and size of holes can be processed according to the customers' requests;we have assorted waterproof joints, terminal blocks and mounting base plates for your referrence.
1. This series waterproof junction box with a bulge at the bottom of the card slot, can install the fixed guide rail, etc.
2. The junction box's four corners with plastic screw cover,and box side have holes with cable gland.
3. The junction box is usually made by recycled material.
| Design | Specification Dimension | L (mm) | W (mm) | H (mm) | Holes No | IP Rating |
Round
| 50*30 | 50 | / | 30 | 4 | IP55 |
| 50*50 | 50 | / | 50 | 4 | IP55 |
| 80*50 | 80 | / | 50 | 4 | IP55 |
Square
| 80*80*50 | 80 | 80 | 50 | 4 | IP55 |
| 85*85*50 | 85 | 85 | 50 | 7 | IP55 |
| 100*100*70 | 100 | 100 | 70 | 7 | IP65 |
| 150*110*70 | 150 | 110 | 70 | 10 | IP65 |
| 150*150*70 | 150 | 150 | 70 | 7 | IP65 |
| 200*155*80 | 200 | 155 | 80 | 10 | IP65 |
| 200*100*70 | 200 | 100 | 70 | 8 | IP65 |
| 200*200*80 | 200 | 200 | 80 | 12 | IP65 |
| 255*200*80 | 255 | 200 | 80 | 12 | IP65 |
| 300*250*120 | 300 | 250 | 120 | 12 | IP65 |
| 400*350*120 | 400 | 350 | 120 | 16 | IP65 |
| Specification Dimension | Package Size
(CM) | G.W
(KGS) | PCS/CTN |
| φ50*30 | 61.5 | 31 | 50 | 13.8 | 400 |
| φ50*50 | 61.5 | 31 | 50 | 13.8 | 320 |
| φ80*50 | 53 | 36 | 60 | 14.5 | 240 |
| φ80*80*50 | 49 | 49 | 42 | 15.9 | 200 |
| φ85*85*50 | 52 | 40 | 52 | 16.6 | 200 |
| φ100*100*70 | 44.2 | 36 | 56 | 14.7 | 100 |
| φ150*110*70 | 64.2 | 39 | 48.4 | 16.1 | 80 |
| φ150*150*70 | 64.2 | 39 | 48.8 | 16.1 | 80 |
| φ200*155*80 | 62 | 41 | 49.3 | 14.1 | 45 |
| φ200*100*70 | 63.4 | 36.5 | 45 | 15 | 60 |
| φ200*200*80 | 62 | 41 | 62.8 | 14.9 | 45 |
| φ255*200*80 | 65 | 53.2 | 42.2 | 20.7 | 32 |
| φ300*250*120 | 62 | 31.5 | 53.2 | 10.4 | 10 |
| φ400*350*120 | 64 | 43 | 37 | 9.5 | 5 |
Waterproof junction box with terminal strip for electronic connections in areas subject to spray, washdowns, etc.
Rugged, non-corrosive polypropylene housing
"Universal" cut-to-fit cable entries, diameter range: . 14 -.81"
Brass compression screw terminals
Use: Indoor and outdoor electrical, Communicate and fire equipment, Ironmaking & Steelmaking, Stone oil chemical, electronic plants...
Better material: High quality thermoplastic ABS or polycarbonate (PC) or choose materials that subject to customers' preferance. ( No corrosive, antistatic, better insulation )
Thickness of the box: The thinnest part has an average thickness of 3 mm
Identification: CE, IP66
Installment: Inner install and outer install
Access hole: The position and size of holes can be processed according to the customers' requests; We have assorted waterproof joints, terminal blocks and mounting base plates for your referrence.
1. This series waterproof junction box with a bulge at the bottom of the card slot, can install the fixed guide rail, etc.
2. The junction box's four corners with plastic screw cover, and box side have holes with cable gland.
3. The junction box is usually made by recycled material.
| type | Dimension | Packing size | QTY |
| PART NO. | W H D(mm) | CM | Box(pcs) |
| ST-AG-0506 | 50*65*55 | 54*48*48 | 504 |
| ST-AG-0609 | 65*95*55 | 49*52*52 | 280 |
| ST-AG-0811-S | 80*110*45 | 48*44*50 | 234 |
| ST-AG-0811 | 80*110*70 | 50*50*46 | 156 |
| ST-AG-0811-1 | 80*110*85 | 57*33.5*45.5 | 100 |
| ST-AG-0813 | 80*130*70 | 54*41.5*45.5 | 120 |
| ST-AG-0813-1 | 80*130*85 | 54*41.5*45.5 | 100 |
| ST-AG-0816-S | 80*160*55 | 49.5*41.5*39 | 90 |
| ST-AG-0818 | 80*180*70 | 65*57*53 | 168 |
| ST-AG-0825-1 | 80*250*85 | 66*53*53 | 96 |
| ST-AG-1212-S | 125*125*75 | 52*39.5*33 | 48 |
| ST-AG-1212 | 125*125*100 | 52*39.5*34 | 36 |
| ST-AG-1217 | 125*175*75 | 54*56*66 | 105 |
| ST-AG-1217-1 | 125*175*100 | 52×39.5×33 | 10 |
| ST-AG-1417 | 140*170*95 | 53*43.5*41 | 36 |
| ST-AG-1717-1 | 175*175*100 | 54.5*36.5*43 | 24 |
| ST-AG-1520 | 150*200*100 | 47×41.5×43 | 24 |
| ST-AG-1520-1 | 150*200*130 | 47*41.5*41 | 18 |
| ST-AG-1525 | 150*250*100 | 47*52*43 | 24 |
| ST-AG-1525-1 | 150*250*130 | 47*52*41 | 18 |
| ST-AG-2020-S | 200*200*95 | 61.5*41.5*43 | 24 |
| ST-AG-2020 | 200*200*130 | 61.5*41.5*43 | 18 |
| ST-AG-2819 | 280*190*130 | 570*540*280 | 12 |
