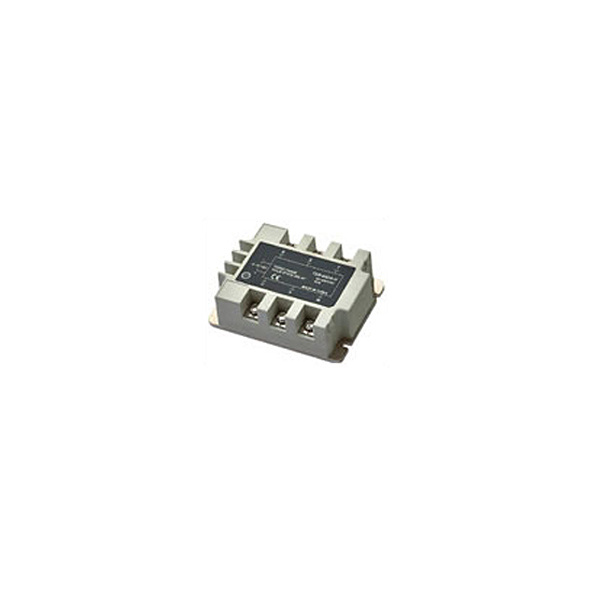

AC-AC Three Phase Solid State Relay
Product Specifications
| Prod Model: |
AC-AC Three Phase Solid State Relay |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Application :- High rellability by S.M.T & TQC.(Surface Mounting Technology)
- High Isolation over than 50MQ/500VDC
- High dielectric over than 2.5KV
- Low enable current less than 7.5mA/12VDC CMOSIC or TTL Compatible.
- Low EMI/EFI& surge by Zeero cross Trigger Method.
- High surge current duration,over 10 Times of rated current/one cycle.
- High surge voltage duration by snubber circuit.
Zero Cross Trigger Method
Output TURN ON or TURN OFF only on zero cross point of sine wave,may avoid surge or EMI/RFI occurring.
Specially suited to control resistive,capacitive and Non-saturated inductive loads |
|
Variable resistance control method
Power output is controlled by the trigger angle of triac with variable resister 250KQ/110VAC,500KQ/220VAC |
|
Application Hints : Input | NPN | Output | NO | Input | NPN | Output | NO | Input | NPN | Output | NO |
|
|
| Input | NPN | Output | NO | Input | NPN | Output | NO | Input | NPN | Output | NO |
|
|
|
|
| Type | Standard type | High voltage type | | Model | TSR-15AA | TSR-25AA | TSR-40AA | TSR-75AA | TSR-15AA-H | TSR-25AA-H | TSR-40AA-H | TSR-75AA-H | | Rated load current | 15A | 25A | 40A | 75A | 15A | 25A | 40A | 75A | | Input voltage | 80-250VAC, 50/60Hz | | Min. on/off voltage | ON>45V, OFF<35V | | Trigger current | 5.0mA/110V max. | | Control method | Zero cross trigger | | Operating voltage | 24-380VAC | 90-480VAC | | Min. black voltage | 600VAC | | Peak voltage | Over 1200V | | Max. durated current | 175A | 275A | 410A | 820A | 175A | 275A | 410A | 820A | | Leakage current | 12.5mA@380V | 15.5mA@440V | | Response time | ON<20ms/OFF<20ms | | Dielectric strength | Over 2.5KVAC/ 1min. | | Isolation strength | Over 50M/500VDC | | Operating temperature | -20ºC~+80ºC | | Weight | 390G |
Dimension and connection diagram : |
|
