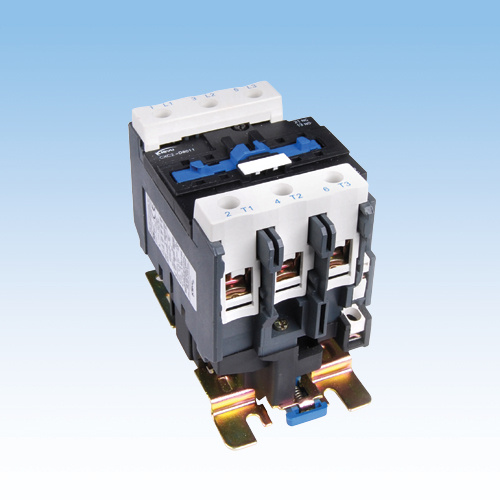

AC Contactor CXC2-D(LC1-D)

Name: AC Contactor CXC2-D(LC1-D)
Brand: China-Manufacturer-Directory.com
SKU: 609919934
Availability: InStock
Rating: 4.9 (72 reviews)

Supplier:	WENZHOU AUSIN ELECTRIC CO., LTD.
Price:	Negotiable/Piece
Min Order:	1 /Piece
Quantity::

Product Specifications

Prod Model:	CXC2-D
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Miniature
Theory:	Electromagnetic Contactor

Product Description

CXC2-D AC contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & mechanical-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The contactor is produced according to IEC60947-4.

Structure Features
CXC2-D series AC contactor has features of small volume, light weight and with long life and small power consumption. It can be derived upon request and can be equipped with accessories such as building block type auxiliary contact group, air delay head and mechanical interlock mechanism etc. To form delay contactor, mechanical interlock mechanism and star triangle starter. It also can be directly connected with thermal relay to form electromagnetic starter. Besides bolts installed, it also can be installed to 35mm (75mm) standard bail.

Parameters			Type
			CXC2-9	CXC2-12	CXC2-18	CXC2-25	CXC2-32	CXC2-40	CXC2-50	CXC2-65	CXC2-80	CXC2-95
Rated working current (le)	380V	AC-3	9	12	18	25	32	40	50	65	80	95
		AC-4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
	660V	AC-3	6.6	8.9	12	18	21	34	39	42	49	55
		AC-4	1.5	2	3.8	4.4	7.5	9	12	14	17.3	21.3
Rated insulating voltage (Ui) V			660
Conventional heating current (Ith) A			20		32	40	50	60	80		100
Controllable 3- phase squirrelcage motor power (AC-3) KW		220V 380V 660V	2.2 4 5.5	3 5.5 7.5	4 7.5 9	5.5 11 15	7.5 15 18.5	11 18.5 30	15 22 33	18.5 30 37	22 37 45	25 45 45
AC-3	Electrical life (10 4 ) times		100				80				60
	Operation frequency		1200 times/h				600 times/h
AC-4	Electrical life (10 4 ) times		20					15			10
	Operation frequency		300 times/h
Mechanical life (10 4 ) times			1000				800				600
Auxiliary contact	Conventional heat current (Ith)		AC
	Rated working voltage (Ue) V		AC 380 DC220
	Rated control capacity		360VA (AC-15) or 33W (DC-13)
	Electrical life (10 4 ) times		100
	Mechanical life (10 4 ) times		1000
	Minimum load of making		6V 10mA
Coil	Rated control voltage (Us) V		24, 36, 48, 110, 127, 220, 240, 380, 400
	Pull-in voltage V		85%~110% Us
	Release voltage V		20%~75% Us
	Pull-in VA		70			110		200
	Holding VA		8			11		20
	Power W		1.8~2.8			3~4		6~10

Matched fuse type and current		RT16-20				RT16-32		RT16-40		RT16-50		RT16-63		RT16-80				RT16-100		RT16-110
Wire connected with terminal (mm 2 )	Number of wire	1	2	1	2	1	2	1	2	1	2	1	2	1	2	1	2	1	2	1	2
	Sofe wire	2.5	2.5	2.5	2.5	4	4	4	4	6	6	10	10	16	16	25	25	50	25	50	25
	Hard wire	4	4	4	4	6	6	6	6	10	10	16	-	25	-	25	-	50	-	50	-

Table 2

Parameters		Type
Parameters		CXC2-115	CXC2-150	CXC2-170	CXC2-205	CXC2-245	CXC2-300	CXC2-410	CXC2-475	CXC2-620
Rated current AC-3 Ie (A)		115	150	170	205	245	300	410	475	620
Rated heating current Ith (A)		200	250	250	275	315	400	500	700	1000
Controllable 3-phase squirrel-cage motor rated power (AC-3)KW	220V	30	40	55	63	75	100	110	147	200
	380V	55	75	90	110	132	160	220	265	335
	660V	80	100	110	129	160	220	280	335	440
VolumeLxWxH(mm 3 )		132x120x158			168.5x174x181	168.5x197x181	213x206x219		232x238x233	309x304x255
Rated insulating voltage Ui (V)		1000
Short circuit protective fuse (SCPD) (A)	I type	200	250	250	315	315	500	630	800	1000
Short circuit protective fuse (SCPD) (A)	II type	125	160	180	200	250	400	400	500	630
Machincial lifex10 6 times		8	8	8	10	10	10	10	10	5
