AC Contactor LC1-F Series (ACC1-F 115)

Name: AC Contactor LC1-F Series (ACC1-F 115)
Brand: china-manufacturer-directory.com
SKU: 748698075
Availability: InStock
Rating: 4.3 (76 reviews)

Supplier:	Shanghai Anson Electric Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	200/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ACC1-F 115
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.:	Acc1-F 115
Poles Numbers:	3p/4p
Certificates:	CE CB CCC ISO9001
Standards:	GB10963.1 IEC60898.1
Export Markets:	Global
Protective Characteristics:	Open Relay
Load:	Medium Power Relay
Theory:	Electromagnetic Relay
Size:	Subminiature
Usage:	Car Relay, Household Appliances Relay, Lathe Relay
Action Principle:	Electromagnetic Type

Product Description

Application:
ACC1-F series AC Contactor is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controllingthe AC motor. Combined with the auxiliary contact block, timer delay & machine-interlockingdevice etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The products comply withIEC ACC1-F AC contactor is suitable for using in the circuits u to the rated voltage 380V AC 50Hz, current 800A, for long distance breaking circuit and frequently starting or controlling the motor. Italso can be sed for the conntrol of distribution circuits of rated current from 200A to 1500A. Itconforms to IEC60947-4-1.60947-4.

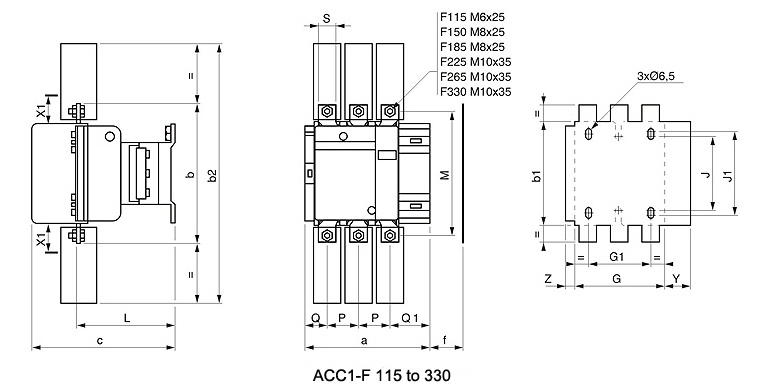

Dimension:

Type	Rated operational current in AC-3(A)	Max power ratings of 3-phase motors in category AC-3(kW)							Operating frequency (time/hour) AC-3	Electrical life AC-3 x104	Mechanical life x104
Type	Rated operational current in AC-3(A)	220V 230V	380V 400V	415V	440V	500V	660V 690V	1000V	Operating frequency (time/hour) AC-3	Electrical life AC-3 x104	Mechanical life x104
ACC1-F115	115	30	55	59	59	75	80	65	1200	120	1000
ACC1-F1154	115	30	55	59	59	75	80	65	1200	120	1000
ACC1-F150	150	40	75	80	80	90	100	65	1200	120	1000
ACC1-F1504	150	40	75	80	80	90	100	65	1200	120	1000
ACC1-F185	185	55	90	100	100	110	110	100	600	100	600
ACC1-F1854	185	55	90	100	100	110	110	100	600	100	600
ACC1-F225	225	63	110	110	110	130	129	100	600	100	600
ACC1-F2254	225	63	110	110	110	130	129	100	600	100	600
ACC1-F265	265	75	132	140	140	160	160	147	600	80	600
ACC1-F2654	265	75	132	140	140	160	160	147	600	80	600
ACC1-F330	330	100	160	180	200	200	220	160	600	80	600
ACC1-F3304	330	100	160	180	200	200	220	160	600	80	600
ACC1-F400	400	110	200	220	250	257	280	185	600	80	600
ACC1-F4004	400	110	200	220	250	257	280	185	600	80	600
ACC1-F500	500	147	250	280	295	355	335	335	600	80	600
ACC1-F5004	500	147	250	280	295	355	335	335	600	80	600
ACC1-F630	630	200	335	375	400	400	450	450	600	80	600
ACC1-F6304	630	200	335	375	400	400	450	450	600	80	600
ACC1-F780	780	220	400	425	425	450	475	40	600	80	600
ACC1-F7804	780	220	400	425	425	450	475	450	600	80	600
ACC1-F800	800	250	450	450	450	450	470	450	600	80	600
