AC/DC Open Frame Switching Power Supply (SMPS) (PS-65)

Name: AC/DC Open Frame Switching Power Supply (SMPS) (PS-65)
Brand: china-manufacturer-directory.com
SKU: 301014076
Availability: InStock
Rating: 4.5 (20 reviews)

Supplier:	Wenzhou Mingwei Automation System Co., Ltd.
Price:	US $ 1/Piece
Min Order:	200/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	PS-65
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Open Frame Power Supply
Output Type:	Single
Output Power:	51 - 100W
Input Voltage:	110-220V
Voltage Regulating Mode:	Width Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Warranty:	2 Years
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO

Product Description

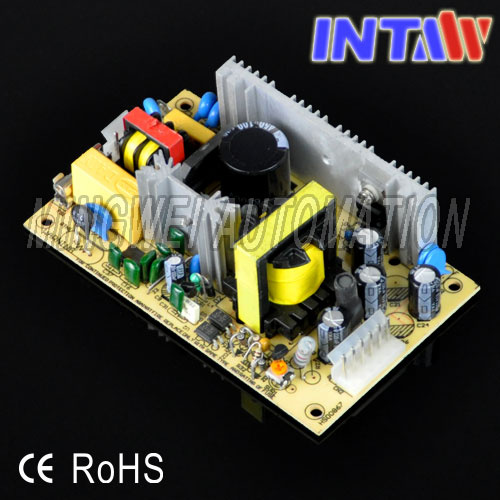

65W AC/DC Open Frame Power Supply (SMPS) PS-65

Features:
· Universal AC input/Full range
· Low leakage current<0.5mA
· Protections: Short circuit/Over load/Over voltage
· Cooling by free air convection
· 100% full load burn-in test
· Fixed switching frequency at 65kHz

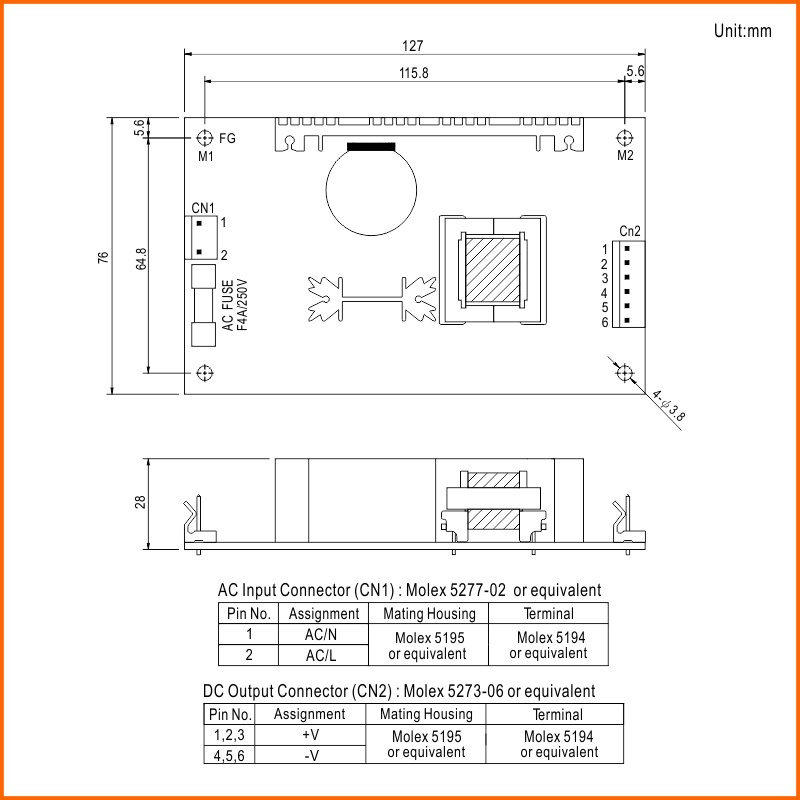

1. Mechanical Specification:

2. Certificate:

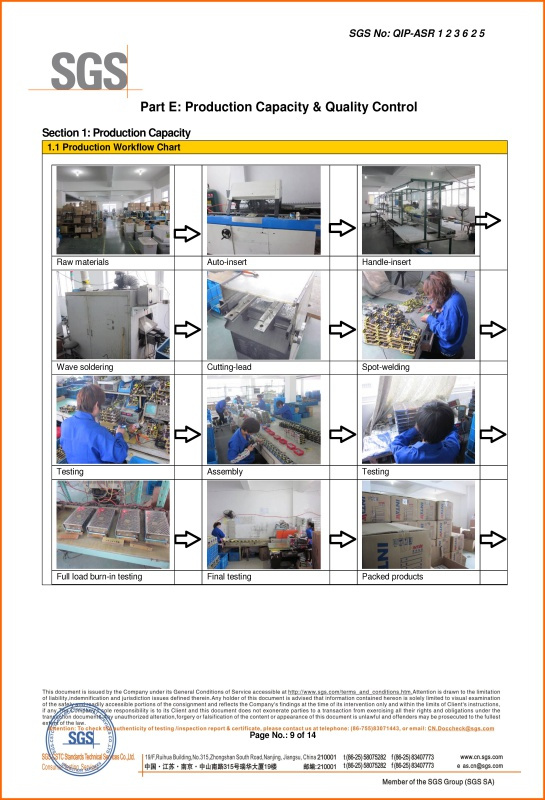

3. Production Capacity & Quality Control:

Our switching power supply product:

≡ Single output switching power supply
≡ Dual output d series SMPS
≡ Triple output t series switch mode power supply
≡ Quad output q series power suply
≡ Miniature size ms, RS, nes series switching power supply
≡ Witch pfc function sp series switch power supply
≡ DIN rail dr series switching mode power supply
≡ LED driver (waterproof) sv, fy series switching power supplies
≡ PS, pd, PT series Open frame power supply
≡ DC/DC converter SD series
≡ Wmp and ad series SMPS

For more, please visit our website.

MODEL	PS-65-3.3	PS-65-5	PS-65-7.5	PS-65-12	PS-65-13.5	PS-65-15	PS-65-24	PS-65-27	PS-65-48
DC VOLTAGE	3.3V	5V	7.5V	12V	13.5V	15V	24V	27V	48V
RATED CURRENT	12A	12A	8A	5.2A	4.7A	4.2A	2.7A	2.4A	1.35A
CURRENT RANGE	0 ~ 15.2A	0 ~ 13.8A	0 ~9.6A	0 ~ 6A	0 ~ 5.4A	0 ~ 4.8A	0 ~ 3A	0 ~ 2.7A	0 ~ 1.5A
RATED POWER	39.6W	60W	60W	62.4W	63.5W	63W	64.8W	64.8W	64.8W
OUTPUT POWER (max.)	Rated output power for convection;72W (+3.3V:35W) with 18 CFM min.Forced air
RIPPLE & NOISE (max.)	80mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
VOLTAGE ADJ. RANGE	3.14 ~ 3.63V	4.75 ~ 5.5V	7.13 ~ 8.25V	11.4 ~ 13.2V	12.8 ~ 14.9V	14.25 ~ 16.5V	22.8 ~ 26.4V	25.65 ~ 29.7V	45.6 ~ 52.8V
VOLTAGE TOLERANCE	±3.0%	±3.0%	±3.0%	±2.0%	±2.0%	±2.0%	±2.0%	±2.0%	±2.0%
LINE REGULATION	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
LOAD REGULATION	±3.0%	±3.0%	±3.0%	±2.0%	±2.0%	±2.0%	±2.0%	±2.0%	±2.0%
SETUP, RISE, HOLD TIME	800ms, 20ms,60ms at full load
VOLTAGE RANGE	90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE	47 ~440Hz
EFFICIENCY (Typ.)	69%	76%	79%	79%	79%	79%	80%	80%	80%
AC CURRENT	1.2A/115VAC 0.72A/230VAC
INRUSH CURRENT (max.)	COLD START 20A/115VAC 40A/230VAC
LEAKAGE CURRENT	<0.5mA/240VAC
OVERLOAD	73 ~ 105W (3.3V : 51 ~ 75 W)(5V : 70 ~ 105) rated output power
OVERLOAD	Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE	3.8 ~ 4.46V	5.75 ~ 6.75V	8.63 ~ 10.1V	13.8 ~ 16.2V	15.5 ~ 18.2V	17.25~ 20.25V	27.6 ~ 32.4V	31 ~ 36.45V	55.2 ~ 64.8V
OVER VOLTAGE	Protection type : Hiccup mode, recovers automatically after fault condition is removed
WORKING TEMP.	-10 ~ +60ºC (Refer to output load derating curve)
WORKING HUMIDITY	20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY	-20 ~ +85ºC , 10 ~ 95% RH
TEMP. COEFFICIENT	±0.04%/ºC (0 ~ 50ºC)
VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY STANDARDS	Design refer to UL60950-1,TUV EN60950-1
WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
EMI CONDUCTION & RADIATION	Compliance to EN55022 (CISPR22) Class B
HARMONIC CURRENT	Compliance to EN61000-3-2,-3
EMS IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11; Light industry level, criteria A
MTBF	300.7Khrs min. MIL-HDBK-217F(25ºC)
DIMENSION	1277642mm (LWH)
PACKING	0.21Kg;54pcs/14.2Kg/1.35CUFT
