| Supplier: | Yueqing Uzola Electric Co., Ltd. |
|---|---|
| Price: | Negotiable/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB |
|
|

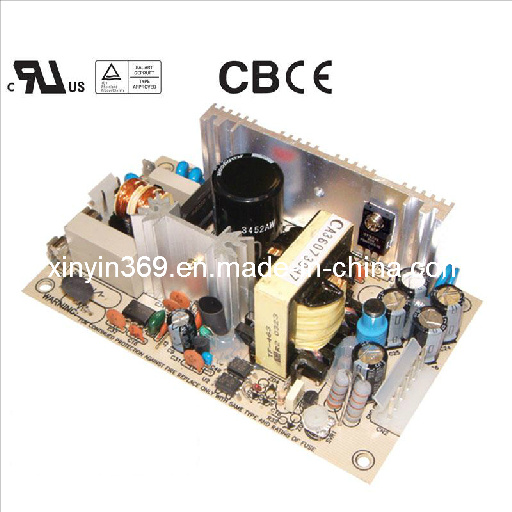

| Prod Model: | PS-65W |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: | CE |
| Warranty: | 1 Year |
| Output Type: | Single |
| Output Power: | 51 - 100W |
| Input Voltage: | 110-220V |
| Voltage Regulating Mode: | Width Modulation Type |
| Starting Mode: | Self-excited Switching Power Supply |
| Connection Mode: | Series Switching Power Supply |
| Power Supplying System: | Terminal Power Distribution Equipment |
| MODEL | PS-65-3.3 | PS-65-5 | PS-65-7.5 | PS-65-12 | PS-65-13.5 | PS-65-15 | PS-65-24 | PS-65-27 | PS-65-48 |
| DC VOLTAGE | 3.3V | 5V | 7.5V | 12V | 13.5V | 15V | 24V | 27V | 48V |
| RATED CURRENT | 12A | 12A | 8A | 5.2A | 4.7A | 4.2A | 2.7A | 2.4A | 1.35A |
| CURRENT RANGE | 0 ~ 15.2A | 0 ~ 13.8A | 0 ~9.6A | 0 ~ 6A | 0 ~ 5.4A | 0 ~ 4.8A | 0 ~ 3A | 0 ~ 2.7A | 0 ~ 1.5A |
| RATED POWER | 39.6W | 60W | 60W | 62.4W | 63.5W | 63W | 64.8W | 64.8W | 64.8W |
| OUTPUT POWER (max. ) | Rated output power for convection; 72W (+3.3V: 35W) with 18 CFM min. Forced air | ||||||||
| RIPPLE & NOISE (max. ) | 80mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| VOLTAGE ADJ. RANGE | 3.14 ~ 3.63V | 4.75 ~ 5.5V | 7.13 ~ 8.25V | 11.4 ~ 13.2V | 12.8 ~ 14.9V | 14.25 ~ 16.5V | 22.8 ~ 26.4V | 25.65 ~ 29.7V | 45.6 ~ 52.8V |
| VOLTAGE TOLERANCE | ± 3.0% | ± 3.0% | ± 3.0% | ± 2.0% | ± 2.0% | ± 2.0% | ± 2.0% | ± 2.0% | ± 2.0% |
| LINE REGULATION | ± 1.0% | ± 1.0% | ± 1.0% | ± 1.0% | ± 1.0% | ± 1.0% | ± 1.0% | ± 1.0% | ± 1.0% |
| LOAD REGULATION | ± 3.0% | ± 3.0% | ± 3.0% | ± 2.0% | ± 2.0% | ± 2.0% | ± 2.0% | ± 2.0% | ± 2.0% |
| SETUP, RISE, HOLD TIME | 800ms, 20ms, 60ms at full load | ||||||||
| VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||||||||
| FREQUENCY RANGE | 47 ~440Hz | ||||||||
| EFFICIENCY (Typ. ) | 69% | 76% | 79% | 79% | 79% | 79% | 80% | 80% | 80% |
| AC CURRENT | 1.2A/115VAC 0.72A/230VAC | ||||||||
| INRUSH CURRENT (max. ) | COLD START 20A/115VAC 40A/230VAC | ||||||||
| LEAKAGE CURRENT | < 0.5mA/240VAC | ||||||||
| OVERLOAD | 73 ~ 105W (3.3V: 51 ~ 75 W)(5V: 70 ~ 105) rated output power | ||||||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 3.8 ~ 4.46V | 5.75 ~ 6.75V | 8.63 ~ 10.1V | 13.8 ~ 16.2V | 15.5 ~ 18.2V | 17.25~ 20.25V | 27.6 ~ 32.4V | 31 ~ 36.45V | 55.2 ~ 64.8V |
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| WORKING TEMP. | -10 ~ +60º C (Refer to output load derating curve) | ||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85º C, 10 ~ 95% RH | ||||||||
| TEMP. COEFFICIENT | ± 0.04%/º C (0 ~ 50º C) | ||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min. /1cycle, 60min. each along X, Y, Z axes | ||||||||
| SAFETY STANDARDS | Design refer to UL60950-1, TUV EN60950-1 | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | ||||||||
| EMI CONDUCTION & RADIATION | Compliance to EN55022 (CISPR22) Class B | ||||||||
| HARMONIC CURRENT | Compliance to EN61000-3-2, -3 | ||||||||
| EMS IMMUNITY | Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11; Light industry level, criteria A | ||||||||
| MTBF | 300.7Khrs min. MIL-HDBK-217F(25º C) | ||||||||
| DIMENSION | 127*76*42mm (L*W*H) | ||||||||
| PACKING | 0.21Kg; 54pcs/14.2Kg/1.35CUFT | ||||||||
