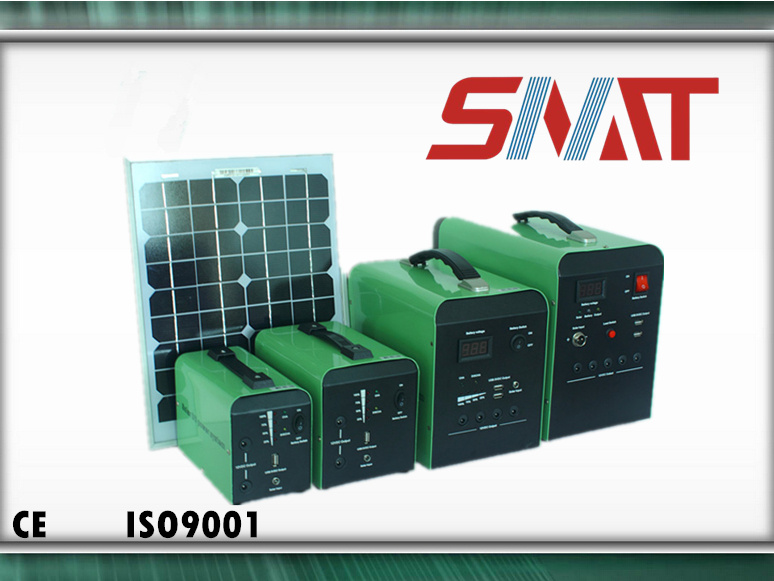

AC & DC Portable Solar Power System for UPS Power Supply

Product Specifications

Prod Model:	SNP-100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
OEM/ODM:	Serve
Special Design:	Accept
Company:	Maunfacturer
Sample Order:	Accept
Application:	Commercial
Specification:	Normal

Product Description

System introduction:

This product uses portable design, built-in battery and solar power controller, which is dedicated to supply the power to  small power DC load ;Solar controller process the sample of the battery terminal voltage, discharge current, environment temperature, involving the battery capacity parameters  through the computer chips. Through the special control model calculation, implementation conforms to the characteristics of battery discharge rate, temperature compensation correction of high efficiency, high control accuracy, and adopt the efficient PWM battery charging mode, which can ensure the battery work in the best state, in order to greatly extend the service life of battery.System comes with 12 VDC or 5 VDC output terminal, with short circuit, overload, unique reverse, full of, discharge automatically shut off, and restore full function protection measures;Detailed charging indicator, battery status, load, and various fault indicator.

Main features:

1, the single chip microcomputer intelligent control, optimize the SOC algorithm.
2, the built-in temperature sensor, which can effectively increase the built-in battery charging efficiency.
3, with the charge and discharge, electronic short circuit protection, overload protection, automatic control for the protection of the unique reverse.
4, main circuit adopted tandem PWM charging, which made the charging circuit of voltage loss than using diode charging circuit to reduce the nearly half, charging efficiency is  higher 3%-6% than the non-PWM , increases the utilization of time.
5, put the ascension of charging, normal straight charger, floating automatic control method make the system have a longer service life.
6, intuitive digital pipe + LED display system.

Technical index

Model		SJY-10012	SJY-20012	SJY-30012
Solar panel	Type	Mono or poly A grade
	Power	10W	20W	30W
	Size(mm)	96*132*186	128*156*186	163*227*227
Solar charging controller	Control way	High efficiency PWM
	Charging current	5A/12V
	Protection	Protection of the over charge,over discharge,short circuit,over load
	Voltage of over charge protection	14.3V
	Voltage of promoting  charging	14.0V
	Float charging voltage	13.8V
	Over discharge protection	10.5V
	Digital tube display	/		Display the current voltage of battery
	LED display	Indication of charging,load and battery capacity
Battery	Battery type	Deep cycle lead-acid battery with free maintenance
	Battery capacity	12V/7AH	12V/12AH	12V/24AH
DC output	Max output power	60W(12V,5A)
	DC12V	2pcs outlet		4pcs outlet
	DC5VUSB	1pc USB output(MAX.2A)		2pcs USB output(MAX.3A)
Accessories	LED light DC 12V	One set of 3W and 5W(2pcs lamp holder,with switch and the cable of  3M and 5M)		2sets of 3W and 5W(4pcs lamp holder,with switch and cable of 3M and 5M)
	USB charger	1pc multifunctional charger
	Solar panel bracket	One set(2pcs)
	Cable	5M
	AC charger	You can choose AC charger;when the charging mode is city power

Warranty:
Quality warranty for 1 year, including all relative products purchased from our company; parts will be shipped free during warranty period.

Delivery time:
Stick to contract
