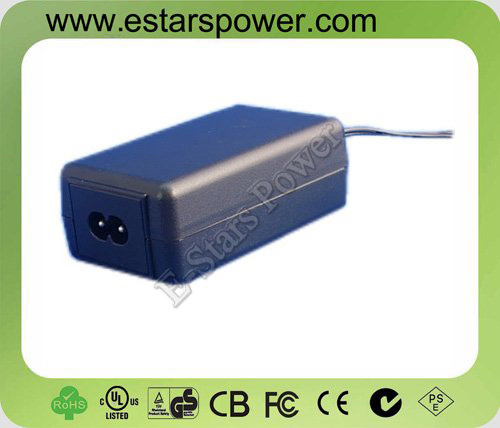

AC/DC switching adapter, Switching Power Adapter / Switching Power supply
Powe supply/Powe alimentazione/alimentation Powe/Powe Versorgung/Powe suministro/Powe ellá Tá S/Powe tarjonnan/powe de alimentare/ Powe
Model: PA1024
Adapter, adaptor, power supplies, power supply, switching power network adapter
Input: 90-264v AC 47-63Hz, 0.3a Max.; Output voltage: 3-50V DC
Inrush current: 40a Max.
Line Current: 1% Max.
Efficiency: 70-82%
Output voltage: 3-4.5v/ Max. 3.0a, output power 15w Max.
Output voltage: 4.9-7.0v/ Max, 3.0a, output power 20w Max.
Output voltage: 7.1-10.5v/ Max. 2.85a, output power 20w Max.
Output voltage: 10.6-15.0v/ Max. 2.0a, output power 24w Max.
Output voltage: 15.1-21.0v Max. 1.6a, output power 24w Max.
Output voltage: 21.1-30.0v Max. 1.14a output power 24w Max.
Output voltage: 30.1-40. V Max. 0.8a, output power 24w Max.
Output voltage: 40.1-50. V Max. 0.6a, output power 24w Max.
Safety: UL, CUL, TUV, CB, CE, FCC, PSE, C-TICK, BSMI
RoHS and CEC compliant
|
24W Series detail specification |
|
Mode No.:PA1024 |
|
Input:90-264vAC |
|
Output: 3~50vDC |
|
Max Power(Po):24W |
|
Size: 70x33x47mm (Horizontal plug-in type) |
|
Size:69x50x37mm(interchangeable AC plug type or Direct plug in type) |
|
Safety&EMC: UL+CUL, GS,CB,CE,FCC,C-TICK,SAA,PSE |
|
ROHS and CEC compliant |
|
|
|
If you are looking power adapter anytime, could you confirm your request: |
|
A: AC-DC adapter (Power Range :0-150W), DC-DC converter(Power Range:1-120W) or AC-DC linear adaptor(Power Range:0-20W) |
|
B: Output Voltage, output Current or Power |
|
C: Wall type(USA,EU,UK,AU) or Desk type(IEC-320 C6,C8,C14) |
|
D: Other requirement: UL,CE,RoHS and connector^ |
|
Welcome to inquire anytime freely, thank you very much! |
E-Stars Int'l Tech. Co., Limited is a leading manufacture of AC/DC switching adapter, switching power supply, AC/DC adaptor, Linear adaptor, transformer, DC/DC Converter, Battery and Charger for many world renowned OEM's, we deliver technology leadership, global operation excellence and outstanding customer support. Our products are used in a wide spectrum of application such as desktop PC, Mobile phones and other telecom equipment, Internet Appliance Server, NAS/SAN, Network and Telecommunication Instrumentations...
Our strength is to be responsible to meet customer needs and reduce total ownership cost. As our business commitment, we offer an unparalleled level of service and technical support.
E-Stars Power with more than 15 years of experience, ISO 9001 & ISO 14001 certified facility and professional quality control system, Our products have obtained many certification for UL+cUL, CSA, TUV-GS, VDE, FIMKO, DEMKO, NEMKO, SEMKO FCC (DOC), SAA, C-Tick, CB, CE, EK, E-MARK, PSE, BSMI and etc. We always deliver the highest quality products in the industry, excellence in quality & reliability is our ultimate goal.
