Ningbo Yinzhou Longway Technology Co., Ltd. >> AC Gear Motor

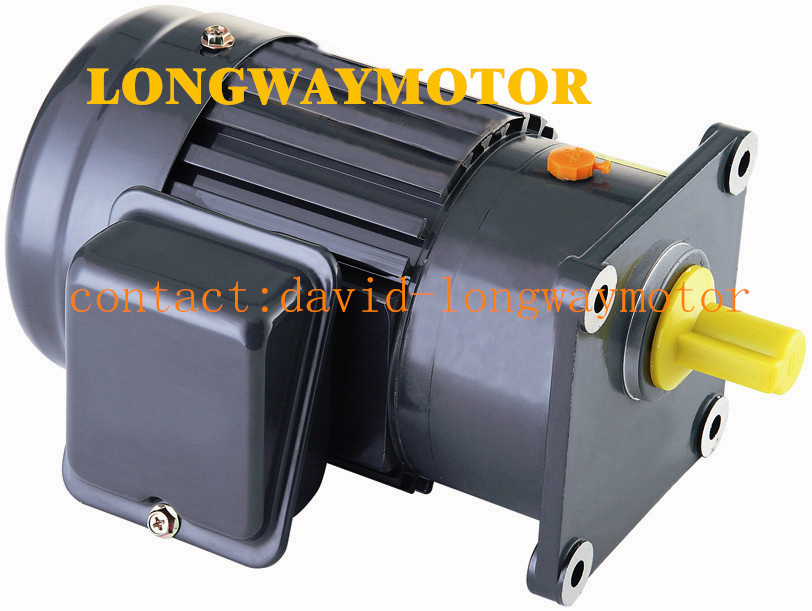

AC Gear Motor

Name: AC Gear Motor
Brand: China-Manufacturer-Directory.com
SKU: 741142495
Availability: InStock
Rating: 4.9 (143 reviews)

Supplier:	Ningbo Yinzhou Longway Technology Co., Ltd.
Price:	US $ 120/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ac gear motor
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Stator:	Three-Phase
Function:	Driving

Product Description

Features:
1.Basic stctrue:CH(Horizonal),CV(Vertical)
2.Output:100W,200W,400W,750W,1500W,2200W,3700W
3.Gear ratio:3,5,10...1800
4.Motor basic data:
S:3-phase motor,220-240/380-415V,50/60Hz
C:1-phase motor,220v,50-50Hz
E:1-phase motor,110v,50/60Hz
DV:Double Voltage motor,110/220V,50Hz/60Hz
Z:Light type duty
5.Brake unit: B: DC90V brake unit YB: With rsisase brake unit
Motor specification:

Item	3-phase motor	1-phase motor
Protection	IP54 with alum alloy terminal box,and other is IP20
Frame material	Alum alloy for 100-2200W Frame,Alum alloy for 1#,2#,3#gear case,4#,5#,6# cast iron for others
Duty	Continuous running
INS.Class	B/F
Environment	Temp:-10---+40centigrade Humidity:<90%
Voltage	220V-240V/380-415V,50/60Hz	110V/50/60Hz,220V/50/60Hz
Pole	4P(6P)	4P(6P)
Height	<1000m
Starting	Direct start	0.1-.02kw capacitor 0.4-1.5kw double capacitors
Standard	GB755/IEC-60034

Main parts notes:

Parts name	Notes
Gearbox	The output shaft diameter of gearbox 1#,2#,3# are 18,22,28mm separately.the material of gearbox is alum alloy.4#,5#,6# are 32,40,50 respectively.Gearbox is made of cast iron.
Gear piece	The material 40Cr mixes to HB280,then dealed with high frequency quencher HRC50.Gear should be processed by milling with high precision.The class is 6.
Gear shaft	The material 20CrMnTi will be changed into HRC60 through processing of cementite quencher.Gear shaft will be processed with gear hobbing.Precision class is 6.
Motor shaft	The material 40Cr mixes to HB280,then dealed with high frequency quencher HRC54.Finally,gear is cut for the second.motor shaft will be processed with gear hobbing.Precision class is 5-6.
Ball bearing	We adopt tight bearing with high precision,to make sure longterm running lift.
Oil seal	Gear shaft gives priorith to enduring high temp,avoiding oil infiltration.
Terminal box	Two type.one is al alloy,which equips good capability of waterproof and dustproof.Protection grade is IP54.The other is steel case with deft structure.Protection grade is IP20.

Gear of small series:
1.The material of rotor is 40Cr,quench to HRC50-55 after rough rolling,two times hard cutting,the gear precision can arrive ISO class6-7.
2.The material of shafe gear is 20CrMnTi,quench to HRC58-61 after rough rolling,two times hard cutting,the gear precision can arrive ISO class6-7.
2.The material of plate gear is 40Cr,quench to HRC48-51 after rough rolling,grind,the precision can arrive ISO class6-7.
Brake series:
1.Economical and compact.
2.High pressure-resistance,good insulation,insulation class F,can work in different kinds of ambient.
3.Long life,adopting abrasion-resistance lead-free,non asbestos friction plate,making sure the long life.
4.It"s selective of assembling hole diameter and easy assembling.
5.Multiple assembling way meets different customers.

Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.

The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.

"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
