Product Specifications
| Prod Model: |
YC SERIES MOTOR |
| Markets: |
North America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Usage: |
Universal |
| Speed: |
Constant Speed |
| Starting Mode: |
Capacitor-start Single Phase Asynchronous Motor |
| Power Source: |
AC Motor |
| Structure: |
Asynchronous Motor |
| Function: |
Driving |
Product Description

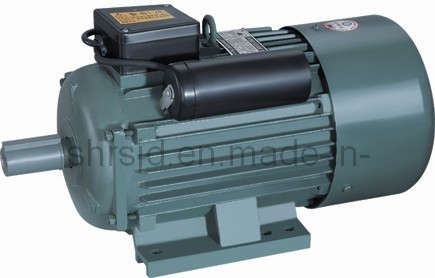

Features of YC Series Single Phase Capacitor Start Asynchronous Motor:
YC Series Single Phase Capacitor Start Asynchronous Motor, has perfect starting torque, outstanding operation performance, low energy consumption, the chassis can be cast in aluminiumor iron.
Applications: Air compressors, refrigerator, power plant, medical devices etc.
|
Model |
Output |
Voltage
(V) |
Current
(A) |
Speed
(r/min) |
Eff (%) |
Power factor |
Frequency Hz |
Tstart/Tn |
Ist/Tn |
Tmax/Tn |
|
KW |
HP |
|
YC80A-2 |
0.37 |
0.55 |
220 |
3.7 |
2880 |
62 |
0.73 |
50 |
2.8 |
6.5 |
1.8 |
|
YC80B-2 |
0.55 |
0.75 |
220 |
5.3 |
2880 |
65 |
0.73 |
50 |
2.8 |
6.5 |
1.8 |
|
YC80C-2 |
0.75 |
1 |
220 |
6.7 |
2880 |
68 |
0.75 |
50 |
2.8 |
6.5 |
1.8 |
|
YC80A-4 |
0.25 |
0.33 |
220 |
3.4 |
1450 |
56 |
0.6 |
50 |
2.8 |
6 |
1.8 |
|
YC80B-4 |
0.37 |
0.55 |
220 |
4.5 |
1450 |
60 |
0.62 |
50 |
2.8 |
6 |
1.8 |
|
YC80C-4 |
0.55 |
0.75 |
220 |
6 |
1450 |
64 |
0.65 |
50 |
2.8 |
6 |
1.8 |
|
YC90S-2 |
1.1 |
1.5 |
220 |
9.1 |
2880 |
71 |
0.77 |
50 |
2.4 |
7 |
1.8 |
|
YC90L-2 |
1.5 |
2 |
220 |
12.1 |
2900 |
72 |
0.78 |
50 |
2.4 |
7 |
1.8 |
|
YC90S-4 |
0.75 |
1 |
220 |
7.7 |
1450 |
67 |
0.66 |
50 |
2.4 |
6.5 |
1.8 |
|
YC90L-4 |
1.1 |
1.5 |
220 |
10.5 |
1450 |
70 |
0.68 |
50 |
2.4 |
6.5 |
1.8 |
|
YC100L-2 |
2.2 |
3 |
220 |
17.1 |
1450 |
74 |
0.79 |
50 |
2.1 |
7 |
1.8 |
|
YC100L-4 |
1.5 |
2 |
220 |
13.5 |
2900 |
72 |
0.70 |
50 |
2.4 |
6.5 |
1.8 |
|
YC112M-2 |
3 |
4 |
220 |
21.4 |
2900 |
76 |
0.84 |
50 |
2.2 |
7 |
1.8 |
|
YC112M2-2 |
3.7 |
5 |
220 |
24.8 |
2900 |
79 |
0.86 |
50 |
2.2 |
7 |
1.8 |
|
YC112M-4 |
2.2 |
3 |
220 |
19.3 |
1450 |
72 |
0.72 |
50 |
2.2 |
6.5 |
1.8 |
|
YC132SA-4 |
3 |
4 |
220 |
25.2 |
1450 |
74 |
0.73 |
50 |
2.1 |
6.5 |
1.8 |
|
YC132SB-4 |
3.7 |
5 |
220 |
30 |
1450 |
75 |
0.74 |
50 |
2.1 |
6.5 |
1.8 |
Aizhou Aoshida Electricity Co., Ltd. ( Shanghai Rongshi Electromechanical Co., Ltd. ) specializes in manufacturing of electric motor(Y, Y2, MS, YD, YVP, YCL, YL, YC, JY, YS SERIES ). Our production base is in Taizhou City, one of the largest industrial bases in China, which possesses matrue industry chain and convenient transportion access. Depending on the complete producing facilities, accurate testing equipments, perfect production process and scientific management system, our skilled workmen produced the excellent motor for our clients. And we can guarantee the stability for our products at a competitive price.
Rongshi electric motor cover nearly all power range, from 0.18KW to 315KW. Both single-phase and three-phase asynchronous electric motors can be manufactured. All products we make have to pass strict inspection before they go out, and are in full compliance with the IEC standards. We can also provide customized strokes according to client requirement.
