Product Specifications
| Prod Model: |
59TYD-FA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Diameter: |
59mm |
| Motor Height: |
93.7mm |
| Application: |
Car |
| Operating Speed: |
Constant Speed |
| Operation Mode: |
Electric Motor |
| Magnetic Structure: |
Permanent Magnet |
| Structure: |
Rotating Pole Type (',Armature Fixed) |
| Number Of Poles: |
Single-Phase |
| Ventilation: |
Closed |
Product Description

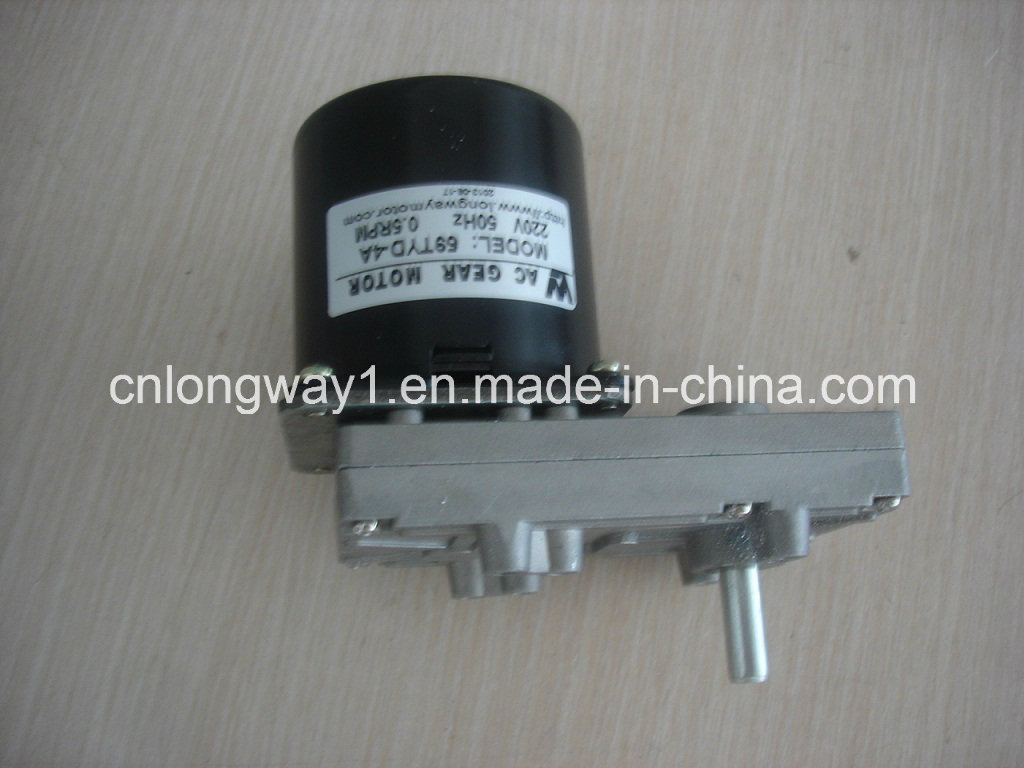

59TYD AC SYNCHRONOUS GEAR MOTOR
Featurers:
Gear box inside
High Torque and efficiency with low noise , light weight
Speed state invariable not effected by voltage under rated frequency
Winding will not ruin when motor over loading or abrupt stop running
Typical Applications:Food machine,Terrace monitor,Electric advertising,Medical apparatus and instruments.
| Item | Date |
| Rated voltage (V) | 24 | 110 | 220 |
| Rated Frequency (Hz) | 50/60 |
| Input Power (W) | <20 |
| Input current (A) | <0.9 | <0.2 | <0.1 |
| Output Power(W) | 5-6 |
| Noise (db) | <45 |
| Rolale direction | CW / CCW/ Bi-directional |
Safety | Item | Date |
| Insulation resistance | DC 500V 100M Ohms |
| Insulation str. | AC 1500V 50Hz/min(220v motor) |
| Insulation class | E(105°C)/ B(130°C) |
| Enviroment | Temp :-10ºC~+40ºC/humidity :<85% |
| Protection | Impedance |
Speed &Torque| Output Speed | RPM | 0.05 | 0.08 | 0.11 | 0.16 | 0.25 | 0.33 | 0.5 | 0.66 | 0.83 | 2 | 3.3 |
| Torque(L2=41mm) | Kg.cm | 400 | 400 | 400 | 400 | 400 | 400 | 350 | 300 | 200 | 150 | 90 |
