ADTECH (Shenzhen) Technology Co., Ltd. >> AC Servo Motor (750W) (ACH-09075B)

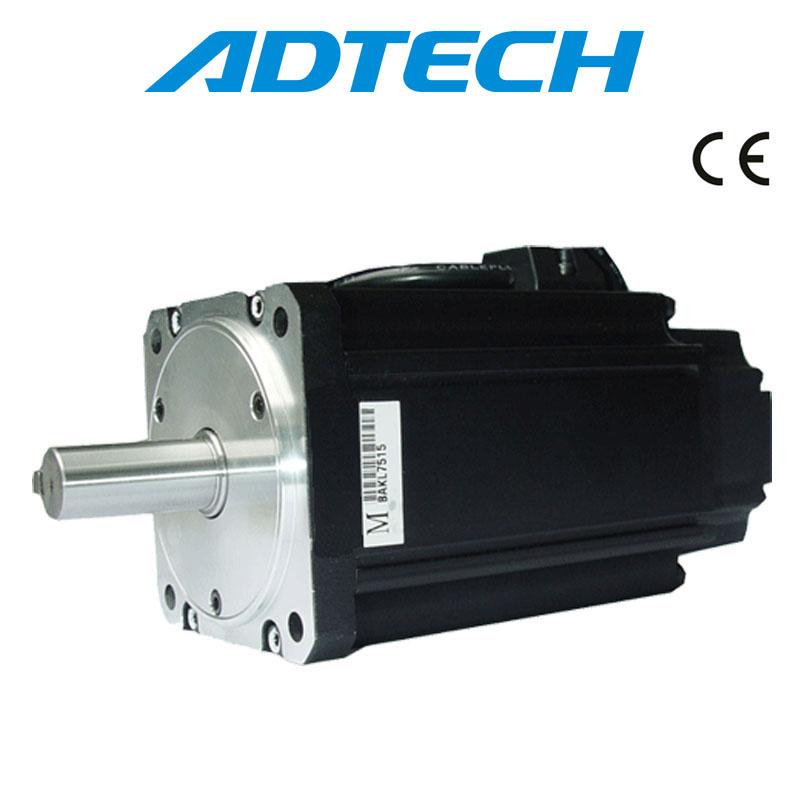

AC Servo Motor (750W) (ACH-09075B)

Name: AC Servo Motor (750W) (ACH-09075B)
Brand: China-Manufacturer-Directory.com
SKU: 651821225
Availability: InStock
Rating: 4.9 (126 reviews)

Supplier:	ADTECH (Shenzhen) Technology Co., Ltd.
Price:	Negotiable
Min Order:	1Set
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	ACH-09075B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Servo Motor
Speed:	High Speed
Power Source:	AC Motor
Function:	Driving
Structure:	AC Servo Motor

Product Description

1. Servo Motor. 750W/2000RPM/3.5NM; Voltage: 220V.
2. High speed and torque AC servo motor;
3. High-stability servo motor;
4. Low noise, low vibration AC motor;
5. High precision motor;
6. Beautiful appearance, easy installation
7. High quality.

Motor model	ACH-09075B
Rated power (W)	750W
Rated rotation (r/min)	2000
Rated torque (N.m)	3.5
Maximum torque (N.m)	10.5
Rated line current (A)	3
Rated line voltage (V)	220
Rotor inertia (Kg.m2×10 -4 )	3.4
Brake	---
Coder line number (PPR)	2500
Suitable drive model	QS5AA020M
Weight (Kg)	3.9
Insulation grade	B
Rating	Continuous
Ventilation protection	Completely sealed, self cooling
Installation mode	Flange (60, 90 110, 130)
Over-heating protection	None
Place, altitude and atmosphere	Indoor, lower than1000m, no corrosive and inflammable gas, dust and oil mist
Ambient temperature and humidity	Environment temperature: -20°C ~+50°C; relative humidity: <90% (no condensing)
