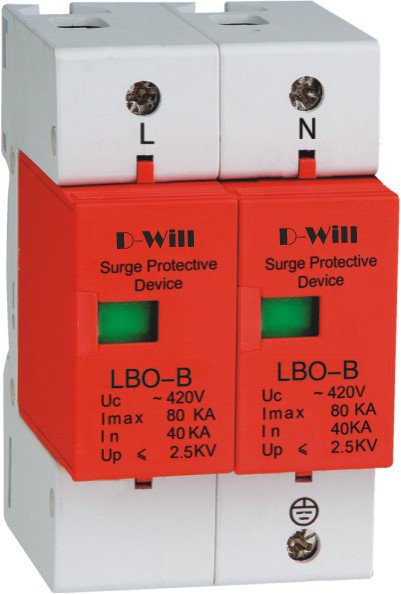

AC Surge Protector

Name: AC Surge Protector
Brand: China-Manufacturer-Directory.com
SKU: 732182165
Availability: InStock
Rating: 4.7 (37 reviews)

Supplier:	Yueqing Dearwill Electric Co., Ltd.
Price:	US $ 1/Piece
Min Order:	20/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	D-Will-LBO-B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Power Source Arrester
Installation:	Parallel Arrester
Structure:	Modular Power Surge

Product Description

1, CE Certification & Test Report
2, Class D, Lower residual, large discharge current
3, Surge Protector

LBO-B series Surge Protection (Surge Protection Device) is suitable for TN-S, TN-C-S, TT, IT etc. Power supply system of AC 50/60Hz, <380V, installed on the joint of LPZ1 or LPZ2 and LPZ3, its designed according to IEC61643-1, GB18802.1, it adopts 35mm standard rail, there is a failure release mounted on the module of surge protection device. When the SPD fails in breakdown for over-heat and over-current, the failure release will help electric equipments separate from the power supply system and give the indication signal, green means normal, red means abnormal, its also could be replaced for the module when has operating voltage.

Product Features
1. Inside over-current and over-heat protection, temperature control open circuit.
2. Module design, convenient installation, could be replaced online.
3. Smallness leak current, response quickly, less residual voltage.
4. Gnal indication device, green(normal), red(abnormal).
5. Technology, highly energy, clearance discharge pole(N-PE)

	Surge Protection Device LBO-B
Maximum Continuous Operating Voltage Uc(V~)	275V	320V	385V	440V
Voltage Protection Level Up(V~)kV	1.2kV	1.5 kV	1.8 kV	2.0 kV

Maximum Discharge Current Imax(8/20µs)kA	80kA
Response Time ns	<25 ns
Test Standard	IEC61643.1, GB18802.1
The Cross Section of L/N Line (mm 2 )	25-35 (mm 2 )
The Cross Section of PE Line (mm 2 )	25-35 (mm 2 )
Fuse or Switch(A)	25A~32A
Operating Environment (centidegree)	-40~+85
Relative Humidity (25 centidegree)	<95%
Installation	Standard Rail 35mm
Material of Outer Covering	Fiberglass PC

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
