I. CH Motion Co., Ltd. >> AC Synchronous Motor Series

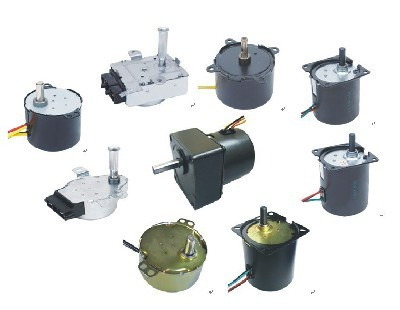

AC Synchronous Motor Series

Name: AC Synchronous Motor Series
Brand: china-manufacturer-directory.com
SKU: 647542195
Availability: InStock
Rating: 4.6 (102 reviews)

Supplier:	I. CH Motion Co., Ltd.
Price:	US $ 5.00-8.00/Piece
Min Order:	1000/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	AC Motor
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	50-70mm
Operating Speed:	Adjust Speed
Application:	Car
Operation Mode:	AC Motor
Magnetic Structure:	AC Motor

Product Description

Applications: They are mainly used in Household Electrical Appliances, HVAC system,Laminator, Auto Control Machine, Spotlight And etc.

Features:
The reducer structure uses the inner gears which are all the precise plastic gears and metal gears. Big starting torque, low noise, the speed is constant, the motor is not broken when stall running

Drawing:

Electrical Specification
SERIES	Figure Size	Output speed (rpm)	Output Torque (kg.cm)			Voltage (V.AC)	Current (A)	Frequency (Hz)	Input Power (W)	Noise (dB)	Rotation
			S1 continuous	S2 15 minutes	S2 5 minutes
S50	50mm	1.6~6	7~25			24 110 220	<0.3 <0.065 <0.033	50/60Hz	4.5	<45	CW,CCW CW/CCW (Free)
S60	60mm	4.6~90	0.6~12	0.6~12.18	0.7~16				<6	<40
S70	70mm	1.5~2.5	11~16			110 220 230	<0.07 <0.35 <0.40		4-6	<45	CW/CCW (Free)
S52	52mm	2	8.7~10				<0.06 <0.03 <0.033		4~4.5	<40	Unidirection / Free
Note: Above datas are from motors under 50Hz. If under 60Hz, Speed*1.2 , Torque/1.2 Other speed and torque needed, please contact our sale department

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
