I. CH Motion Co., Ltd. >> AC Synchronous Motor with High Torque S601

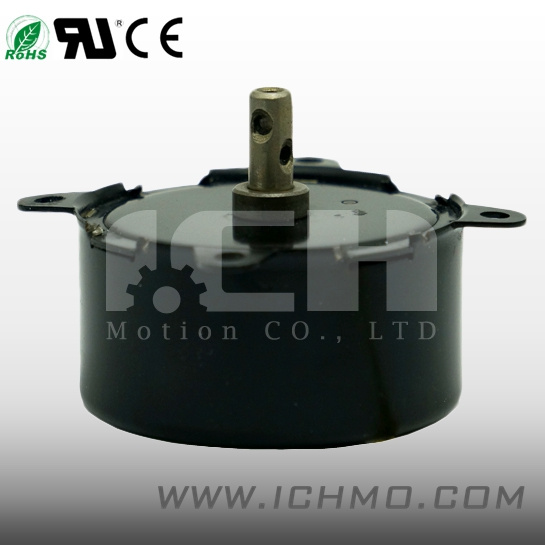

AC Synchronous Motor with High Torque S601

Name: AC Synchronous Motor with High Torque S601
Brand: china-manufacturer-directory.com
SKU: 765128205
Availability: InStock
Rating: 4.5 (52 reviews)

Supplier:	I. CH Motion Co., Ltd.
Price:	US $ 4/Piece
Min Order:	1000/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	S601 SERIES
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	60mm
Output Speed:	4.6-90rpm
Voltage:	24-220VAC
Current:	0.042-0.4A
Frequency:	50/60Hz
Input Power:	6W
Noise:	<40db
Rotation:	Cw/Ccw(Free)
Application:	Car
Operating Speed:	Low Speed
Operation Mode:	Electric Motor
Brand:	I.CH

Product Description

I. CH MOTOR - AC Synchronous Motor S601(60MM)

Specifications:
-Output Speed: 4.6-90RPM
-Voltage: 24-220VAC
-Current: 0.042-0.4A
-Frequency: 50/60Hz
-Input Power: 6W
-Noise: <40dB
-Rotation: Cw/CCW(free)

The application is Laminator, Paper Shredder, Rotating Christmas Tree Stand.

Any requirement, please feel free to contact me, we can make products according your specs and supply the competition price.

Drawing:

Specification
Model	Output speed (rpm)	Output Torque (kg.cm)			Voltage (V.AC)	Current (A)	Frequency (Hz)	Input Power (W)	Noise (dB)	Rotation
Model	Output speed (rpm)	S1 continuous	S2 15 minutes	S2 5 minutes	Voltage (V.AC)	Current (A)	Frequency (Hz)	Input Power (W)	Noise (dB)	Rotation
S601-12-4.6	4.6	12 / 10.44	14 / 12.18	16 / 13.92	24 ******* 110 ******* 220	<0.4 ******** <0.084 ******* <0.042	50/60Hz	<6	<40	CW,CCW CW/CCW (Free)
S601-05-10	10	5.5 / 4.82	6.5 / 5.66	7.5 / 6.53
S601-04-15	15	3.5 / 3	4.3 / 3.74	5.0 / 4.35
S601-03-20	20	2.8 / 2.43	3.2 / 2.78	3.7 / 3.22
S601-02-30	30	2 / 1.74	2.2 / 1.91	2.5 / 2.18
S601-01-50	50	1.2 / 1.04	1.3 / 1.13	1.5 / 1.31
S601-01-60	60	1 / 0.87	1.1 / 0.96	1.2 / 1.04
S601-01-90	90	0.6 / 0.52	0.7 / 0.6	08 / 0.7
Note: Above datas are from motors under 50Hz. If under 60Hz, Speed*1.2 , Torque/1.2 Other speed and torque needed, please contact our sale department

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
