Product Specifications
| Prod Model: |
DC02 access control panel |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| PCB Board Size: |
160mm Long * 106mm Wide |
| Case Size: |
273mm * 228mm * 65mm |
| Power Supply: |
12VDC 4-7A |
| Circuit Board Power Consumption: |
Less Than 100mA |
| Reader Input Format: |
Wiegand 26 |
| Means Of Communication: |
TCP/IP 10m/100m Self Adaptive, Webserver |
| Quantity Of Reader: |
4PCS |
| Can Control The Gate Output Relay: |
2pair |
| Open Delay Time: |
1-600 Seconds Adjustable |
| Record The Number Of Offline Storage: |
100,000 Records |
| Communication Interface: |
Wiegand in/out |
| Fingerprint Capacity: |
20,000 Cards Permissions |
Product Description

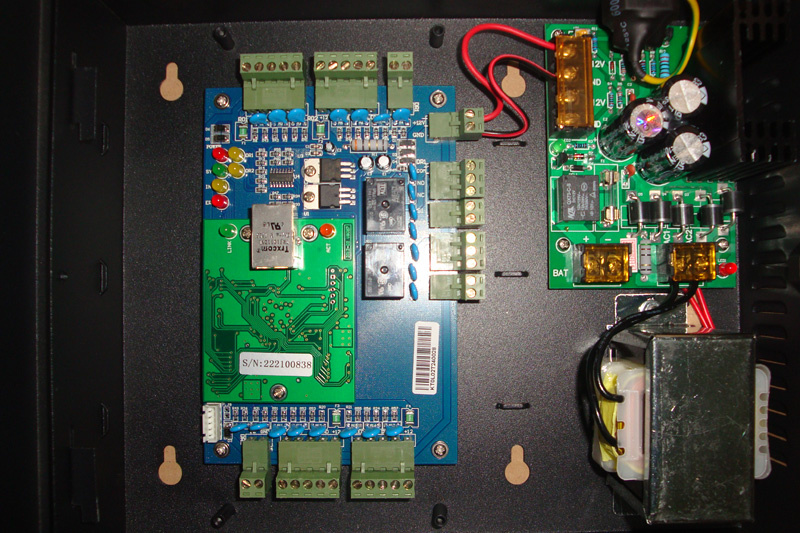

Access Control Panel with Door Access Control software
Specifications:
Access Control Panel
1.2 doors, 4 Readers double way
2. Webserver
3. TCP/IP network
4. Anti-pass back, Inter Lock
Product Introduction:
The Access Control Panel provide the solution for powerful combinations of access control and alarm monitoring within off-line networks.
The user-friendly Access software programs the system within a few minutes, from a non-dedicated PC. Access Software provides numerous access control and alarm monitoring features: expiry date for clubs, automatic activation, interlock between two doors, time zones, supervision, anti-passback, activity reports.
Each alarm input is programmable: operating mode (NO or NC), time zones, local reflex (activation of outputs according to input status). Specific alarms are triggered according to the number of unsuccessful attempts, the time limit for door closing (door alarm), the duress code.
Whenever required, the data stored in the controllers is transferred to the computer and activity reports are printed. Each controller works independently and keeps its own database.
Parameter index:
Product Parameter | Parameter Description |
| PCB board size | 160mm long * 106mm wide |
| Case Size | 273mm * 228mm * 65mm |
| Power Supply | 12VDC 4-7A |
| Circuit board power consumption | less than 100mA |
| Reader Input Format | Wiegand 26 |
| Means of communication | TCP/IP 10M/100M self adaptive |
| Function Description | can control two doors, enter via card swiping and exit via card swipping or button |
| Quantity of reader | 4pcs |
| Can control the gate output relay | 2pair |
| Open delay time | 1-600 seconds adjustable |
| Maximum number of connections | No limite |
| Operating temperature | -40 to 70 degrees Celsius |
| Run Humidity | 10-90% RH, non-condensing |
| Weight | 2.1kg |
| Signal output communication format and baud rate | Support LAN,Intranet, fix Ipinternet WAN |
| User registration card qantity | 20,000 cards Permissions, WEBServer Supported |
| Record the number of offline storage | 100,000 records |
| Power failure protection measures | high-speed flash memory design, and never lose data |
| Max distance between reader to the controller | 100 meters, suggest within 80 meters |
| Max distance for the bus line | Depends on network cover area |
| Max distance between controller to the PC | No limite
|
Our advantage:
1. Professional R&D department, can offer you OEM/ODM services;
2. Professional technique supports and good service;
3. We strictly control the quality and regard it as our base for existence! QC staffs make piece-by-piece checks for all products.
Products are conducted aging test for 72 hours.
4. Our products are chosen high quality materials and ensure the prophase stability.
5. Our products meet ISO, CE, FCC, RoHS certificates
