Access Control Proximity Smart Key Card

Access Control Proximity Smart Key Card
Supplier: Sails RFID Smart Card Technology Co., Limited
Price: US $ 0.13-0.16/Piece
Min Order: 500/Piece
Quantity::
Trade Terms: FOB,CIF,CIP
contact supplier

Product Specifications

Prod Model: 125KHZ T5577, 13.56MHZ M 1 S50, F08
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function: Identification, Encrypt/Decrypt, Information
Type: Logic Encryption Card
Material: PVC
Read-Write Method: Non-Contact Type
Label Category: Passive
Structure: Read-Write Card
Power Supply Mode: Passive Card
Data Transmission Mode: Parallel

Product Description

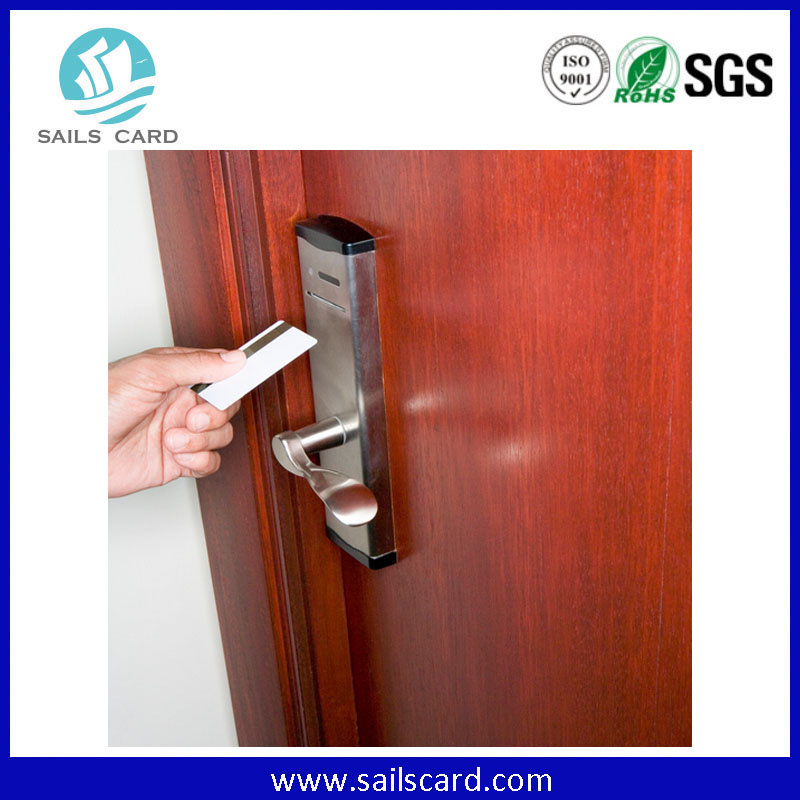

Hotel RFID  Key card/access control card specifications

125KHZ T5577 RFID chip,or 13.56MHZ Mifare 1k S50 RFID chip,are widely used as hotel/warehouse key card,access control card/tag and etc


Material

PVC / PET/Teslin

Size

85.5*54mm

Thickness

0.76-0.9mm

Printing

Silk-screen printing, CMYK printing, laser printing,offset printing etc.

Personazation
or
special craft

Lamination: Glossy, matt or frosted
For reprinting
Protection film on both sides
Signature panel
Scratch-off panel
UV coating
Thermal printing in black or silver color: for changing numbers or information
Laser engraving numbers
Metallic printing in gold or silver background
Embossing numbers or letters in silver or gold color
Barcode: 13 barcode, 128 barcode, 39 barcode, QR barcode, etc.
Magnetic stripe: Loco or Hico magnetic stripe
Key fob: can be snapped off to smaller pieces

125kz Chip Available:

EM4100, EM4205, EM4305, EM4450, TK4100, T5577 ,TK28,

13.56Mhz Chip Available:

NXP Mifare 1K S50/ NXP Mifare 4K S70/ Mifare Ultralight NXP ICODE SLI-X(1024bits) NXP ICODE SLI(1Kb) NXP ICODE SLI-S(2Kb)
NXP NTAG203 NXP Mifare Desfire EV1 4K NXP Mifare Desfire EV1 8K Tag-it HF-1 Plus(TI 2048, TI 2K) Mifare 1K-Compatible: FM11RF08(F08)/Huada S50 Mifare 4K-Compatible: FM11RF32/Huada S70

Card Type

barcode card, magnetic card, blank card, blank chip card, thick id card, transparent card etc.

Applications

Hotel/ware house key card,access control card,ticket card,ID card,so on


Other contact IC key card options

FactoryModel numberSpecification
SIMENSSLE5542(4442)256bit encryption card,can read data,write data and password,protect data and write password.
ISO 7816 Compliant pad locations
256*8 bit EEPROM organization
byte-wise addressing
Irreversible byte-wise write protection of lowest 32 addresses (byte 0-31)
32*1 bit organization of protection memory
2-wire link protocol
Answer to reset according to ISO standard 7816-3
Programming time 2.5mS per byte for both erasing and writing
Minimum of 10000 write/erase cycles
Data retention > 10 years
Programmable Security Code (PSC)
Data write only after correct 3-byte PSC
SLE5528(4428)ISO 7816 Compliant pad locations
1024*8 bit EEPROM organization
byte-wise addressing
Irreversible byte-wise write protection of lowest 32 addresses (byte 0-31)
32*1 bit organization of protection memory
2-wire link protocol
Answer to reset according to ISO standard 7816-3
Programming time 2.5mS per byte for both erasing and writing
Minimum of 10000 write/erase cycles
Data retention > 10 years
Programmable Security Code (PSC)
Data write only after correct 3-byte PSC
Shanghai FudanFM4442256bit encryption card,can read data,write data and password,protect data and write password.(compatible SLE4442)
FM24C1616Kbit
FM44281024bit encryption card,can read data,write data and password,protect data and password operation.(compatible SLE4428)
Shanghai BeilingBL7442256bit
BL24C044Kbit
ISSIISSI4442256bit
ISSI24C1616Kbit
ISSI44288Kbit
ATMELAT24C011Kbit(stop production)
AT24C022Kbit
AT24C044Kbit
AT24C1616Kbit
AT88SC1021Kbit



Other RFID Chip Options
Frequencychip typeMemoryRF Standard
125KHzEM4100,EM410264 bit R/OISO 18000-2
EM420064 bit R/OISO 18000-2
EM4205,EM4305512 bit R/WISO 11784/11785
EM4450,EM45501K bit R/WISO 18000-2
T5577330 bit R/WISO 18000-2
Hitag 12K bit R/WISO 18000-2
Hitag 2256 bit R/WISO 11784/11785
Hitag S20482K bit R/WISO 11784/11785
13.56MHzMF Classic 1k S501K Byte R/WISO 14443A
MF Classic 4k S704K Byte R/WISO 14443A
MF Ultralight512 bit R/WISO 14443A
MF Ultralight  C192 bit R/WISO 14443A
MFUltralight  EV1384/1024 bit R/WISO 14443A
MF  DESFire EV1 2K2K Byte R/WISO 14443A
MF  DESFire EV1 4K4K Byte R/WISO 14443A
MF  DESFire EV1 8K8K Byte R/WISO 14443A
MF  DESFire  4K D404K/8K Byte R/WISO 14443A
MF  Plus 2k2K ByteISO 14443A
MF  Plus 4k4K ByteISO 14443A
I CODE SLI1K bit R/WISO 15693, ISO18000
NTAG203/203F144 Byte R/WISO 14443A
NTAG21048 Byte R/WISO 14443A
NTAG212128 Byte R/WISO 14443A
NTAG213/213F144 Byte R/WISO 14443A
NTAG215504 Byte R/WISO 14443A
NTAG216888 Byte R/WISO 14443A
NTAG213F/216F144/888 byteISO 14443A
FM11RF081K byteISO 14443A
FM11RF324K byteISO 14443A
Topaz512(BCM20203)512 byteISO 14443A
Felica Lite-S(RC-S966)14 blocks+1 subtraction block(1 block= 16 byte)ISO/IEC 18092
Legic MIM 256256/1K Byte R/WLegic RF Standard
TI20482K bit R/WISO 15693, ISO18000
Picopass 2k2K/32K bit R/WISO 14443B, ISO 15693
UHF/2.45GHzUCODE HSL2K bit R/WISO 18000
860~960MHzUCODE EPC G2512 bit R/WEPC class1,G2
Monza 5128 bit R/WEPC class1,G2,ISO 18000-6C
Monza 4D/4E/4QT128 bit R/WEPC class1,G2,ISO 18000-6C




We, Sails RFID Smart Card Technology Co., Limited, focus on the manufacture & sale of LF/HF/UHF RFID label/tag, contact/contactless smart cards, plastic/paper cards, and card related products.

Our main products are: Contact/contactless smart cards with original chip or Chinese compatible chip, PET/paper RFID label, RFID dry/wet inlay, RFID wristband/keytag, NFC tag, one-time use microchip for animal ID, epoxy tag, smart cards inlay, membership VIP cards, gift cards, discounting cards, magnetic stripe cards, barcode/QR code cards, scratch cards, 3D lenticular cards, ID photo cards, un-standard snap off cards, etc. Our products are widely used in smart city constructure, public trsnsportation, supply chain logistics, warehouse asset management, anti-theft, animal ID tracking, campus/community access control, shop chain/club/hotel membership management, and etc. We have provided many clients both at home and abroad with millions of smart cards & RFID, plastic cards, and card related products. Such as paper/plastic card holder, card book, card/RFID reader and etc.

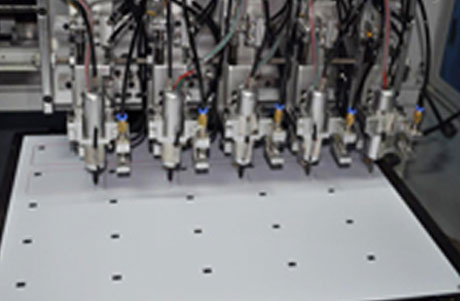

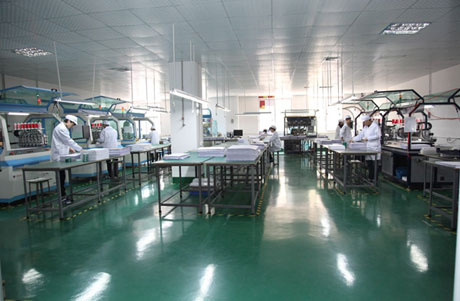

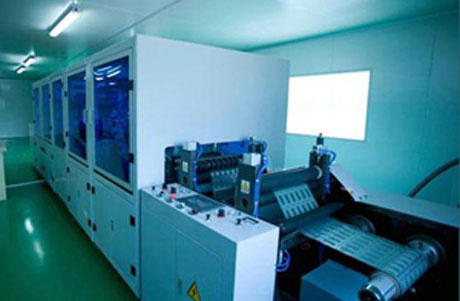

We have advanced card manufacture machine. Such as 5 color Heidelberg offset printer, 2 high-precision production lines for RFID label/inlay, 3 production lines for smart cards, plastic cards(please check details in Equipments). And we have dust-free workshops which reach ISO standard with 24 hours CCTV monitoring.

We are experienced in developing, production & sale of smart cards, RFID & plastic/paper cards. Very competitive price and large daily capacity are our advantages.

Seeing is believing. You are warmly welcome to visit our company. We are sure that you will be satisfied with our good products and our good service. Finally, you will be happy with long-term co-operation with us.
