Price: | US $ 30/Piece |
---|---|
Trade Terms: | FOB,EXW,CIF |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Prod Model: | ACR38 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Dimensions: | 97mm (L) X 72mm (B) X 18.5mm (H) |
Installation: | External (',634) |
Card Slots: | Single |
Interface: | USB |
Type: | SIM Card |

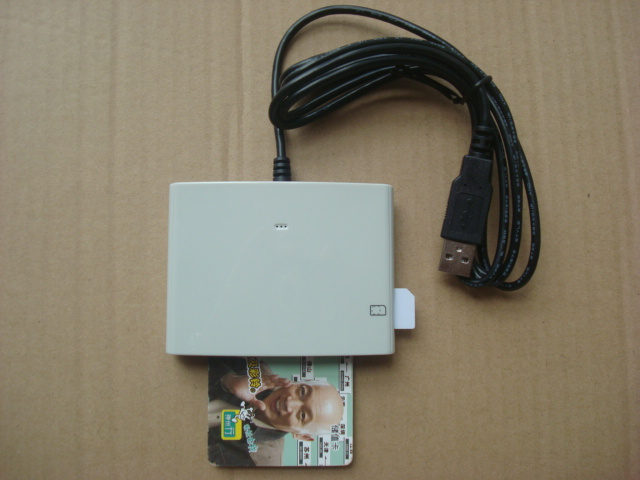

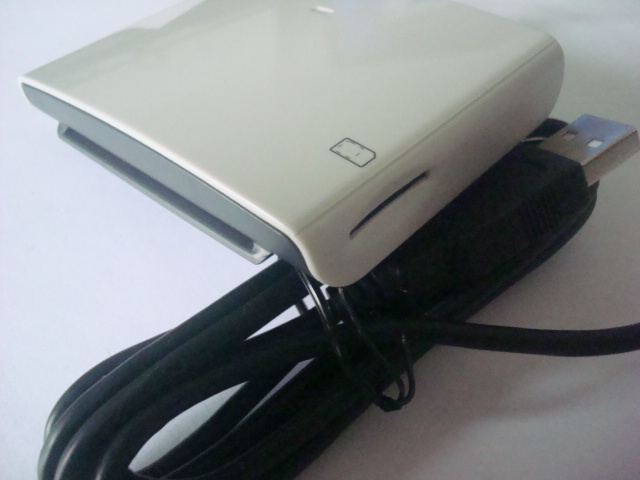

ACR38 New USB EMV IC Card Reader with Sdk, ACR38 Smart Card Reader
Introduction:
The CCID smart card reader/writer is a USB full speed device, which is the interface for the communication between a computer and a smart card. It is designed for PC environment, ultimate smart card peripheral for a PC.
CCID reader is intended to be compatible with .NET Windows platforms being developed by Microsoft Corporation.
CCID is a key partner of PC as a smart card is widely a main component in network security and electronic payment system. Providing secured network computing environment by its data encryption function, the SDK package allows users to easily develop their own application to best meet the specific system needs.
Features:
USB full speed interface to PC with simple command structure
Read and write all microprocessor cards with T=0 or T=1 protocols
Supports SLE 4418/28/32/42 memory cards
Supports most common memory-based smart cards, including I2C bus protocol cards (from 1k bits up to
1024k bits) and secure memory cards (Atmel AT88SC153 and AT88SC1608)
Support 1.8V. 3V and 5V MCU cards
Short Circuit Protection
Certificate of conformance: ISO 7816-1/2/3, PC/SC, CE, FCC, Microsoft WHQL, EMV certified
ISO7816-1/2/3 compatible smart card interface
Support PPS (Protocol and Parameters Selection) with 1743 - 305200 bps in reading and writing smart cards
768 bytes RAM size and 16K bytes ROM size
Typical Applications:
Home Shopping
Electronic Commerce
Checking the balance of account of re-loading an electronic purses
Network access control
S/W locking
Digital signature
Loyalty and promotions
Stored value
Identification
Ticketing
Parking and toll collection
Technical Specification:
Universal Serial Bus Interface
Type..................................USB v2.0 full speed, four lines: +5V, GND, D+ and D-
Power source......................From USB
Smart Card Interface
Standard............................. ISO 7816 1/2/3, T=0 and T=1
Supply current..................... max. 50mA
Smart card read / write..........speed 1743 - 305200 bps
Short circuit protection........... +5V / GND on all pins
The presence of the smart card power supply voltage is indicated through a green LED on the reader
CLK frequency........................ 4 MHz
Card connector .......................Contact
Card insertion cycles................min. 100,000
Case
Dimensions..............................97mm (L) x 72mm (B) x 18.5mm (H)
Color.......................................Golden
Operating Conditions
Temperature............................. 0 - 50° C
Humidity.................................. 40% - 80%
Standard/Certifications
EMV Level 1, ISO7816-1/2/3, PC/SC, CE, FCC, Microsoft WHQL 98, ME, 2K, XP
OS
Windows 98, ME, 2K, XP, .NET
OEM
OEM-Logo possible, customer-specific colors, casing, and card connector
