Active Speaker Professional Audio Line Array

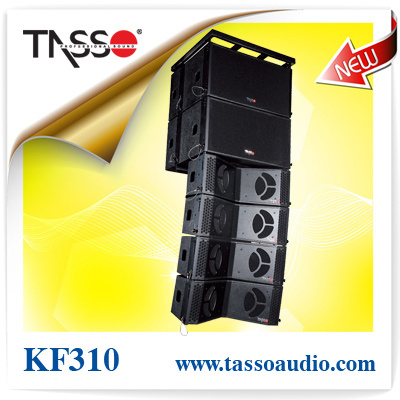

TASSO never stops it pace to be excelsior. After the successful launch of KF208 and KF210 in its Mini Line Array Series which has been a hot sales in world market, we are now unveiling a new Mini Line Array KF310.
New KF310 equipped with two custom-made 10" loudspeakers symmetrically and oppositely placed in the plywood enclosure with an angle of 120° Like a butterfly. This structure helps to concentrate the airflow and convey a directional sound. A 2" driver (titanium diaphragm) followed by a unique wave adapter with horn, it enables KF310 delivers an even sound pressure to audience from near field to far field without compromising clean transparence.
Integrated hanging system including easy studs for connecting speakers, hanging cradle, hoist, etc makes the system convenient for mobile performance. Flying hardware provides for splay angles from 0° To 6.0° With an increment of 1.5° , providing a seamless array.
|
Model |
KF310 |
KF310A |
|
|
|
|
|
Type |
2-way full range |
Active 2-way full range |
|
Components |
10"×2+2"+Horn |
10"×2+2"+Horn |
|
Frequency Response |
55Hz-20KHz |
55Hz-20KHz |
|
RMS Power Handling |
500W |
500W |
|
Peak Power Handling |
1000W |
1000W |
|
Nominal Impedance |
4Ω |
4Ω |
|
Sensitivity(1W/1M ) |
104dB |
104dB |
|
Max. SPL |
132dB |
132dB |
|
Connectors |
2×NL4 |
2×NL4 |
|
Horn throat size |
1"(25mm) |
1"(25mm) |
|
Voice coil size |
2"(44mm) |
2"(44mm) |
|
Crossover |
1.8KHz |
1.8KHz |
|
Dimensions HWD(mm) |
320×820×550 |
320×820×550mm |
|
Shipping HWD(mm) |
375×940×620 (0.22CBM) |
375×940×670mm (0.24CBM) |
|
NW/GW(Kg) |
35/39 |
49/51 |
Guangzhou TASSO PRO Audio Co., Ltd. is specialized in research, development and manufacture of PRO audio products (stage audio products) including Professional Speaker, PA Louspeaker, Line Array Speaker system, Professional Audio, PA Amplifier, Power Amplifiers, Professional Amplifier, Digital Amplifier, Switching Power Amplifier, Professional Sound, Professional Mixers, Processors, PA System, Karaoke Equipment, etc.
Rapid growth in export business recent years thanks to strict QA managment, effective marketing and excellent product image.
Products have been exporting to over 50 different countries and regions. TASSO, which is for export only, has become a well-recognized brand name in the industry worldwide.
