Product Specifications
| Prod Model: |
ADT-TP3840DJ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Glue Dispensing controller application:
Multicolor trademarks, adhesive badge, nameplate, photo frame, shoes plastic dropping, etc.

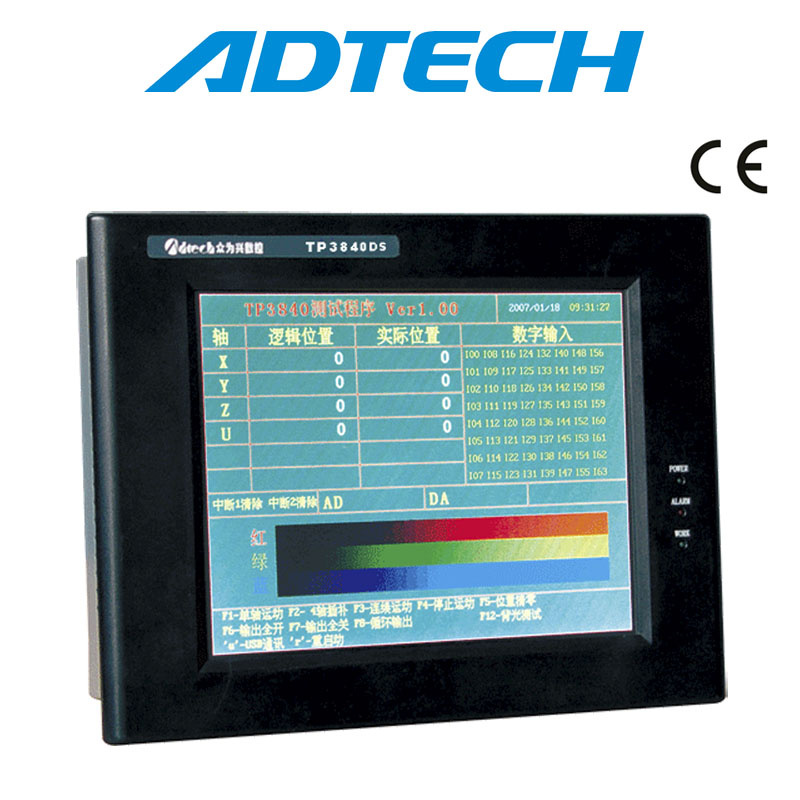

ADT-TP3840DJ Controller for Automatic Glue Dispensing
2-6 DOF space track motion (space straight line, arc, and helical curve)
Real time multi-task control technology and hardware interpolation technology ensure high reliability.
Support control of 4-8 adhesive injecting terminals;
Use speed perspective arithmetic, automatic smooth corner speed, ensuring smooth process;
Have abundant instruction sets: motion instructions such straight line, arc, single point and ellipse, and instructions such as port output, waiting input, delay pause, selecting glue gun, resetting motor, etc.
Advanced edit functions, including batch modification, array copy, graph shift, graph zooming, automatic rounding, common graph library, etc.
Importing computer graphs: convert the graphs in the computer to PLT files or G code files, and then convert to process files of adhesive injecting machine through the controller. Each process file can save 100,000 process points.
Graph display function: display the graphs in the process files intuitively and display the process track dynamically in real time.
Track lag adhesive open and advance adhesive close function, eliminating the adhesive stacking problem at the start point and end point.
The process mode supports circular process, single process, automatic process, single step process, etc.
File instruction and edit function, provide advanced edit functions such as batch modification, array copy, graph shift, graph zooming and automatic rounding; common graph library is also available;
Flash memory reading-writing function: read and write process files in flash memory disk.
Convenient help system, calling out help document by pressing Shift+F1 in any interface
Function Description
The controller uses 10.4 inch true color touch screen human-machine interface, casting off the computer control;
Three/four-axis stepping/servo plane or 3D control
Support 8 colors, and 8 lines of output are available
The parameters of the controller are classified, ensuring simple debugging
Use adhesive guns separately or in combination
Profile modeling instruction, or import NC, PLT format to generate process files
Support uploading/downloading through flash memory disk
One product contains two groups of points (1-A, 1-B), and the adhesive injecting sequence of every group can be customized
Produce two or more kinds of products alternatively
Select in random (appoint any tip to inject adhesive)
Peculiar track display and tracing function, displaying the gun and color of every track section in real time
Real time online speed adjustment improves the process efficiency
The software can be customized according to requirements
