Jota Machinery Industrial (Ruian) Co., Ltd. >> Adhesive Label Sticker Printing Machine Printer Machine

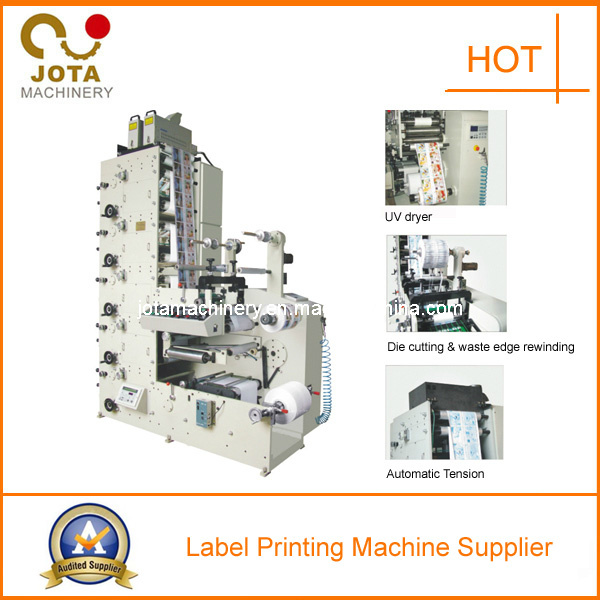

Adhesive Label Sticker Printing Machine Printer Machine

Adhesive Label Sticker Printing Machine Printer Machine
Supplier: Jota Machinery Industrial (Ruian) Co., Ltd.
Price: US $ 100-40000/Set
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: JT-FPT-320
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
All Parts: Thermal Treated
Rewinding Type: Magnetic Clutch for Rewinding Tension
Speed: 60m/Min
Inverter: Panasonic From Japan
Colors: 1-6 Colors Available
Die-Cutting: Available, One Die-Cutting Station
Printing: by Ceramic Anilox Cylinder
IR Dryer: on Each Printing Unit
Unwinding Type: Magnetic Brake for Unwinding Tension
Unwinding Auto Tension: From Mitsubishi
Color & Page: Multi-Colour Printing Press
Style: Flexographic Printing Presses
Structure: Flat-bed Cylinder Press
Type: Ink Jet Type

Product Description

Adhesive Label Sticker Printing Machine Printer Machine

Ceramic Anilox Cylinder
Doctor Blade
Magnetic Powder Brake/Clutch
UV dryer

Specifications:
--Adhesive Label Sticker Printing Machine Printer Machine adopts the ceramic anilox cylinder to transfer the ink.
--Unwinding and rewinding are controlled by magnetic powder brake/clutch
--Each printing unit adopts 360° Plate adjustment
--Each printing unit equips with IR drier
--This machine with one die-cutting station, which makes printing and die-cutting can be finished in one precess.

--The ink rollers will be separated from the printing rollers, and keep running when the machine stops.
--The main machine inverter is imported.
--The machine can finish material-feeding, printing, varnishing, drying, laminating, rewinding and die-cutting in a lump. It is an ideal machine for printing note and top-grade adhesive label.


If you need more information, please feel free to contact us! !
Model JT-FPT-320 Adhesive Label Sticker Printing Machine Printer Machine
Printing speed 10-60 m/min
Printing color4 4 colors
Max. web width 330 mm
Max. printing width 320 mm
Max. unwinding diameter 500 mm
Max. rewinding diameter 500 mm
Printing length 175-380 mm
Power 5.5kw
Paper Thickness 60-250g
Precision ±0.10mm
Voltage Three-phase,four-wire,380V,50HZ
Weight 1900KGS
Overall Dimensions(LxWxH) 2000x 1100 x 2200mm
Focusing on the Environment and Labor Safety, Jota Machinery Industrial (Rui'an) Co. Ltd is specialized in the Paper Slitter Rewinder, Paper Sheeter, Coating and Laminaiton as well as the complete range of other converting equipment with Innovance and high Technology.
