Product Specifications
| Prod Model: |
545043 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Compatible With 5 V\3.3 V: |
The Input Voltage: 6.5-12 V (DC) or USB Power Supp |
| The Output Voltage: 3.3 V Or 5 V And Can: |
Maximum Output Current |
| Fit 2.54mm Pitch Breadboard: |
Good Item for Project with Arduino, 8051, AVR, Pi |
Product Description

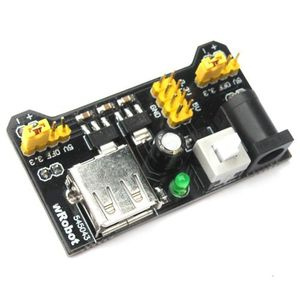

Djustable Breadboard Power Supply V2.0 can directly takes power from DC wall wart and outputs a selectable 5V or 3.3V regulated voltage.
Compare to other breadboard power supply designs, this one provided USB Type-A port like the Arduino family, you can toggle the switch and select your power source. (USB or DC jack). We also used JST-2pin power jack, the one as on Arduino family,
With this board, you can send power to both power lane of the breadboard, and each side has a on/off switch.
Feature:
1, Compatible with 5 V, 3.3 V
2, The input voltage: 6.5-12 V (DC) or USB power supply
3, The output voltage: 3.3 V or 5 V and can switch over according to your need
4, Maximum output current: < 700 ma
5, Independent control for two channel, and can switch over to 0 V or 3.3 V or 5 V according to your need
6, On-board two groups of 3.3 V, 5 V DC output plug needle, convenient for external useage
7, Fit 2.54mm pitch Breadboard
8, Power LED
9, PCB Size: 35mm*55mm
10, Good item for project with Arduino, 8051, AVR, PIC, DSP, ARM
