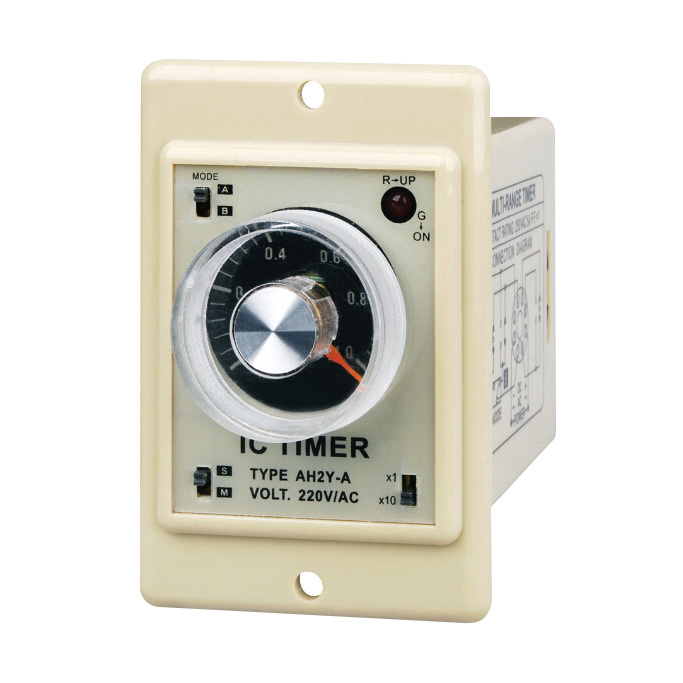

Adjustable Time Delay Relay

Name: Adjustable Time Delay Relay
Brand: China-Manufacturer-Directory.com
SKU: 758843415
Availability: InStock
Rating: 4.4 (147 reviews)

Supplier:	WENZHOU PNV TRADING CO., LTD.
Price:	US $ 3.0/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	AH3-N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage: Auto:	Size: Miniature
Theory: Time Relay:	Contact Load: Low Power
Protect Feature: Sealed:	Pins: 8

Product Description

Specifications

Adjustable Time delay relay
1,competitive price
2,5 years warrenty time

Adjustable Time delay relay

DATA:

Dimensions:50H*40W*57.5D

Surface:PF083A(E)

Flush:US-08P3G-08

Full timing range: SEC:1,3,6,10,12,30,60

MIN:3,6,10,12,30,60

HR:3,6,10,12,30

Rated Voltage: DC(V):12,24

AC(V):12,24,110,220,240,380,50/60Hz

Indicator Operation:ON-UP Operation

Life:Mechanical:5*1000000times

Electrical:100000times

Reset time:0.1 sec max

Consumed Power:2VA

Ambient Temperature:-10°C~+55°C

Ambient Humnidity:48~85%RH

Weight:160g

Voltage	DC12V-48V AC12V-380V50HZ
Power expend	DC1.0W AC1.0VA
Control output	5A220VAC
Insulation Resistance	DC500V 100MΩ
Dielectric Strength	BCC1500VAC BOC1000VAC
Operating Temperature	-10~50
Huminity	35%~85%
Life	Mech:107 Elec:103
Weight	≈170g

Time range

Time Unit	s	m	h	10h
Nominal Unit
0.5	0.05-0.4			0.5-5h
1.0	0.1-5			1-10h
5.0	0.5-5			5-50h
10	1-10			10-100h
