Supplier: | Shanghai Hanton Machinery Co., Ltd. |
---|---|
Price: | US $ 1000/Set |
Min Order: | 1/Set |
Quantity:: | |
Trade Terms: | FOB,CFR,EXW |
Payments: |
|

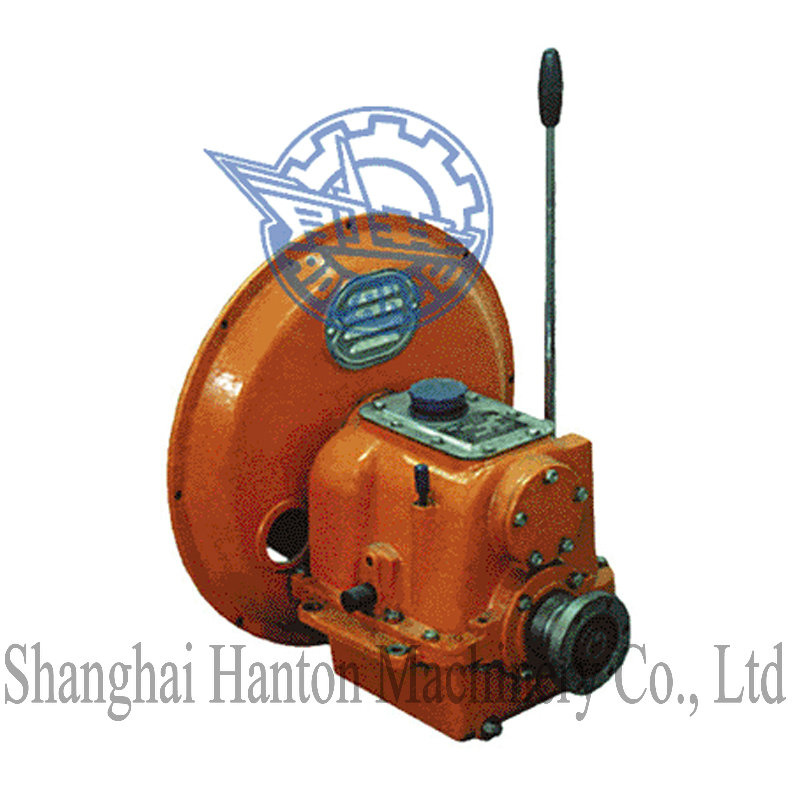

Prod Model: | 06 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brand: | Advance |
Model: | 06 |
Maximum Input: | 12.5HP 2100rpm |
Engine Speed Range: | 1000-2100rpm |
Reduction Ratio: | 2.52, 3.05, 3.50 |
Center Distance: | 124mm |
Net Weight: | 58kg |
Overall Dimension: | 350*316*482mm |
Typical Engines: | Yanmar Ts130, Ts155, Hatz E786 |
Manufacturing Method: | Cast Gear |
Toothed Portion Shape: | Bevel Wheel |
Type: | Circular Gear |
Model | Max Power Input (hp/rpm) | Speed Rang (rpm) | Reduction Ration | Weight | Suitable Engines |
06 | 12.5/2100 | 1000-2100 | 2.52/3.05/3.50 | 58kg | Yanmar TS130/TS155 Hatz E786 |
16A | 33/2000 | 1000-2000 | 2.07/2.48/2.95/3.35/3.83 | 84kg | MWM D226-2, Hatz 3M31 |
MA100A | 37/3000 | 1500-3000 | 1.6/2/2.55/3.11/3.59/3.88 | 75 | Isuzu UM02AB1, Yamaha ME125 |
MA125 | 82/3000 | 1500-3000 | 2.03/2.46/3.04/3.57/4.05 /4.39/4.7 | 115 | Isuzu UM02AB1, Yamaha ME125 |
MA142 | 102/2500 | 1500-3000 | 1.97/2.52/3.03/3.54/3.95/4.5 | 140 | Cummins 4BTA3.9-M MWM D226-4 |
40A | 82/2000 | 750-2000 | 2.07/2.96/3.44 | 225 | Yanmar ME400L, Baudouin 4D |
MB170 | 132/2500 | 1000-2500 | 1.97/2.52/3.04/3.96/4.5/5.06 /5.47/5.88 | 240 | MWM D226-6, Yamaha ME400L |
HC65 | 163/2500 | 1000-2500 | 1.53/2.03/2.5/2.96 | 130 | 6BT5.9-M |
120B | 750-1800 | 2.03/2.81/3.73 | 400 | ||
120C | 340/2500 | 1000-2500 | 1.48/1.94/2.45/2.96/3.35 | 225 | Cummins NT855-M240, CAT 3208TA |
MV100 | 408/3000 | 1500-3000 | 1.23/1.62/2.07/2.52/2.87 | 220 | NT855-M240, MWM D234 V8 |
135A | 272/2000 | 1000-2000 | 2.03/2.59/3.04/3.62/4.11/4.65 /5.06/5.47/5.81 | 470 | NT855-M240, CAT 3406 |
HCQ138 | 390/2600 | 1000-2600 | 1.03/1.5/2.03/2.48/2.95 | 200 | NT855-M240, CAT 3406 |
HC138 | 375/2500 | 1000-2500 | 2/2.52/3/3.57/4.05/4.45 | 360 | 6135Ca, NT855-M240 |
HCD138 | 375/2500 | 1000-2500 | 5.05/5.63/6.06/6.47 | 415 | 6135Ca, NT855-M240 |
HCA138 | 390/2600 | 1000-2600 | 1.095/1.28/1.5/2.03/2.52/3 | 200 | NT855-M240, MWM D234 V8 |
MB242 | 350/2500 | 1000-2500 | 3.04/3.52/3.95/4.53/5.12 /5.56/5.88 | 385 | NT855-M240, CAT 3406 |
HC200 | 440/2200 | 1000-2200 | 1.48/2/2.28 | 280 | NT855-M240, CAT 3406TA |
HC201 | 500/2500 | 1000-2500 | 2.46/2.955/3.526 | 350 | 6135ZLCa, Cummins NTA855-M400 |
MB270A | 500/2500 | 1000-2500 | 4.05/4.53/5.12/5.5/5.95/6.39/6.82 | 675 | NTA855-M400, CAT 3406TA |
HCQ300 | 782/2300 | 1000-2300 | 1.05/1.46/2.05/2.38 | 350 | KTA19-M600, 3412T, TBD234 V12 |
300 | 805/2300 | 1000-2300 | 2.04/2.54/3/3.53/4.1/4.61/4.94 /5.44 | 740 | KTA19-M600, TBD234 V12 |
D300 | 805/2300 | 1000-2300 | 4/4.48/5.05/5.52/5.9/6.56/7.06 /7.63 | 940 | KTA19-M600, TBD234 V12 |
T300 | 759/2300 | 1000-2300 | 4.95/6.03/6.65/7.04/7.54/8.02 /8.47 | 1120 | KTA19-M600, 3412T, TBD234 V12 |
T300/1 | 611/2300 | 1000-2300 | 8.94/9.45 | 1120 | KTA19-M600, 3412T |
HCA300 | 850/2500 | 1000-2500 | 1.5/2/2.57/2.95 | 370 | KTA19-M600, 3412T, TBD234 V12 |
M300 | 850/2300 | 1000-2300 | 1.45/2/2.52/3.05/3.45/3.94 | 700 | KTA19-M600, TBD234 V12 |
MD300 | 850/2300 | 1000-2300 | 3.96/4.48/4.96/5.52/5.9 | 940 | KTA19-M600, TBD234 V12 |
HCQ400 | 810/1800 | 1000-2300 | 1.5/2.04/2.5/3/3.42/3.77/4.06 /4.61/4.94 | 1100 | KT38-M800, TBD604BL6, 3412TA |
HC400 | 810/1800 | 1000-2300 | 1.5/2.04/2.5/3/3.42/3.77/4.06 /4.61/4.94 | 820 | 3412TA, TBD604BL6 |
HCD400A | 810/1800 | 1000-1800 | 3.96/4.33/4.43/4.476/4.7/5/5.53 /5.7/5.89 | 1100 | KT38-M800, TBD604BL6 |
HCT400A | 945/2100 | 1000-2100 | 6.09/6.49/6.93/7.42/7.95/8.4 /9/9.47 | 1450 | KT38-M800, 6BD604BL6 |
HCT400A/1 | 945/2100 | 1000-2100 | 8.15/8.69/9.27/10.6/11.46/12 | 1500 | KTA38-M800, 3412TA, TBD604BL6 |
HCQ501 | 1265/2300 | 1000-2300 | 1.03/1.46/2/2.45 | 560 | KTA38-M940, 3508B, TBD234 V16 |
HCQ502 | 1265/2300 | 1000-2300 | 2.95 | 700 | KTA38-M940, 3508TA, TBD234 V16 |
HC600A | 1365/2100 | 1000-2100 | 2/2.48/3/3.58/3.89 | 1300 | KTA38-M1045, 3508B, TBD604B V8 |
HCD600A | 1365/2100 | 1000-2100 | 4.18/4.43/4.7/5/5.44/5.71 | 1550 | KTA38-M1045, 3508B, TBD604B V8 |
HCT600A | 1260/2100 | 1000-2100 | 6.06/6.49/6.97/7.51/8.04/8.66/9.35 | 1600 | KTA38-M940, 3508TA, TBD234 V16 |
HCT600A/1 | 1260/2100 | 1000-2100 | 7.69/8.23/8.82/9.47/10.1/10.8 /11.65/12.57/14.44 | 1700 | KTA38-M940, TBD234 V16 |
HCD800 | 1530/1800 | 1000-1800 | 3.429/3.96/4.391/4.905/5.474/5.889 | 1900 | 6190Z1CZ, CW6200, KTA38-M1 |
HCT800 | 1530/1800 | 800-1800 | 4.95/5.57/5.68/5.93/6.43/6.86 /7.33/7.84 | 2000 | KTA38-M |
HCT800-1 | 800-1800 | 6.91/7.28/7.69/8.12/8.6/9.12 /9.68/10.3/10.98/11.76/12.43 /13.17/13.97/14.85/15.82/16.58 | 3200 | ||
HC900 | 1440/1600 | 600-1600 | 1.46/2.04/2.47/3/3.6/4.08/4.63/4.95 | 1600 | 12V190DC, M200 |
HCT1100 | 1841/1600 | 700-1600 | 5.6/5.98/6.39/6.85/7.35/7.9 | 3000 | CW6200 |
HC1200 | 600-1900 | 2.03/2.5/2.96/3.55/3.79/4.05/4.2/4.47 | 2000 | ||
HC1250 | 1654/1800 | 400-1800 | 2.03/2.48/3.04/3.48/3.96 | 2200 | CW8200ZC, 6210ZL, Z12V190 |
HC701 | 1286/2400 | 1200-2400 | 1.93/2.58/2.9/3.26/3.91/4.6/5.17 /6.18/7/7.47 | 2000 | KTA38-M2 |
