Product Specifications

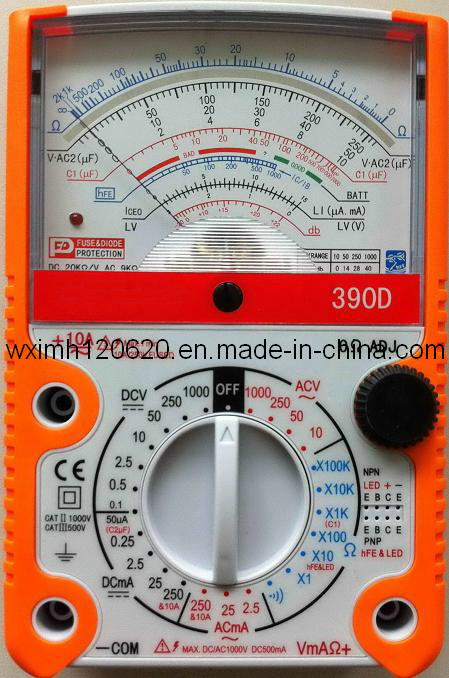

| Prod Model: |
390D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Orange |
| Display Mode: |
Indicator |
| Power Source: |
AC and DC |
| Theory: |
Electronic Meter |
| Installation: |
Desktop |
Product Description
1). Strong Magnet Pivot_Jwell Movement built-in
2). 25 Test Ranges, 11 Working functions
3). Perfect Overland Protection incl. Two fast-acting Fuses 0.5A & 10A
4). Adjust back tilt stand device with Hook-up hole
5). Compact soft Protective Holster alongside
6). Super Input Impedance: 10 MΩ at all ranges of ACV & DCV
7). Auto Power-off after 5min., and then restore via a Special Touch-Buttom
8). Two Mode AC Voltage Range (± 4.0% F. S. ) 10/50/250/500V(1000)Vrms & Vp-p
9). DC Voltage Range (± 3.0% F. S. ) 0.05/0.5/2.5/10/50/250/500V(1000V)
10). DC Current Range (± 3.0% F. S. ) 0.025/0.25/2.5/25/250mA, 10A
11). Resistance Ranges (± 4.0% of Arc. ) X1. X10(C3). X1K(C1). X10K. X100K.
12). Frequency Test Range (± 3.0% F. S. )0.25K/2.5K/25K Hz
13). Capacitance Test With Additional Tool Kit(CT-1)
C1: 100pF~0.025UF/2.5UF/25UF(± 3.0% F. S. )
C2(X1K): Big capacitor upto 2000UF directity via jacks of tester
C2(X10K): Big capacitor upto 2000UF directity via jacks of tester
14). Decibels Test: -20~ +62dB with an external Polyester capacitor 0.047UF/400V
15). Continuity Test With Buzzer
16). Leakage Current & Diode Test
17). Transistor Test via test leads (or via special Hfe socket optional)
18). Power Supply: 6F22 9V 1PC. AA size 1.5V 2PCS
19). Over voltage Category CAT ||| 500V, CAT || 1000V
20). Dimensions & Weight: 160*105*40mm & 340g approx.
Wuxi Imhoo Technology Factory is a specialized manufacture of va-rious electrotechnical meters and electric instruments.
Our Main products are different analog and digital multimeters and panel meters, battery tester and so on. The annual output reaches 800, 000 sets, which are used as equipments in communication, transmitter-receiver, transmitting and distribution electricity, power station, industrial jointing, electric cooker control, chariot and autom-atic control system.
Our products, manufactured accoding to ISO9001/2000(International Quality Ma-nagement System)and technical standard IEC 61010-1-2001(International Electronic Committee) and JB/T9283-1999, have a stable performance and reliable quality.
Our products have gained the quality license of CMC Measuring Apparatus for
Domestic sales as well as the quality license for exportation.
We will decelop further with steady steps all through, exploit and innovate
To serve our clients with excellent products and most-satisfied service.
Quality Policy: Exploit and innovate, keep improving, fine management and hi-ghquality service.
Quality Promise: Be accordance with ISO9001 and keep developing to meet theclient's requirement at present as well as in the future.
