Product Specifications
| Prod Model: |

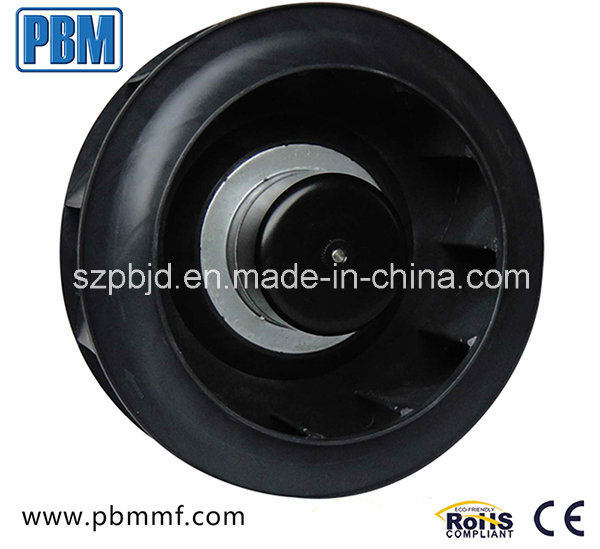

PB3N220B2EM/Backward Curved 220/72ac fan |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 1.4kg: |
External Diameter:220mm |
| Electric Current Type: |
AC |
| Mounting: |
Free Standing |
| Certification: |
CE |
| Blade Material: |
Propylene with Glass-Fiber Reinforced |
Product Description
Impeller Material:
Propylene with glass-fiber reinforced,
sheet-metal plate.
Technical Features:
Control input 0~10VDC/PWM, tach output,
Locked-rotor protection, reverse polarity ,
Current limited, soft start.
Motor Type : EC brushless external rotor motor
Insulation Class: B
Protection Type: IP44
Operating Temperature: -25ºC~+60ºC
Weight: 1.4kg
| Model | Motor Type | Bearing
System | Rated
Voltage | Frequency | Rated
Current | Rated Power | Rated
Speed | Air Flow | Air
pressure | Noise
Level |
| Part NO. | Type | B / S | VAC | Hz | A | W | RPM | M³/H | Pa | dBA |
| PB3N220B2EM | BE72AC-T | BALL | 230 | 50/60 | 0.8 | 95 | 3060 | 1080 | 648 | 71 |
PBM Motor and Fan is a China mainland manufacturing and EC technology consulting company offering an extensive range of EC(Electronically Commutated) motors, fans and solutions, Investing in the latest developing, manufacturing and technical equipment with in-depth processes & procedures. We are able to stay at the forefront of EC motor and fan market and offer high quality & economical products, to many of the worldwide leading ventilation & refrigeration Original Equipment Manufacturers.
Our engineers have rich experience in supplying cost effective motor and fan solutions to exceed customer' S expectations. We understand that each customer' S application is different, and by understanding our customer' S needs in site allows us to offer the most cost effective solution.
From 2010, with China motor manufacturing industry was losing its advantage in material and labor cost, PBM Motor and Fan started to offer consulting service to abroad EC motor manufacturers who expected to organize motor assembly in their own countries for EC technology input and cost down.
Protecting our World with Energy Efficient Motor Solutions' Is our goal in an attempt to make tomorrow a greener & healthier world.
Please feel free to contact our Product Support or Sales Department to discuss your application requirements.
