Advanced GPS Tracking Device for Multi Fuel Level Monitoring System

Product Specifications

Prod Model:	GP6000F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Geo Fence:	64 PCS
Remote Cut Power Off:	Built in Function by Relay
I/O Ports:	Yes
Digital Ports:	Yes
Input Voltage:	10V~30V
Size:	121*82*29
GSM:	850/900/1800/1900
Weight:	600g
Alert:	SMS/Email
Type:	GPS Tracker
Use:	Automotive
Model:	Gp6000f
Screen Size:	121X82X29mm (Lxwxh)
Brand:	Jointech
Certification:	ISO9001, CE, FCC

Product Description

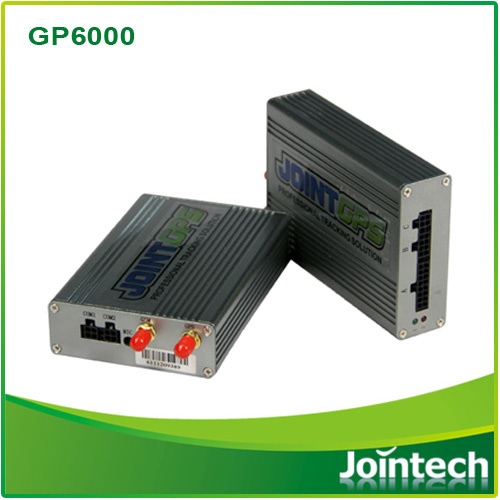

Model: GP6000F

Advanced GPS tracking device for multi fuel level monitoring system

       Intelligent  vehicle GPS tracker GP6000 suitable for fleet management and advance application demands for mobile asset remote management.
The feature of 8 I/O signal input, 6 signal output, 2 intelligent programmable port, 3 Serial port to support more than 3 digital fuel level sensor at same time, excellent redevelopment frame.

Features:
l  Low consumption, wide range voltage input, Automatic self-check/ protection/recovery during short-circuit
l  Varity of intelligent upload mode, support angle changes uploading.
l  Static Drift processing
l  Built-in 3D G sensor that can suit different project application demands and intelligent detecting harsh braking alarm.
l  Road and polygon shaped geo fence  supported,
l  Alarm for road deviation, road speeding, zone speeding, zone over time parking is available.

Parameters:

Type	Description
Basic function	Transmission Mode	TCP/UDP/SMS/GPRS
	Data flow control / Power saving mode	Factory Setting / Define by user / GPS module power off
	Intelligent time management of data uploading	Time reference / Week Reference /Day Reference
	Motion detection	Build-in 3D G sensor
	OTA	broken-point continuingly-transferring
	Mileage Statistics	GPS mileage / electronic mileage
	Remotely Listen-in	Active / Passive
	Geo fence	64
	Road / Polygon zone geo fence	100
	Hotspot	100
	Alarm type	GPS/SMS/EMAIL
	Domain name supported / build-in backup IP supported
	Blind area data uploading / history data intelligent uploading (43,200 pieces)
	GPS open/short circuit detection / GPS signal uploading in real time.
	Self-check, self-recovery, self-protection, build-in back up battery
	Alarms
	Data flow control / Power saving mode		Factory Setting / Define by user / GPS module power off
Alarm function	Enter/Exit geo fence alarm, overtime parking alarm, fatigue driving alarm, over speed alarm, SOS (panic button) alarm, backup battery starting alarm, illegal ignition alarm, harsh braking alarm, vehicle sliding in neutral gear alarm, fuel level change alarm, seat belt unfasten alarm, vibration alarm, tow alarm, hotspot alarm, deviation from the route alarm, over speed in certain road alarm, over speed in zone alarm,
Control function	Remotely cutting off the fuel pump / 5 output control define by user
I/O Port	6 Switch signal input(4high level trigger, 2 low level trigger)
	1 Analog signal input(0-5v)
	1 Pulse signal input (<3.8v,2KHZ )
	5 switch signal output
	3 RS232 Serial port
	2 Intelligent programmable port(I/O,A/D)
Parameters	Dimension(L×W×H)	121×82×29mm
	Weight	820g (with standard accessories)
	Working current	60-100mA
	Working voltage	10-30V
	Backup battery	8.4V  400mAh  NI-MH battery
	GPS chip	SIRF Star III
	GSM	850/900/1800/1900 Mhz
