| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 150/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |

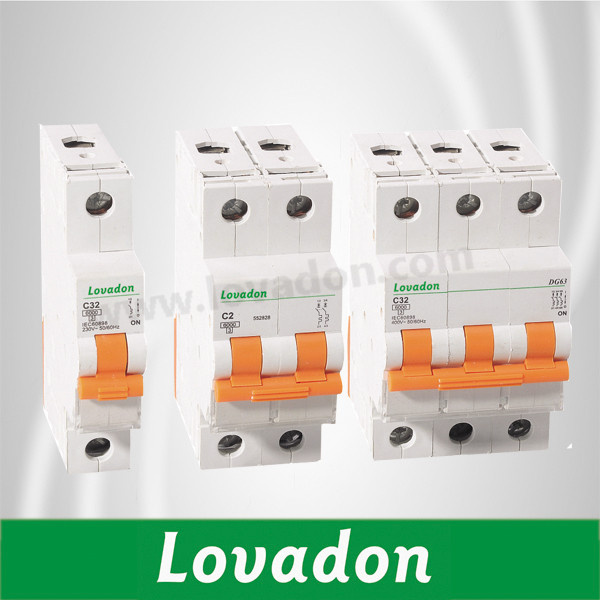

| Prod Model: | LCB4-63 3pole |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Breaking Capacity: | Low Voltage Circuit Breakers |
| Operation: | Electric Type |
| Speed: | Normal Type Circuit Breaker |
| Arc-extinguishing Medium: | Air |
| Structure: | MCB |
| Certification: | CE |
| Installation: | DIN Type |
| Poles Number: | 1p, 2p, 3p, 4p |
| Function: | Conventional Circuit Breaker |
| Specifications | |||
| Standard | IEC/EN 60898-1 IEC/EN 60947-2 | ||
| Electrical features | Rated current In | A | 1,2,3,4,6,10,13,16,20,25,32,40,50,63 |
| Poles | P | 1,2,3,4 | |
| Rated voltage Ue | V | 120/240 220/380 230/400 240/415 | |
| Insulation voltage Ui | V | 500 | |
| Rated frequency | Hz | 50/60 | |
| Rated breaking capacity | A | 4500/6000/10000 | |
| Energy limiting class | 3 | ||
| Rated impulse withstand voltage(1.2/50)Uimp | V | 6000 | |
| Dielectric test voltage at ind. Freq. for 1min | kV | 2 | |
| Pollution degree | 2 | ||
| Thermo-magnetic release characteristic | B,C,D | ||
| Mechanical features | Electrical life | t | 10000 |
| Mechanical life | t | 20000 | |
| Contact position indicator | Yes | ||
| Protection degree | IP20 | ||
| Reference temperature for setting of thermal element | ºC | 30 | |
| Ambient temperature (with daily average ≤35ºC) | ºC | -5~+40 | |
| Storage ten perature | ºC | -25~+70 | |
