Specifications

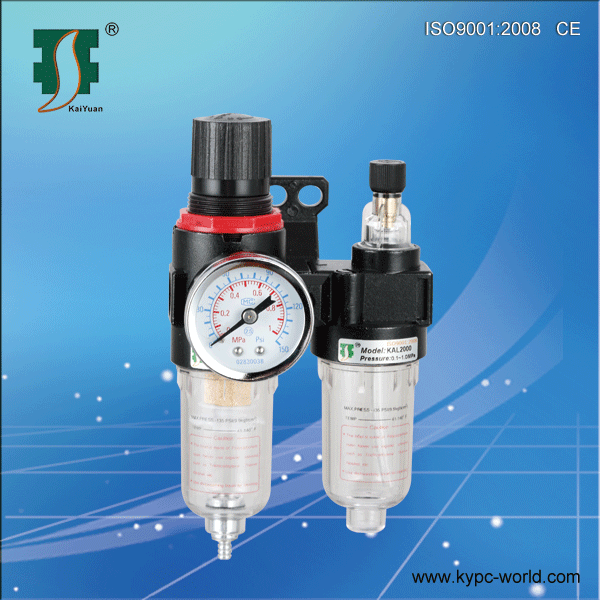

AFC2000(1500) F.R.L Combination,air filter regulator & lubricator
And similar products can be interchanged AIRTAC.
AFC2000(1500) F.R.L Combination,air filter regulator & lubricator,Airtac air preparation
# Product introduction
1.High-strength iron protective cover.
2.Thread was machining by CN,clean and beautifull.
3.Pressure units are various options indeed.
4.Improved pressure regulation knob not easy to fall down,lock more reliable.
5.High-strength bolt of 8.8 lever connect to strong and reliable.
6.Strang then the glass material so that the max proof-pressure of up to 1.6MPa.
7.Tramsparant checking window trickle oil quantity is visual.
8.Improved throttle valve and operating knob makes the oil amout regulating simpler.
9.High-strength diecasting brackets.
10.The body was diecasting in high-strength aluminum alloy.
Model |
AFC1500 |
AFC2000 |
Working medium |
Compressure air |
Port size |
G1/8" |
G1/4" |
Working pressure |
0.1~1.0MPa(14.5~145Psi)(1.0~10bar) |
Proof-pressure |
1.5MPa(217.5Psi)(15bar) |
Working temperature |
-10~60°C |
Flowing for 40um (L/min) |
1500 |
2000 |
Funcation characteristics |
Embedded square pressure gauge |
Funcation |
Pressure compensation,stable pressure |
Body material |
Aluminum alloy |
Lubricant recommended |
ISO VG32 or equivalent |
Type of mounting |
Through the accessory of mounting |
MAX storage oil (cm³) |
25 |
Type of mounting |
Through the accessory of mounting |
Assembly position |
Vertical ±5° |
Grade of filtration |
40um(5um,25um) |
Filter material |
Sintered copper (Plastic filter available) |
Protective cover |
available |
Type of drain |
semi-auto drain (Auto-drain available) |
MAX storage water (cm³) |
15 |
Pressure regulating range |
0.05~1.5MPa(7.3~217.5Psi)(0.5~15bar) |
Regulator lock |
The handle can be locked by itself |
Pressure display |
Trough the gauge shows |
Unit of gauge |
Duble unit:Mpa and Psi (bar and kgf available) |
Components |
AFR1500 |
AFR2000 |
AL1500 |
AL2000 |
Weight (kg) |
0.5 |
