Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: Zofr
Model Number: AFR-1
Theory: Voltage Relay
Usage: Protective
Size: 61*49*70mm
Protect Feature: Sealed
Contact Load: High Power
Packaging & Delivery
Packaging Details: Carton Packing or upon your requirements
Delivery Detail: 500PCS within 5 days
Specifications

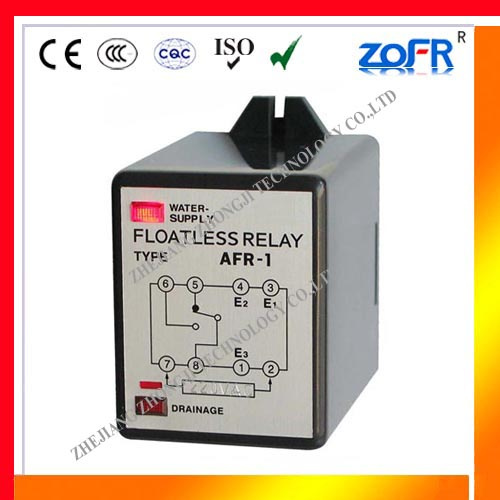

Liquid level relay AFR-1 floatless relay
Voltage: 110V, 220V, 240V, 50/60Hz
Contact Rating: 5A, 250VAC
Liquid level relay AFR-1 floatless relay
Technical Data:
Socket type: PF083A
Rated voltage: AC 110V, 220V, 240V, 50/60Hz
Indicate operation: Two LED's use for two status
Contact rated: 5A 250VAC
Dielectric strength: 1500VAC 50/60Hz, 1MINUTE
Consumed power: 3.2VA
Weight: 200g
|
Outline size |
Contact capacity |
Output contact |
Contact electric life |
Ambient temperature |
Operation voltage |
Mounting mode |
|
78*49*92 |
AC250V
10A Resistence |
1z switch |
10 5 |
-5~ +40 |
AC:36/220/380V |
Rig type |
Zhejiang Zhongji Technology Co., Ltd was established in 1991, with advanced technology, our company is equipped with high standard production lines and a stable technical staff, management team for production and examination.
We have more than 100 series and 1, 000 different kinds of relay specifications, and mainly manufacturer all types of electromagnetic relay, PCB relay, auto relay, high power relay, time relay, counting relay, microcomputer control switch, floatless relay, electromotor protection relay, power-saving control switch, solid state relay, static-stated electric relay, gas relay, the relay bases and so on.
The products of our company have been approved by CE, ISO9001, and the China Compulsory Certification (CCC).All of the products have been listed in quality control system in the China Product Quality Association ( CPQA) "21315".We have established many sales branch offices in the domestic market, and the products are well sold and highly praised in more than 30 provinces, cities and municipalities, and as far away in Europe, America, Southeast Asia, Middle East and Africa, etc.
Zhejiang Zhongji Technology Co., Ltd.With advanced technology, superior quality, reasonable price, good reputation, warm and thoughtful service, provides products to customers' satisfaction.We are willing to sincerely cooperation, create brilliance!
