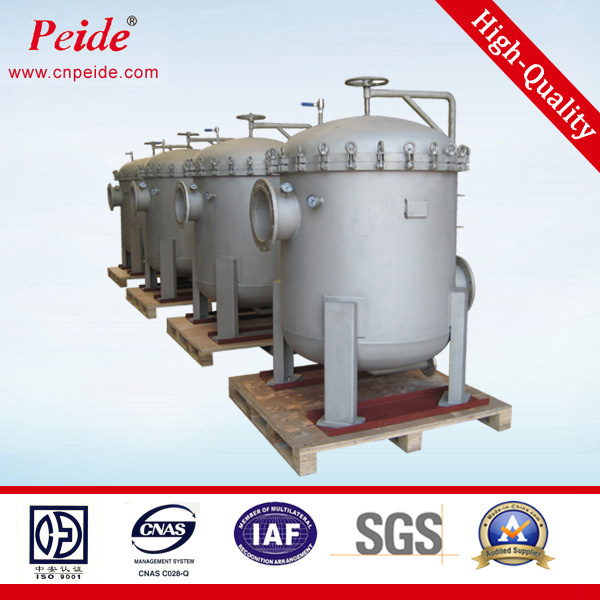

Agricultural Use Heat Exchange System Multi Bag Filter

Agricultural use Heat Exchange System Multi Bag Filter

Product brief description and advantages
1. Large liquid treat capacity
2. Large dirt capacity
3. High filter efficiency
4. Simple operation
5. Low cost maintenance

Equipment Principle

Wide availability of liquid filtration equipment. It can effectively remove liquid particles of different sizes, so as to achieve liquid filtration, purification, separation, recycling purposes.

Components: Filter container, filter basket, filter bag. We can install many bags in filter container according to customer requirements. The liquid enter into the container through side or bottom. Filter bag expand symmetrical in case of liquid wallop. The liquid will be out from bottom as well as the impurities stay in the filter bag. When the filter process has completed, the operator just loosen the bolt and rotate the hand wheel to enhance the cover to remove filter bag, then clean or replace the filter bag.

Features

1. Large liquid treat capacity
2. Large dirt capacity
3. High filter efficiency
4. Simple operation
5. Low cost maintenance

Character

1. Simple and convenient operation, simple installation
2. High precision filter which is used to every kind of particles or suspended solids, filtration can range from 1 to 800 microns.
3. Effective filter area is big and 5 to 10 times compared with other same type filter equipment. That's means it can reduce cost largely.
4. Liquid treat capacity can reaches to 1 to 1000m3/H, the cost is little.
5. The equipment can be used to coarse and precision filter.
6. High liquid treat capacity unit area, small filter resistance, high filter efficiency.
7. When you want to achieve to same filter efficiency, the cost of bag filter is small and life is long compared with precision filter and strainer filter.
8. The filter bag can be used repeating.

Internal structure

1. Each bag has a separate locking device with no side leakage opportunities.
2. Integrated design of precision without distortion.
3. Integrated precision with lifting device.
4. O-ring seal, high-strength and quick bolts.

Application

Paint, Beer, Vegetable oil, Pharmaceuticals, Cosmetics, Chemicals, Petroleum products, Chemicals, Electroplating solution, Milk, Mineral water, Hot solvents, Latex, Industrial water, Coatings and paints, Sugar, Molasses, Resins, Inks, Industrial waste water, Juice, Cooking oil, Wax, Precision filters and other industries.

Filter bag

1. Choose the imported high purified filament fiber material, singeing the surface of a special treatment to prevent pollution of the filtrate fiber shedding. Three-dimesional have a high ability to capture solids and colloidal particles. Hig-strength fiber has high filtration efficiency, stability and long life. Filter bag is produced on the standard of America production standard, GMP requirement and FDA requirement of domestic pharmaceutical industry.

2. Filter material: Special withstand high temperature and acid polytetrafluoroethylene, PE, PP, nylon, NMO and so on. Stainless steel(SUS304) can reaches to filter percision from 0.5 to 1000 microns.
3. Bag collar: Stainless steel ring, galvanized steel ring, PP, PE plastic ring and polyester rope.
4. The technical of filter bag welding is such as, plastic ring welding, seam welding and sewing the end including sewing, anti-seam and so on. We can supply the special filter bag based on customer's requirement besides of supplying the industry standard filter bag (01#, 02#, 04#).
5. Filter basket: Filter equipment support the filter basket, one time machining molding. It has a circular cylinder high-strength slot in tube body.

Welcome to inquiry, We will offer you the best items!
