Product Specifications
Prod Model: |
AHR-60K-3 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
W X D X H (Mm): |
550 X 800 X 1800 |
N.W.(Kg): |
650 |
Color: |
Ral7035 Anti-Ultraviolet Light Grey |
Input AC Voltage: |
AC380V/400V/415V/480V, 3p3w or 3p4w |
Input DC Voltage: |
DC348V |
Product Description
Application:
AR Series Online UPS for Industry are widely used in the fields of Petroleum, chemical, large datacenters, manufacturing industries, power transmission, rail transportation, aviation, centralized control center, offshore drilling platforms, precision medical equipment protection, communications networks and other automated control systems.
Product Description:

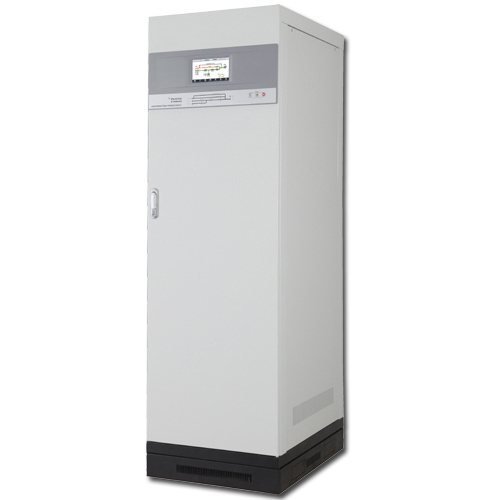

AR Series Online UPS for Industry60KVA
Model: AR-IND60KVA
Type: Online
Input AC Voltage: AC380V/400V/415V/480V, 3P3W or 3P4W
Input DC Voltage: DC348V
Input Frequency: 50Hz/60Hz± 10%
Output AC Voltage: AC380V/400V/415V/480V 3P3W or 3P4W, AC220V/230V/240V/277V 1P2W
Output Frequency: 50Hz/60Hz± 0.1%
Protection: Short Circuit, Lightning, EMC Filter, Galvanic Isolated Transformer
Display: Touch-Sensitive LCD Operating Panel
Interface: Dry contact, RS232, RS485 (MODBUS)
Notes: Other specifications are available upon request
Features & Advantages:
1. Adopting output isolated, on-line double coversion technology and advanced DSP technology. It is a full digital and intelligent new generation UPS
2. IGBT components with PFC function.
The input power factor is more than 0.985. Effectively reduce the input harmonic and reactive power loss, a really energy efficient UPS for industry.
3. Friendly, full intelligent touch type man-machine interface design to use a 7 inch color LCD display.
It is informative and easy to operate. Easy to perform and modify the initial preset of UPS,
It can adapt to the power supply standards of various countries around the world, supports multi language interface conversion.
4. Ultra-strong overload ability and adopting the technology of five-section overload protection. It is suitable for harsh industrial loads and compatible with the hardware and software
5. The efficiency of the machine is more than 94%, therefore reduce the energy consumption.
6. Adopting negative power detection and anti reverse connection technology, IGBT anti common circuit circulation detection and protection technology which greatly improve the reliability of the system.
7. The key PCBs with conformal coating to protect against the moisture, salt mist and mildew, therefore can withstand the harsh environment of high contamination and high pollution.
8. Advanced and Intelligent battery management system
(1). Exclusively adopting the 3iBMSTM battery wisdom third-order management system which can be preset to a regular test of the battery charge and discharge and with temperature compensation function, thus simplify the battery maintenance procedure, extend the battery life and reduce the battery replacement cost.
(2). With the unique function of automaticlly correct the discharge cut-off voltage of the battery low discharging current to avoid the battery deep discharge resulted in a permanent damage to battery
(3). With the Intelligent battery connection detection and battery reverse connection protection. Therefore any connection mistake and power on/off in a wrong order will cause no harm to the battery.
9. Intelligent Fan Rotation Speed Control with the fault diagnosis function and the redundancy design
The fan rotation speed can change automatically according to the load capacity and the actual temperature, thus improve the system reliability and greatly reduce the audible noise.
10. Plug & Play Module Design Plug & Play Module Design to allow for quick maintenance and troubleshotting.
11. Dry Contacts, RS-232/ RS485 (MODBUS) as standard configuration, SNMP card and remote control panel are available for option.
12. History Data Record Ability
The unlimited quantity of the history data can be stored, can be downloaded to U disk. Therefore the user can analyse the operation status of the UPS.
13. Compatibility design, custom-made non-standard UPS, reserved interface for parellet redundancy with multi-units
Technical Specifications: |
Capacity (KVA) | 60 |
Phase | Input Phase: 3P3W or 3P4W |
Output Phase: 1P2W or 3P3W or 3P4W |
Other specifications are available upon request |
Model | AR-IND10KVA ~ AR-IND200KVA |
|
Rectifier | IGBT Rectifier with PFC Power Factor Correction |
Input | AC Voltage | AC380V/400V/415V/480V, 3P3W or 3P4W |
Other specifications are available upon request |
AC Voltage Range | ±30%/-20% |
Frequency | 50Hz/60Hz±10% |
Power Factor | >0.95 |
|
Inverter | 3-Phase Independent Full-Bridge IGBT Converter |
Output | AC Voltage | AC380V/400V/415V/480V 3P3W or 3P4W |
AC220V/230V/240V/277V 1P2W |
Other specifications are available upon request |
Voltage Regulation | ±1% |
THD | Harmonic Distortion<2% for linear load, Harmonic Distortion<3% for non-linear load |
Frequency and Accuracy | 50Hz/60Hz±0.1% |
Phase Shift Under 100% Unbalance Load | < 0.5° |
Output Power Factor | 0.8 |
Overload | <110% | Continuous |
125% | 10 minutes |
150% | 1 minitue |
200% | 10 seconds |
Current Crest Ratio | 3:1 |
Efficiency (100% Load) | ≥94% |
|
Battery | Rated Battery Voltage | DC348V, other specifications are available upon request |
Battery Cold Start with DC | Yes, UPS can be started without AC source |
|
Physical | Width x Depth x Height(mm) | 550 x 800 x 1800 |
Net Weight (Kg) | 650 |
Color | RAL7035 Anti-ultraviolet light grey |
Environment | MaximumTemperature (100% Load) | 40ºC: Continuous |
50ºC: Less than 8 hours |
Humidity | <90% (Non-Condensing) |
Altitude | <2000 M Above Sea Level |
Protection Levels for Cabinet | IP42 |
Audible Noise | < 60 dBA (At 1 M) |
Regulation & Standards | Safe Standard (CE Standard) | EN50091-1 |
EMC Standrad (CE Standard) | EN50091-2 |
Radiation and SafeStandard | FCC, CLASS A, CE |
EMC/EMI | Transmission | EN50091-2 |
Radiation | EN50091-2, CLASS A |
Harmonic Current | IEC1000-3-4 |
Anti - Interference | EN61000-4-2.3.4.6.8.9.11 Level III, EN61000-4-5 Level IV |
Pretection | Short Circuit, Lightning, EMC Filter, Galvanic Isolated Transformer |
Communication Interface | Dry contact, RS232, RS485 (MODBUS) |
Notes: | 1. Different specifications required are available. |
2. All the specifications mentioned above are subject to change without prior notice. |
3. The appearance and color are for referrence only, the object as the standard. |
|
Standard Configuration: |
1. Output Isolated Low Frequency Transformer |
2. IGBT Rectifier Module with PFC Power Factor Correction |
3. Full-bridge IGBT Inverter Module |
4. Static Bypass Components |
5. Manual Maintenance Bypass Switch |
6. Dual Independent Operation Large-scale DSP Control Components |
7. Software and Hardware Redundancy Backup Control Components |
8. Heavy Load Type Steel Structure Based on Industrial Environment Design |
9. Touch-Sensitive LCD Operating Panel |
10. Expandable Parallet-Redundant Components |
11. 3iBMS TM Intelligent Battery Management System |
12. Intelligent Fan Speed Control Redundant Components |
13. Dry Contacts, RS-232/ RS485 (MODBUS) Communication Port |
|
Options: |
1. Iutput Isolated Low Frequency Transformer |
2. Bypass Isolated Low Frequency Transformer |
3. Industrial-grade Bypass Isolated Voltage Stablizer Cabinet |
4. Industrial-grade Input/Output Feeder Cabinet |
5. ATS (Automatic Transfer System) |
6. STS (Static Transfer Switch) |
7. Touch-Sensitive and Color LCD Operating Panel for Remote Monitoring |
8. E.P.O (Emergency Power Off) |
9. Top Cable Entry and Top Cable Exit Connection Components |
10.SNMP Communication Card for Network Monitoring |
11. Customized High Current Charging Module |
12.Nickel-Chromium Battery Chraging Module |
