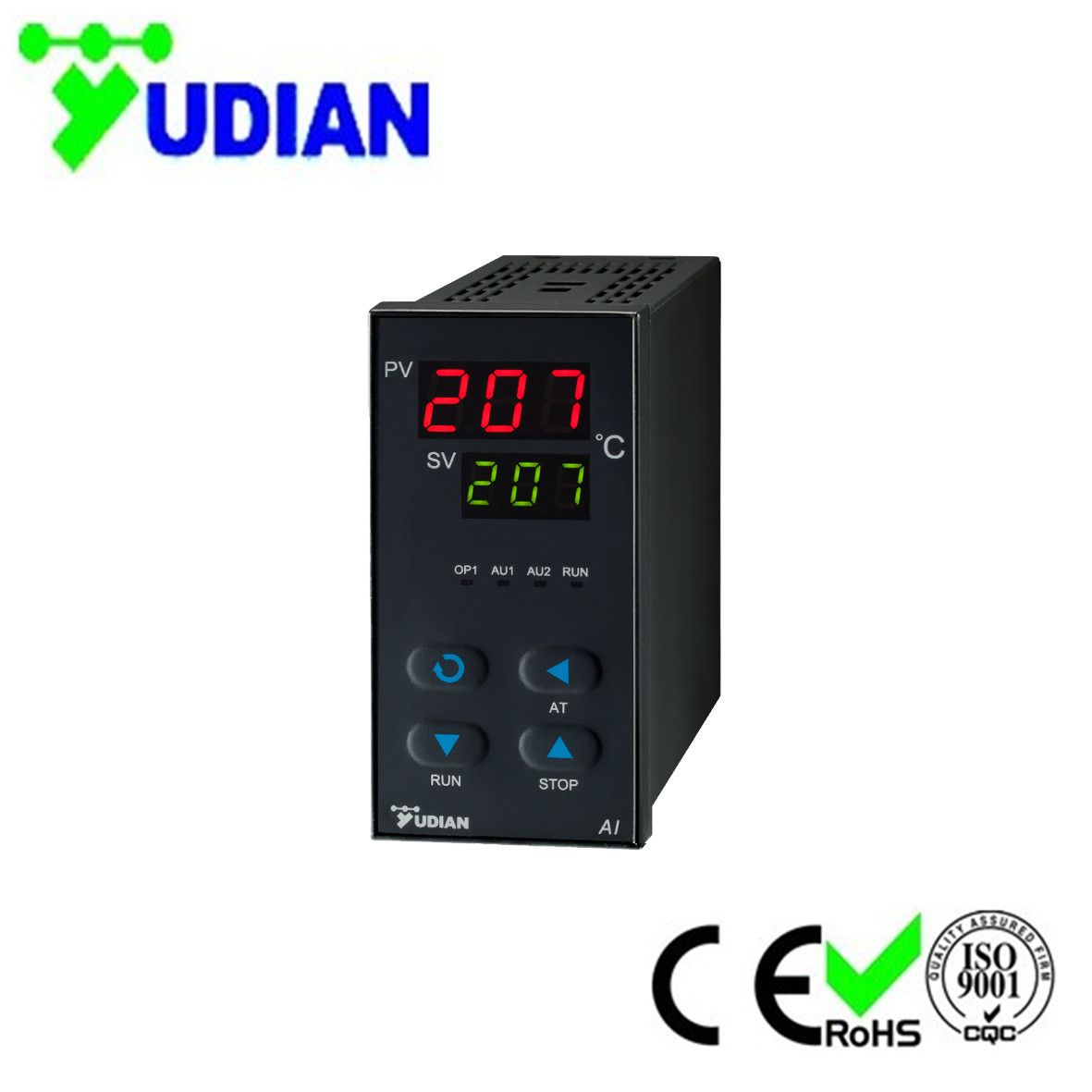

Ai-207 Temperature Controller

Name: Ai-207 Temperature Controller
Brand: china-manufacturer-directory.com
SKU: 712257155
Availability: InStock
Rating: 4.5 (61 reviews)

Supplier:	Xiamen Yudian Automation Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	AI-207E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Default as Grey, Black Is Available If Need
Delivery:	3 Days
Usage:	Drying Equipment
Control Type:	Digital
Type:	Temperature Controller
Display Type:	LED
Certification:	CE

Product Description

YUDIAN AI-208A Cheapest industrial temperature controller size 96*96mm
BASED ON AI-208, AI-207 is cheaper.
Main feature:

PID temperature controller, 3-digit,
Size 48*48*100mm,
With Solid state relay output, or relay output
Supported all thermocouple like K, J, R, N and RTD PT100 inputs.
Can add relay alarm. High/low limits, high/low deviation alarms.
Power Supply 100-240VAC (50Hz/60Hz) or 24VDC Display resolution.
AI-208 is cheapest for 3-digit only show 0~999C. 0.1C is selectable.

Before quote, please tell us what is your input sensor type and output type and the more detailed application the better for us to choose the most suitable model to you.

Model like AI-208D2G, AI-208D2L.

Specifications:

Model	AI-208
Dimension	9696100mm, 7272100mm, 484895mm, 4896100mm, 9648100mm, 16080100mm, 80160100mm
Control mode	On-off control mode AI PID Control with Auto Tuning(AT)
Measurement accuracy	0.3%FS ±1ºC
Resolution	1ºC
Response time	≤0.3s ( when digital filter parameter dL=0)
Input	Thermocouple: K, S, R, T, E, J, N
Input	Resistance temperature detector: Pt100
Input range	Thermocouple: K(-100~1300ºC), S(0~1700ºC), R(0~1700ºC), T(-200~+390ºC), E(0~1000ºC), J(0~1200ºC),B(600~1800ºC), N(0~1300ºC)
Input range	Resistance temperature detector: Pt100(-200~+800ºC)
Output	SSR Voltage output: 12VDC/30mA (used to drive SSR)
Output	Relay output
AUX	Single/dual loop relays selectable for 0~2 alarms
General specifications	Voltage: support 100-240VAC
	Power consumption: ≤3W
	Electromagnetic compatibility (EMC) : ±4KV/5KHz according to IEC61000-4-4; 4KV according to IEC61000-4-5.
	Operating Ambient : temperature -10~60ºC; humidity ≤90%RH

YUDIAN, big manufacturer since 1991, design and manufacturing:Temperature controller, temperature instrument, temperature indicator transmitter, paperless recorder touch screen, flow accumulator, Electronic process control panet.

YUDIAN, over 200 emplyees, over 10, 000m2 factory building, is professional in engineering and equipment for industrial automation, measurement of bearings, vibrations, measurement equipment, sensors, switchgear.YUDIAN control panel meters are widely applied in all kinds of industries ranging from chemical, petroleum, metallurgy, pharmaceutical, food and beverage, to academic laboratories.

Through 22 years of development, YUDIAN has become the NO.1 Chinese intelligent instrument manufacturer, occupying the biggest domestic market share with sales of over 400, 000 units of instruments per year.

We got CE, UL, ISO9001, CQC, RoHS, etc Certificates.Especially for AI-5 series products.Product original code starts with AI-708.We offer products with high quality and strong responsibility.

Welcome visit our factory in Xiamen city.
