Product Specifications
| Prod Model: |
AI-208A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Default as Grey, Black Is Available If Need |
| Delivery: |
3 Days |
| Power Supply: |
100-240VAC (50Hz/60Hz) or 24VDC Display Resolution |
| 3-Digit: |
Show 0~999c. 0.1c Is Selectable |
| Usage: |
Drying Equipment |
| Control Type: |
Digital |
| Material: |
Plastic |
| Type: |
Temperature Controller |
| Display Type: |
LED |
| Certification: |
CE, UL, ISO, RoHS |
Product Description

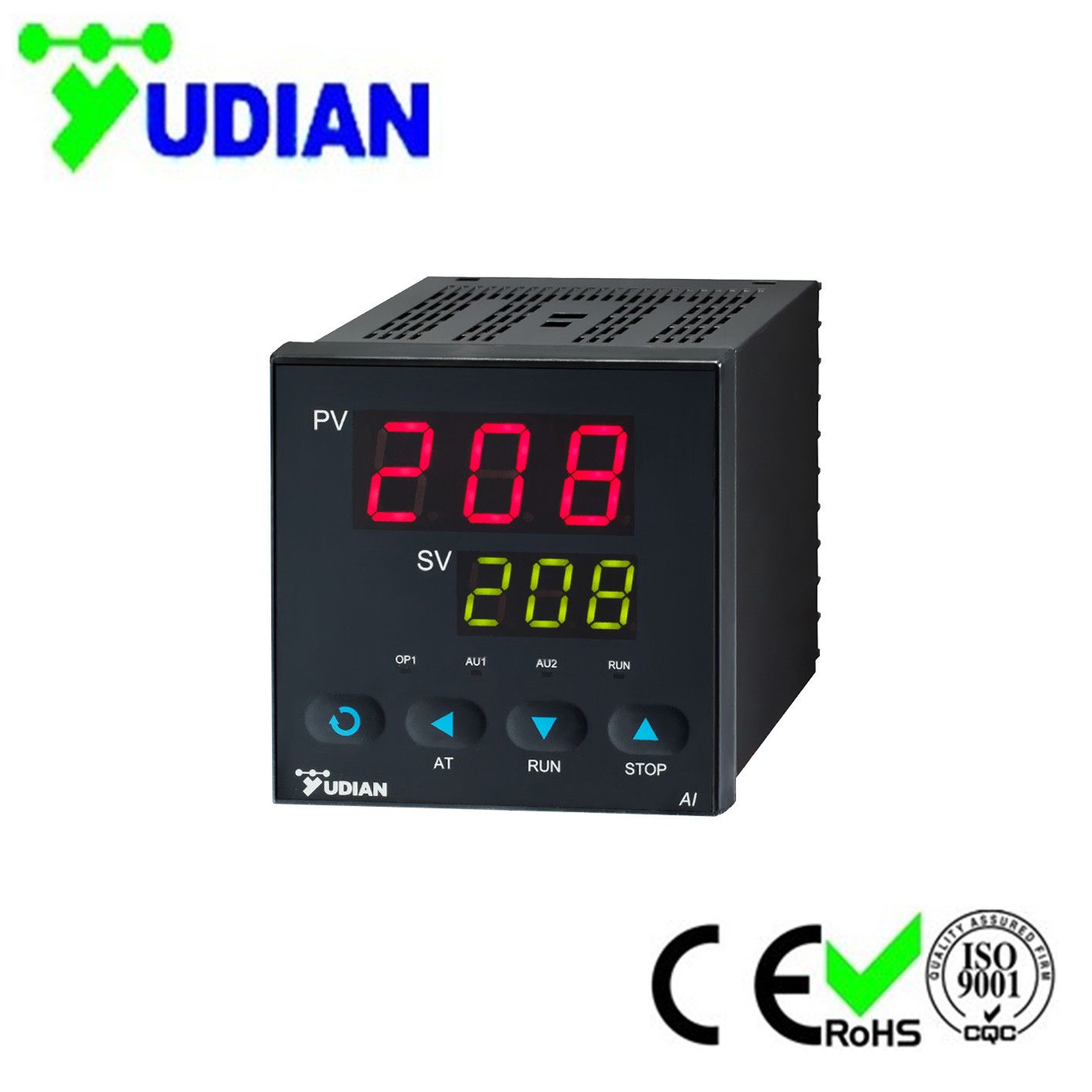

Temperature？thermostat？AI-208:
3-digit Temperature？thermostat
YUDIAN AI-208
- Most economical temperature？thermostat
- Accuracy: 0.3%FS
- Input: Thermocouple:K,E,J,N; PT100
- Output: Relay, SSR voltage output
- Power supply:
100-240VAC,-15%,+10%/50-60Hz or 24VDC
- Module design: 0~2 alarms selectable
- ON/OFF, PID, APID with AT control mode
- RoHS, ISO9001 approved
- 3 years warranty
Main Features:
？
1. AI-208？is？the？basic？and？simplest single loop PID temperature controller in？Yudian,？supporting
thermocouples&RTDs？input.Temperature？control？range？is？from？0~999？with？accuracy？0.3%FS.
2. Artificial？intelligence？control？algorithm？with？auto-tuning？function？and？self-learning
avoids？the？overshoot？problem？of？traditional？PID？algorithm？achieving？precise？and？stable？control.
3. This temperature controller supplies？thermal？system？perfect？temperature？control
instrument？of？easy operate, efficient control and？cheap？cost.
4. This？temperature？control instrument？supplys？two？simple？output？types:relay？or？SSR which can
support？alarm.
5. Customized displays are accepted and advanced features support custom solutions
and small machine controllers.
？
Applications:
？
This？type？of？temperature？controller？is？ideal？for process temperature？control？in？plastic？industry,
food？manufacturing,？packaging？industry,？ovens？heating？and？environmental？test？equipment, etc.
？
？
Specifications
？
ModelAI-208
DimensionsA:？96*96*100mm,
D:？72*72*100mm,？D2:？48*48*95mm,
E:？48*96*100mm,？F:？96*48*100mm,
Control？ModelOn-off？control？mode
AI？artificial？intelligent？PID？Control？with？Auto？Tuning(AT)
Measurement
Accuracy
0.3%FS
±1
Resolution1？
Response？
Time≤0.3s？
(？when？digital？filter？parameter？dL=0)
InputThermocouple:？K,？T,？E,？J,？N
RTD:？Pt100
Input？RangesK,？T,？E,？J,？N:(0~999)
Pt100:(0~800)
Output
(modularized)Relay？output？(NO):？250VAC/5A;30VDC/5A
SSR？Voltage？output:？5VDC/30mA？(used？to？drive？SSR)
General
SpecificationsPower？supply:？100~240VAC,-15%,+10%;？50/60Hz;
Power？consumption:？≤2W
Operating？conditions？:？Temperature？-10~60;
Humidity:？0~90%RH
Optional Function
AUX:Single/dual？loop？relays？selectable？for？0~2？alarms
|
Model |
AI-208 |
|
|
Dimension |
96*96*100mm, 72*72*100mm, 48*48*95mm, 48*96*100mm, 96*48*100mm,
160*80*100mm, 80*160*100mm |
|
|
Control mode |
On-off control mode
AI PID Control with Auto Tuning(AT) |
|
Measurement
accuracy |
0.3%FS ±1ºC |
|
|
Resolution |
1ºC |
|
|
Response time |
≤0.3s ( when digital filter parameter dL=0) |
|
|
Input |
Thermocouple: K, S, R, T, E, J, N |
|
|
Resistance temperature detector: Pt100 |
|
|
Input range |
Thermocouple: K(-100~1300ºC), S(0~1700ºC), R(0~1700ºC),
T(-200~+390ºC), E(0~1000ºC), J(0~1200ºC),B(600~1800ºC),
N(0~1300ºC) |
|
|
Resistance temperature detector: Pt100(-200~+800ºC) |
|
|
Output |
SSR Voltage output: 12VDC/30mA (used to drive SSR) |
|
|
Relay output |
|
|
AUX |
Single/dual loop relays selectable for 0~2 alarms |
|
|
General specifications |
Voltage: support 100-240VAC |
|
|
Power consumption: ≤3W |
|
Electromagnetic compatibility (EMC) : ±4KV/5KHz according to IEC61000-4-4;
4KV according to IEC61000-4-5. |
|
|
Operating Ambient : temperature -10~60ºC; humidity ≤90%RH |
|
