Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Polypropylene Capacitor |
| Package Type: |
Surface Mount |
| Application: |
AC / Motor |
| Capacitance: |
2-100uf |
Product Description

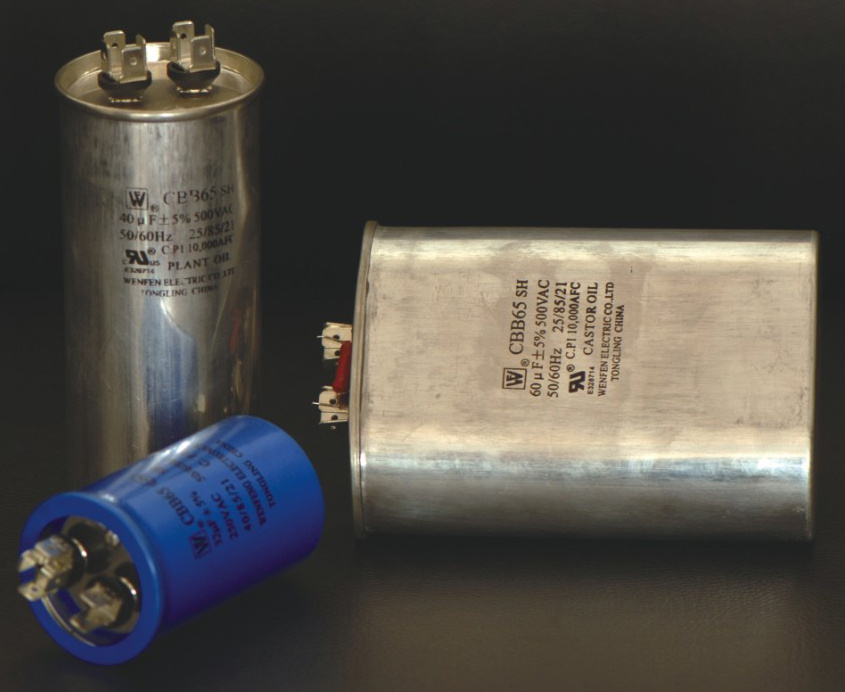

we can supply all kinds of CBB65,CBB60,CBB61 CAPACITOR
CBB65A RUN CAPACITORS
Main Feature:
Low dissipation factor small inherent temperature rise, excellent
Self-healing stability safety and high voltage withstand etc.
Applications:
Run starting in household electric appliances air conditioner,
Refrigerator which demand 50/60Hz AC power supply Have
Safe protection constrution.
Specifications
Climatic
Category Rate voltage Testing voltage
T-T Testing voltage
T-C Capacitance
Tolerance Dissipation
Factor
-25/+70/21
-40/+85/21 370/440VAC 1.75Un/5S
(2Un/5S) 2000V. AC/5s ± 5%
(± 10%) ≤ 0.002
(100Hz)
Capacitance range: 2MFD-100MFD, 15+5MFD-80+7.5MFD
Dimension(mm): D: Φ 40-Φ 60, H: 60-150
Reference standard: UL810, IEC252, EN60252, GB3667
Certification: UL Construction, UL 10, 000AFC, TUV
Safety grade: P1
CBB65A-1 RUN CAPACITORS
Main Feature:
Low dissipation factor small inherent temperature rise, excellent
Self-healing stability safety and high voltage withstand etc.
Applications:
Run starting in household electric appliances air conditioner,
Refrigerator which demand 50/60Hz AC power supply Have
Safe protection constrution.
Specifications
Climatic
Category Rate voltage Testing voltage
T-T Testing voltage
T-C Capacitance
Tolerance Dissipation
Factor
-25/+70/21
-40/+85/21 370/440VAC 1.75Un/5S
(2Un/5S) 2000V. AC/5s ± 5%
(± 10%) ≤ 0.002
(100Hz)
Capacitance range: 2MFD-100MFD, 15+5MFD-80+7.5MFD
Dimension(mm): W: 51.5(71), H: 60-150, L: 31.5(45)
Reference standard: UL810, IEC252, EN60252, GB3667
Certification: UL Construction, UL 10, 000AFC, TUV
Safety grade: P1
Invested by public company with excellent financial image, long history and professional manufacturing, Ningbo SILVA INDUSTRIAL Co., Ltd. Established in 1994 and located in Ningbo, has become one of the largest exporters for air conditioner, heat pump, air conditioner parts, and other home appliances.
Silva is a professional manufacturer and exporter that is concerned with the design, development and production of HVAC products. Including air conditioner, air conditioner spare parts, central air conditioner&heat pump, and other home appliances, etc.
Recognizing the importance of quality, we pay close attention to production development and technological innovations, has been passed the ISO9000. And most of our products are with GS, CE approval, have been exported to many countries of Europe, Australia, South America, Africa and Middle East.
However, we will still strive on for higher goals under the instruction of Credit and Quality First. We sincerely hope to establish a long-term and stable relationship with you so that we can share a wonderful future!
After reading my introduction, I believe you will be interesting in our factory and products!
We are looking forward to receiving your active reply soon!
