Product Specifications
| Prod Model: |
FDSS (Conventional type) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE, UL, SGS, ISO, FDA |
Product Description
General description

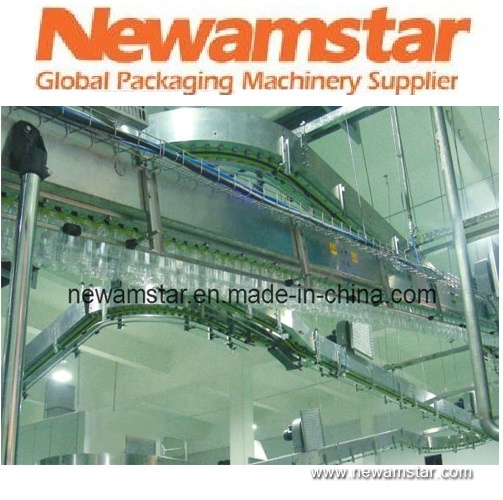

Air conveyor is the main transport device of PET bottling line. Its function is connecting PET bottle blowing machine or loading equipment with filler, transporting bottles by air.
The main body of air conveyor is made of stainless steel. The air slot of air conveyor is made by punch. The air slot equips polymer leading bars. Adjusting the gap between leading bars makes PET bottle hang on the bars naturally. There are fans on the top of the air conveyor. The inlet of the fan equips air filtering device which can block dust effectively. While the fan starts, air exhausts from the outlet and directly blows to bottle mouth and body to make bottles have pressure. Under effect of pressure, bottles are transported fast along the designed line.
Features
Modularization design makes product varying and simple, with strong interchangeability. The consecutive joint can satisfy long-distance transport.
The outlet of the fan equips air adjust device. For different bottles, air quantity can be adjusted to keep stable transport.
The leading bar is made of polymers, reducing the friction to bottles and ensuring smooth transport.
Adopt polymers leading bar to protect bottle body, reducing the scoring to bottle body.
Special air slot design made by punch ensures the coherence of each unit and smooth transport.
It considers the requirement of sanitary and cleanness for bottle inside. The inlet of the fan adopts air filtering device made of non-woven fabrics cotton, with high filtering class, easy to change filter gauze.
Newamstar Packaging Machinery Co., Ltd.
| Model: FDSS(K) | Side sign: FDSS(K)-00 |
| Description | Spec.or parameter | unit |
| Applicable bottle neck: | Ø20-40 | mm |
| Section size(L×W): | 250×230 | mm |
| Elbow radius: | 800 | 1000 | mm |
| Fan power : | 2.2 | 3 | Kw |
| Effective unit transport distance: | 6000 | 8000 | mm |
| Applicable gradient | 0-15° |
|
| Filtering class | ≥G4 |
|
Newamstar is expert in Liquid (Beverage) Packaging Machinery. As a national key high-tech enterprise, it has an area of more than 150, 000 m2 which is the largest R& D and manufacturing base in Asia in this field.
The headquarter is located in Zhangjiagang city, Suzhou, China, within 1-2 hours from Wuxi Shuofang International Airport, Shanghai Hongqiao International Airport or Shanghai Pudong International Airport.
Newamstar always insists on technology innovation, creating more than thirty "China firsts": First PET 3-in-1 water filling line, first PET aseptic filling line, first PET beer filling machine, first 51, 000BPH PET bottle blowing-filling-capping combibloc, etc.
Newamstar covers four major fields: Water, juice, CSD, milk, liquid condiment and personal care products. We serve domestic & International brands: Danone, Otsuka, Wahaha, Dali, Zhongfu, Suntory, President, Yinlu, C'estbon, Ganten, Aoke, Jiajia, etc.
We have exported to more than 70 countries and regions as well as 1, 500 turn-key projects.
We offer technical support to the customer and attach great importance to machine quality and after-sales service.
Business Type: Manufacturer/Factory & Trading Company
Number of Employees: 877
Management System Certification: ISO 9001
International Commercial Terms: FOB, CIF, CFR
Terms of Payment: LC, T/T, D/P
Average Lead Time: Peak season lead time: 3-6 monthsOff season lead time: 3-6 months
Number of Foreign Trading Staff: 11~20 People
Export Year: 2008-01-04
Export Percentage: 51%~70%
Annual Export Revenue: 41.38 Million USD
Main Markets: Southeast Asia/ Mideast, Africa, Domestic
Export Mode: Have Own Export License
Factory Address: East Xinjing Road, Zhangjiagang Economic Development, Suzhou, Jiangsu, China
R&D Capacity: Own Brand()
No. of R&D Staff: Above 50 People
No. of Production Lines: Above 10
Annual Output Value: Above US$100 Million
