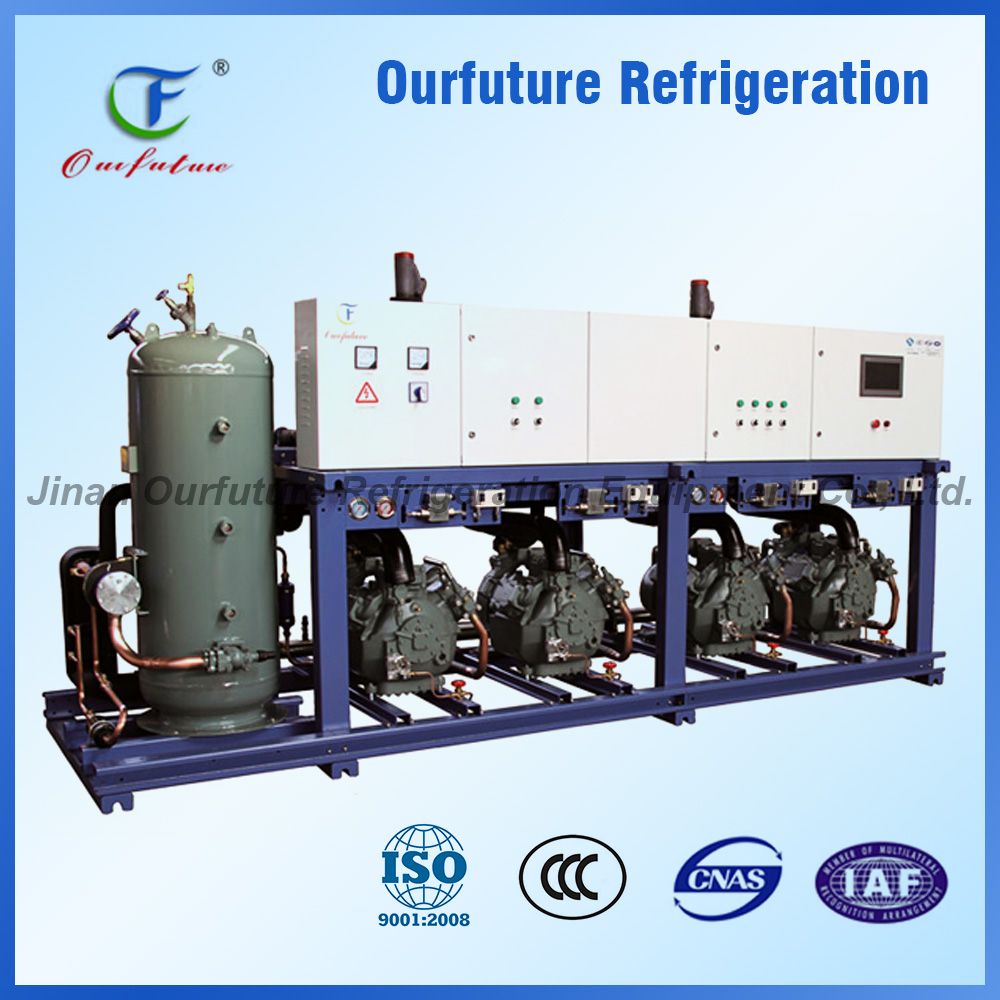

Air Cooled Piston Type Condensing Compressor Rack

Name: Air Cooled Piston Type Condensing Compressor Rack
Brand: China-Manufacturer-Directory.com
SKU: 621040564
Availability: InStock
Rating: 5 (93 reviews)

Supplier:	Jinan Ourfuture Refrigeration Equipment Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Compressor Brand:	Bitzer, Carlyle, Danfoss, Copeland, Bock, Hanbell,
Gas:	R404A, R22
Voltage:	380V/3p/50Hz, 220V/1p/60Hz
Use:	Cold Room, Blast Freezer, Cold Chain Logistic, Pha
Evaporating Temperature:	10~-15 Deg C, -15~-35 Deg C, -30~-50 Deg C
Condensing Temperature:	35 Deg C, 40 Deg C
Certification:	CCC
Condition:	New

Product Description

Piston type parallel compressor unit standard configuration
1.Parallel compressor unit assembly		6. Subcooler assembly (applies for single compressor double stage unit)
Sturdy metal chassis		Subcooler
Lifting ring		Subcooling expansion valve, subcooling solenoid valve, subcooling liquid sight glass, subcooling off-valve.
Cushion
		7. Gas-liquid separator
2.Reservoir assembly
Reservoir has 28 bar safety valve		8. Compressor electronic controller and protection assembly.
Reservoir inlet/outlet off-valve		Compressor high/low pressure controller.
Reservoir sight glass		Electronic overcurrent protector.
Pipeline liquid sight glass		Low pressure sensor
Reservoir out filter barrel drier, contains filter		Independent circuit breakers and thermal protector.
Filter drier barrel oulet has shut-off valve.		PLC controller and color touch screen.

3.Exhaust gas assembly		9. Fluid supply manifold and return manifold assembly.
Oil separator		Fluid supply manifold and return manifold quantity in accordance with product catalog
Oil separator outlet backstop shut-off valve		Manifold adopts hard straight pipe.

4. Oil line assembly		10. Other
Oil reservoir (with oil sight glass)		Compressor pressure gauge
Oil reservoir inlet/outlet off valve		Repair valves are mounted on each manifold
Oil line backstop valve		Insulation materials for suction, economizer and cooling tube
Oil outlet filter		Compressor unit suction off-valve
Oil ball valve
Oil level controller		11. Optional configures
		Refrigerant R22 or R404a
5.Single compressor assembly.		Reservoir can be vertical or horizontal
Suction and discharge off-valve		Fluid supply manifold shunt and return manifold shunt
Compressor cushion		Cooling type: air cooled, water cooled, evaporative cooled.
Suction filter barrel, contains filter		Other brand compressor and configurations
Oil sight glass
Oil pressure controller (oil pump lubrication)		12. Components that can be added
Crankcase heater		Compressor exhaust muffler
Low temperature single stage compressor cylinder fan.		High pressure sensor
Low temperature single stage compressor liquid spray cooling		Heat recovery device.
		Hot gas defrost function
		Frozen oil

Air cooled piston type condensing unit

General Features
Compact and durable
Wide range of applications
Green refrigerant R404a is used.
High efficiency and low noise external rotor fan motor is used.
High efficiency coper tube aluminum fin conderser.
PTC sensor is used to monitor motor temperature.
Polyester oil pre-filled.

New series of air cooled piston type condensing unit power range

Single stage condensing unit has been extended from 2.9 KW to 135 KW (variety of options)
Double stage condensing unit has been extended from 1.8 KW to 52.6 KW (variety of options)

Standard condensing unit configuration
Semi hermatic compressor, air cooled condenser, reservoir(vertical reservoir for under 5HP, horizontal type for above 6HP), crankcase heater, dashboard, filter, sight glass, frozen oil, oil pressure differential controller(except for octagonal unit ), double stage unit has intercooler.

Optional configurations
R134a, R507, R22, etc,
Oil separator,
Check valve for exhaust pipe,
Gas-liquid separator,
CIC spray cooling system,
Energy regulation device,
Exhaust temperature protector,
Extra large reservoir,
Condenser fan speed controller,

Code description

O	B	H	2	M-	A
Ourfuture Refrigeration	Condensing unit type: B-Single stage semi hermatic SB-Double stage semi hermatic	Compressor type: H-Piston type L-Screw type	Compressor nominal power (HP)	Evaporating temp. code: M(Medium & high temp.): 0~-10ºC L(Medium temp.):-10~-30ºC J(Low temp.): -30~-65ºC	Condenser type: W-Water cooled A-Air cooled

Our company produces screw type condensing units, screw type multiple compressor parallel units, reciprocating condensing units, reciprocating parallel compressor racks, scroll type compressor box type condensing unit and scroll type parallel compressor units with best quality and favorable price.

Our compressor units/racks can be used in cold room storage, blast freezer, fast frozen tunnel, retail refrigeration, cold chain logistics, chemical and pharmarcy area, fishery and shipping industry, etc.

Our basic products include the following:

1. Single-stage reciprocating type parallel compressor racks(20HP~350HP) @7.5~45oC Tss.

2.2-stage compressor reciprocating type parallel units(16~180HP) @-25~-65oC Tss.

3. Single-stage screw type parallel compressor racks(80~600HP) @5~45oC Tss.

4.2-stage compressor screw type parallel compressor units(100~600HP) @-30~-65oC Tss.

5. Danfoss scroll type compressor box type condensing units and parallel compressor racks.

6. R744(CO2) cascade system compressor units.

Refrigerant can be R744(CO2), R404A, R507, R407C, R22, etc.

Our compressor racks and condensing units are equipped with world famous brand high quality components, we are distributor of Bitzer, Carlyle, Fusheng, Bock, OEM factory of Danfoss. Key controllers and valves are Danfoss brand, contactors are Siemens brand.

We also develop and program our own PLC control system, it can automatically control the running compressor quantity according to refrigeration need so that the system can save more energy and can provide 30% more use life than single compressor condensing units. With PLC auto control graphical interface, customer can operate with read the running status, data, parameter and error alarms easily. Optional remote control communication port is also provided, so that customer can monitor in their office.

We focus on high efficiency daily mangement and QC to guarantee stable quality. By following ISO9001: 2008, we have strict tracking system of each order, all welding are proformed with argon charged in the system to prevent welding waste going into the system. All condensers are delivered with high pressure gas charged when they delivered. Each final compressor rack will go through no-load test before packaging.

We welcome friends from all over the world, together let's serve the world with more environmental, efficient and cost effective refrigeration unit.

Ourfuture Refrigeration - "Our future - refrigeration future!
