Ningbo Spark Motors Ltd. >> Air Cooled, Single Cylinder, Four Stroke Diesel Engine (D170F/D173F)

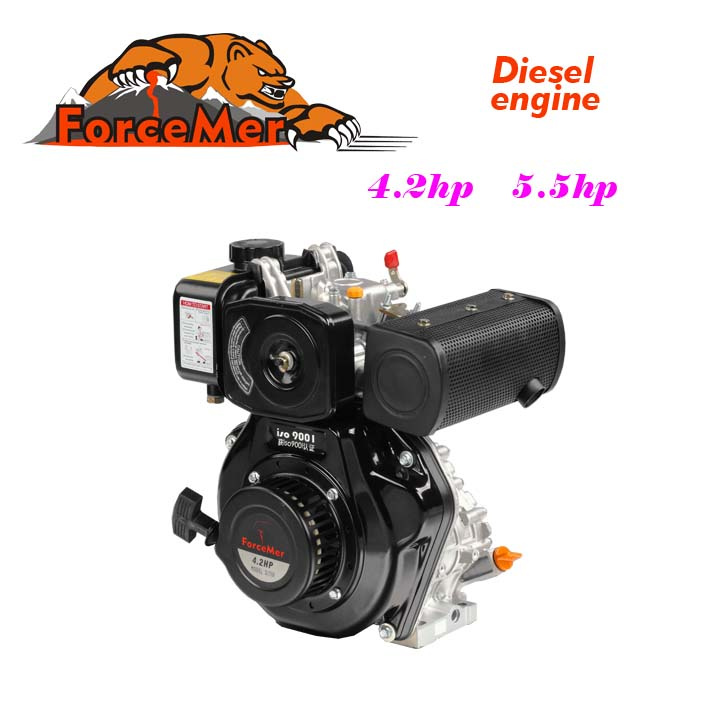

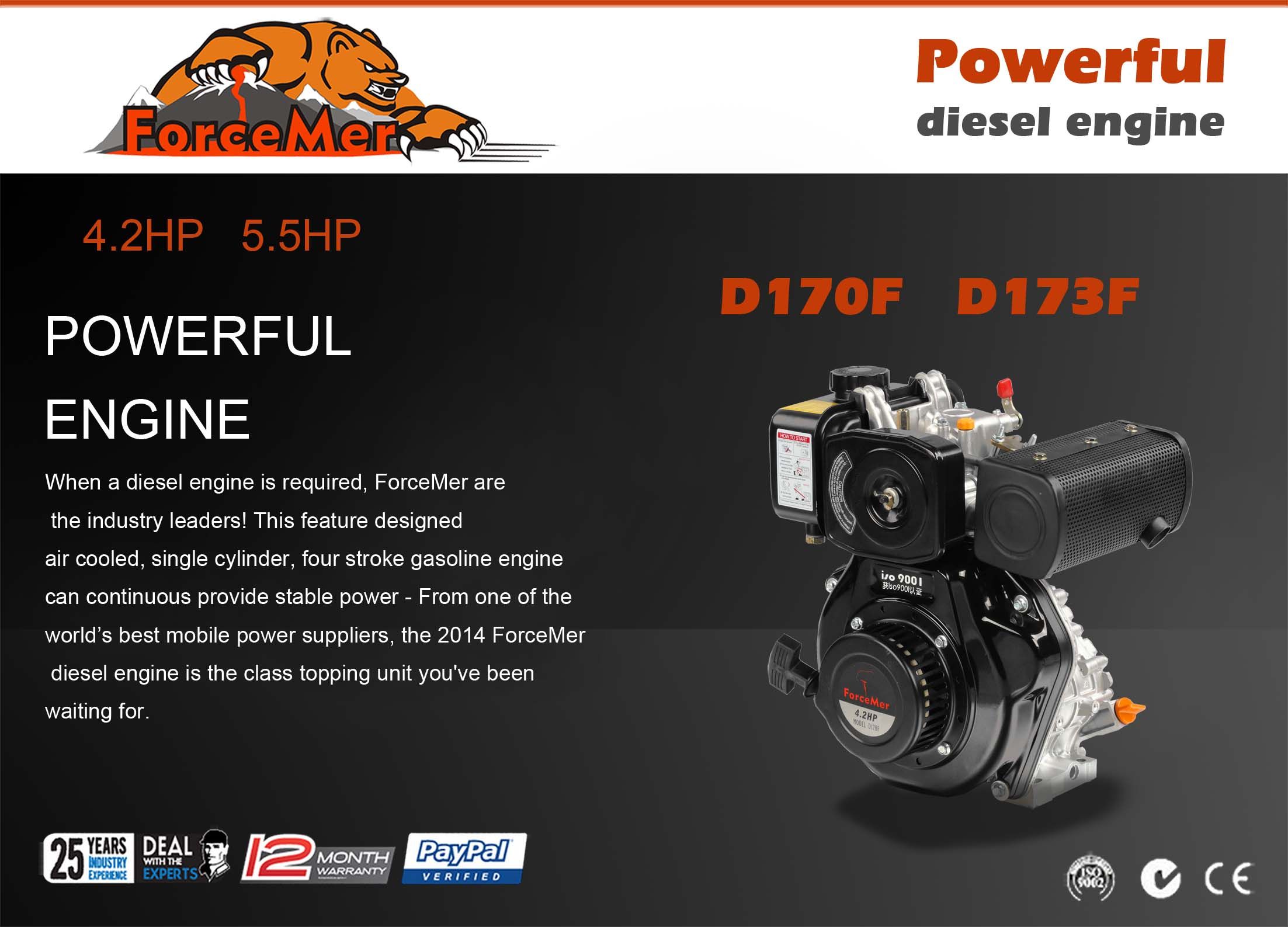

Air Cooled, Single Cylinder, Four Stroke Diesel Engine (D170F/D173F)

Air Cooled, Single Cylinder, Four Stroke Diesel Engine (D170F/D173F)
Supplier: Ningbo Spark Motors Ltd.
Price: Negotiable/Piece
Min Order: 50/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: D170F/D173F
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Output: 4.2HP / 5.5HP

Product Description


Single-cylinder, vertical, 4-stroke, air-cooled, dierect-injection diesel
Semi-dry oil bath dual double silent and cyclone type air cleaner
Enough and continuous power output
Model D170F D173F D178F D186F D186FA D188F D190F
Engine type Singer-cylinder,vertical,4-stroke air- cooled diesel engine
Combustion system Direct injection
Bore*stroke(mm) 70×55 73×59 78×62 86×70 86×72 88×75 90×75
Displacement capacity(cc) 211 247 296 406 418 456 477
Compression Ratio 20:1 19:1
Speed(rpm) 3000 3600 3000 3600 3000 3600 3000 3600 3000 3600 3000 3600 3000 3600
Rated output(hp) 3.8 4.2 5.2 5.5 6.4 7 9.0 10.0 9.0 10.0 10.0 11.0 11.8 13.0
Lube oil volume(L) 0.75 1.1 1.65
Fueltype 0#or-10# light diesel oil
Fuel oil tank volume(L) 2.5 3.5 5.5
Fuel consumption rate(g/kw.h) ≤290 ≤295 ≤290 ≤295 ≤285 ≤290 ≤285 ≤290 ≤280 ≤285 ≤280 ≤285 ≤280 ≤285
Starting system Recoil or Electric
Dimension 420×440×460 460×440×550 500×455×550 500×455×550
Net weight(kg) 25 28 33 45 45 45 45
Rough weight(kg) 30 30 35 48 48 48 48
Ningbo  Spark  Motor  Ltd  Was  A  Joint-venture  Company  Established  By  L&L  International  Limited  (New  Zeeland)  And  Chinese  Party  In  2005,   And  Changed  Into  Private  Company  In  2008.   It  Is  An  Export-oriented  Manufacturing  Company  Specialized  In  Diesel/Gasoline  Engine,   Generator,   Water  Pump,   High  Pressure  Washer,   Light  Construction  Machinery  And  Garden  Machinery.   Our  Products  Enjoy  A  Good  Market  Share  In  Europe  And  Oceania  Such  As  Germany,   France,   Italy,   Spain,   Netherland,   Australia,   New  Zealand  etc.

Ningbo  Spark  Motor  Ltd  Possess  CE  Certificate,   GS  Certificate,   NRMM, 1  Patent  For  Invention,   1  Patent  For  Utility  Model  And  5  Patents  For  Appearance  Design,   Meanwhile  The  Production  And  Management  Are  Strictly  Complied  With  ISO9001.

We  Have  One-year  Warranty  For  All  Products  And  Good  After  Sales  Services.   In  The  Aim  Of  Better  Service  And  Support  For  Our  Customers,   We' Ve  Opened  3  Sales  Offices  Separately  In  Budapest  Hungary,   Benin  Africa,   San  Francisco  USA.
