Product Specifications
| Prod Model: |
LYD-62 R D N P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size:29*4.3*3mm: |
Groove Dimension:5.6*4.5*6.7mm |
Product Description
Key Specifications/Special Features:
Why choose us:
As one of the largest magnetic sensor maker in China, we will help you to cut down cost
More professional with 10 years experience with annual production reaching 1500000pieces.
We provide good packing and short delivery time
We offer better after-sales services
Products details:

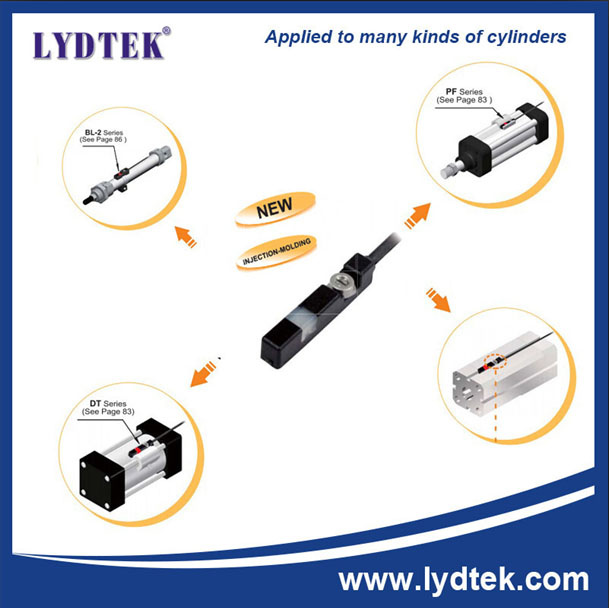

Quality: Be applied to high standard pneumatic cylinder: Airtac, Chelic, Chanto, Mindman.
Ability: Our R & D team set up in Taiwan, has the ability to receive OEM and ODM orders for customers. Also can design and manufacture the magnetic sensor for you with world class technology Primary Competitive Advantages:
Brand-name Parts
Distributorships Offered
Experienced Staff
Price
Quality Approvals
| Model(Characteristics) | LYD-62R | LYD-62N | LYD-62D | LYD-62P |
| Wiring Method | 2-Wire Type | 3-Wire Type |
| Switching Logic | SPST Nomally Open | Solid State Output,Normally Open | SPST Normally OPEN |
| Sensor Type | Reed Switch | NPN Current Sinking | PNP Current Sourcing | Reed Switch |
| Operating Voltage | 5-240V DC/AC | 10-30V DC | 10-30V DC/AC |
| Switching Current | 100mA max. | 500mA.max. |
| Contact Rating | 10W max. | 3w max. | 10W max. |
| Current Consumption | - | 8mA@24V DC max. | 10mA@24V DC max. |
| Voltage Drop | 3.5V max. | 1.5V max. | 0.1v@200mA max |
| Leakage Current | - | 0.01mA max. | - |
| Indicator | Red LED | Yellow LED |
| Operating Frequency | 200HZ | 1000HZ | 200HZ |
| Magnet Requirement(Note2) | 50Gauss | 45Gauss |
| Shock(Note3) | 30G | 50G | 30G |
| Temperature Range | -10~70 |
|
| NOTE:1.Can not over contact capacity(P=V×1). |
|
| 2.Measuring standard target:Φ15.5×Φ8×5t(Anisotropy Rubber Magnet). |
|
| 3.Sin Wave/X.Y.Z 3 Directions/3 Times Each Direction/11ms Each Time. |
|
LIYIDA SENSOR THCH. Co., Ltd is famous manufacturer of magnetic sensors more than ten years in China. It specializes in the development, manufacture and distribution of various switch components by magnetic induction.
We always uphold the principles of excellent professionalism, best credibility and consummate services. In the past ten years, we have always been doing our utmost to develop and research the production of switches by magnetic induction. The main technologies from the purchase of material and parts to the manufacture of finished products are introduced from Taiwan, Japan and Germany.
Trough unceasing efforts in the technology field of switch components, and by learning constantly from developed counties like Europe, America and Japan etc, our products have found a good sell in overseas countries and areas. Furthermore, all products of our company have passed the inspection and recognition of CE and China 3C. We insist that excellent quality should go hand in hand with professional services, and we plan to carry out the ISO9001 quality authentication system. Our company has a satisfactory variety of goods. We now have the series of REED SW and MR and can develop and produce new products according to customers' requirements.
Looking forward to the future, Liyida Electric Technology and Science Co., Ltd will continue to uphold the belief of customer first. We are willing to become your supplier of low-cost high quality goods and grow together with you!
