Product Specifications
Prod Model: |
PPS550 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Filter Media: |
PPS Rtyon Filter Felt |
Working Temperature: |
190c-204 C |
Application: |
Dust Filtration for Coal Fired Boiler |
Usage: |
Air Filter |
Material: |
Non-woven |
Filtration Grade: |
Medium Filter |
Medium Material: |
Synthetic Fiber |
Type: |
Pocket Filter |
Product Description

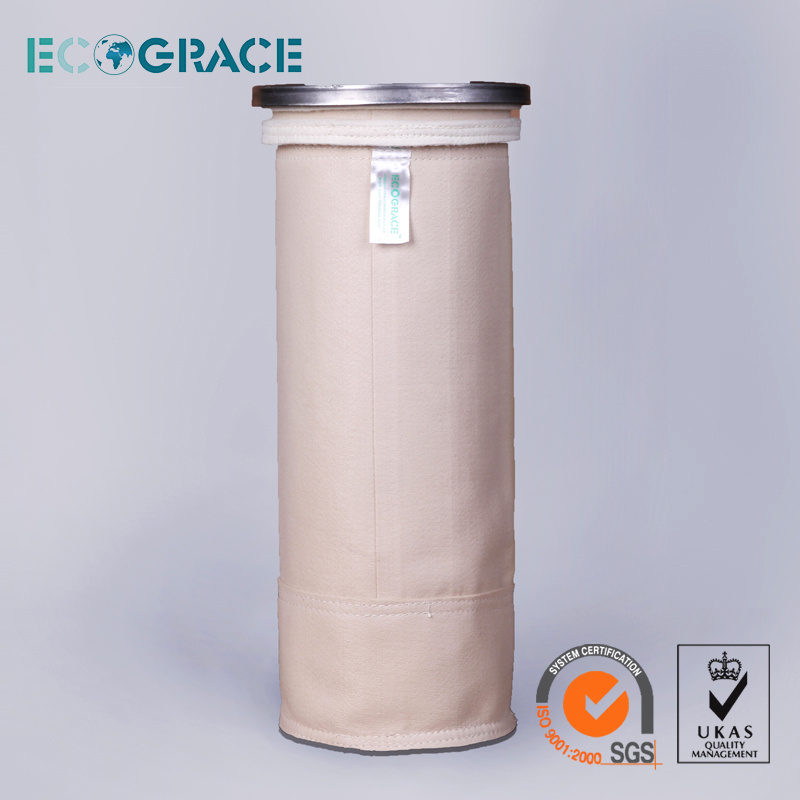

Air Filtration Dust Collector PPS Bag Filter
PPS (Ryton) Filter Bags(Polyphenylene Sulfide)
Application:
PPS (Ryton) Filter Bags are widely used in coal-fired boilers, waste incinerators, coking furnaces, kiln furnaces, chemical dry process of flue gas cleaning processes, also using, carbon black, powder collection, pneumatic conveying, cement industry, and more. When due to chemical attack and hydrolysis causes, Aramid cannot be used, PPS (Ryton) Filter Bag can be substituted.
Performance:
Continuous gas continuous temperature is up to 160° C, instant heat resistant up to 200° C
Chemical structure is simple, strong and stable
Excellent performance of acid and alkali resistance!
Excellent hydrolysis resistance capability, and strong chemical stability
Good flame retardant and excellent heat resistance function
Disadvantage is that antioxidant performance of PPS (Ryton) Filter Bag is poor, it reacts to oxidation-corrosion. It is suitable for gas with O2 composition < 10%
Series: |
PPS550gsm |
Material: |
PPS (RYTON) 450 - 650g/sq. m needle felt |
Fibre: |
100% PPS / RYTON staple fibre (Toray / Toyobo, Japan original fibre, or Chinese fibre available) |
Scrim: |
100% PPS / RYTON staple fibre (Toray / Toyobo, Japan original fibre, or Chinese fibre available) |
Weight: |
400 - 650g/m2 (customized) |
Finishing: |
Heat setting, single side singeing, calendering (double sides finishing would be available upon request) |
Specifications: |
Customized according to drawing / sample |
Packaging: |
Polybag in cartons |
Applications: |
Coal-fired power plant, waste incinteration plant, circulating fluidized bed boilers, etc. |
Delivery Time: |
7-45 days |
Payment Terms: |
|
|
Operating Temperature (° C, dry) |
Abrasion Resistance |
Hydrolysis Resistance |
Alkali Resistance |
Organic Acid Resistance |
Mineral Acid Resistance |
Oxidation Resistance (15%) |
PPS |
190/ (200) |
Good |
Excellent |
Excellent |
Excellent |
Excellent |
Poor |
